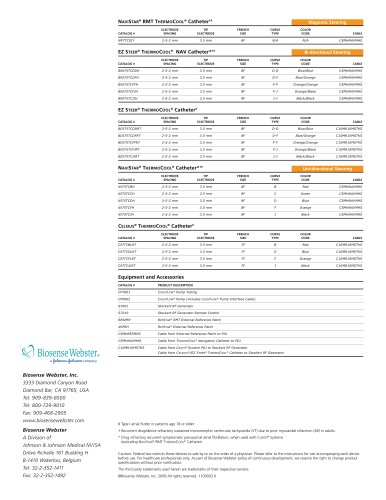

ThermoCool® Catheters - 4 Pages

NaviStar® RMT ThermoCool® Catheter†#

Magnetic Steering


Catalog #

Electrode
Spacing

Tip
Electrode

French
Size

Curve
Type

Color
Code

NR7TCSIY

2-5-2 mm

3.5 mm

8F

N/A

N/A

Color
Code

EZ Steer® ThermoCool® NAV Catheter*†#

Cable
C5MHNAVMHS

Bi-directional Steering


Catalog #

Electrode
Spacing

Tip
Electrode

French
Size

Curve
Type

BNI75TCDDH

2-5-2 mm

3.5 mm

8F

D-D

Blue/Blue

Cable
C5MHNAVMHS

BNI75TCDFH

2-5-2 mm

3.5 mm

8F

D-F

Blue/Orange

C5MHNAVMHS

BNI75TCFFH

2-5-2 mm

3.5 mm

8F

F-F

Orange/Orange

C5MHNAVMHS

BNI75TCFJH

2-5-2 mm

3.5 mm

8F

F-J

Orange/Black

C5MHNAVMHS

BNI75TCJJH

2-5-2 mm

3.5 mm

8F

J-J

Black/Black

C5MHNAVMHS

EZ Steer® ThermoCool® Catheter#

Catalog #

Electrode
Spacing

Tip
Electrode

French
Size

Curve
Type

BDI75TCDDRT

2-5-2 mm

3.5 mm

8F

D-D

Color
Code
Blue/Blue

Cable
C10MR10MSTKS

BDI75TCDFRT

2-5-2 mm

3.5 mm

8F

D-F

Blue/Orange

C10MR10MSTKS

BDI75TCFFRT

2-5-2 mm

3.5 mm

8F

F-F

Orange/Orange

C10MR10MSTKS

BDI75TCFJRT

2-5-2 mm

3.5 mm

8F

F-J

Orange/Black

C10MR10MSTKS

BDI75TCJJRT

2-5-2 mm

3.5 mm

8F

J-J

Black/Black

C10MR10MSTKS

Color
Code

Cable
C5MHNAVMHS

NaviStar® ThermoCool® Catheter*†#

Uni-directional Steering


Catalog #

Electrode
Spacing

Tip
Electrode

French
Size

Curve
Type

NI75TCBH

2-5-2 mm

3.5 mm

8F

B

Red

NI75TCCH

2-5-2 mm

3.5 mm

8F

C

Green

C5MHNAVMHS

NI75TCDH

2-5-2 mm

3.5 mm

8F

D

Blue

C5MHNAVMHS

NI75TCFH

2-5-2 mm

3.5 mm

8F

F

Orange

C5MHNAVMHS

NI75TCJH

2-5-2 mm

3.5 mm

8F

J

Black

C5MHNAVMHS

Celsius® ThermoCool® Catheter#

Catalog #

Electrode
Spacing

Tip
Electrode

French
Size

Curve
Color
Type code

DI7TCBLRT

2-5-2 mm

3.5 mm

7F

B

Red

Cable
C10MR10MSTKS

DI7TCDLRT

2-5-2 mm

3.5 mm

7F

D

Blue

C10MR10MSTKS

DI7TCFLRT

2-5-2 mm

3.5 mm

7F

F

Orange

C10MR10MSTKS

DI7TCJLRT

2-5-2 mm

3.5 mm

7F

J

Black

C10MR10MSTKS

Equipment and Accessories
Catalog #

Product Description

CFT001

CoolFlow® Pump Tubing

CFP002

CoolFlow® Pump (includes CoolFlow® Pump Interface Cable)

S7001

Stockert RF Generator

S7019

Stockert RF Generator Remote Control

RR6PNY

RefStar® RMT External Reference Patch

XRP6H

RefStar® External Reference Patch

C5MHREFMHS

Cable from External Reference Patch to PIU

C5MHNAVMHS

Cable from ThermoCool® Navigation Catheter to PIU

C10MR10MSTKS
Cable from Carto® System PIU to Stockert RF Generator
Cable from Celsius®/EZ Steer® ThermoCool® Catheter to Stockert RF Generator

Biosense Webster, Inc.
3333 Diamond Canyon Road
Diamond Bar, CA 91765, USA
Tel: 909-839-8500
Tel: 800-729-9010
Fax: 909-468-2905
www.biosensewebster.com
Biosense Webster
A Division of
Johnson & Johnson Medical NV/SA
Drève Richelle 161 Building H
B-1410 Waterloo, Belgium
Tel: 32-2-352-1411
Fax: 32-2-352-1492

# Type I atrial flutter in patients age 18 or older.
† Recurrent drug/device refractory sustained monomorphic ventricular tachycardia (VT) due to prior myocardial infarction (MI) in adults.

* Drug refractory recurrent symptomatic paroxysmal atrial fibrillation, when used with Carto® Systems

(excluding NaviStar® RMT ThermoCool® Catheter).
Caution: Federal law restricts these devices to sale by or on the order of a physician. Please refer to the instructions for use accompanying each device
before use. For healthcare professionals only. As part of Biosense Webster policy of continuous development, we reserve the right to change product
specifications without prior notification.
The third party trademarks used herein are trademarks of their respective owners.
©Biosense Webster, Inc. 2009 All rights reserved. 1109003.0
