HS-5000 - 2 Pages

  1. P. 1

  2. P. 2

Catalogue excerpts

SPECIFICATION SLIT ILLUMINATION Slit Length (mm) 0.3~12 continuous Slit Width (mm) 0 ~12 continuous Slit Projection 1x Aperture Diaphragms 12.5x Cobalt Blue, Red-Free, Grey, DIGITAL CAMERA Heat Absorption and Yellow Image Sensor Slit Rotation 0 ~180 continuous Image Size up to 1,388 x 1,036 pixels Revolutionary optical design Angle of Incidence 0 , 5 , 10 , 15 , 20 Cell Size 4.65 m x 4.65 m HS-5000 Patient’s Eye/Prism Surface Working Distance 80mm Resolution Depth 8bit or 12bit Raw RGB, YUV 4 : 2 : 2 Transmit Method IEEE 1394 (6pin) Transmit Speed 400Mbps Cutting-edge optical technology assures both high resolution and a wide field of view with the five-step magnification control. Various filters tailored for the most common diagnostics that aid in accurate assessment. MICROSCOPE Frame Rate 15fps, 7.5fps, 3.75fps Filters 1/2” Interline CCD HS 5000 5x Lens Mount C-Mount Type Galilean Converging Binocular Photographing External Trigger or Software Trigger Magnification 5 Position Rotating Drum Dimension 44mm (W) x 29mm (H) x 63mm (D) Eyepieces 12.5x Power Consumption less than 3W(12V DC, from IEEE 1394 Cable) Total Magnifications 6x, 10x, 16x, 25x, 40x Real Fields of View (mm) 38.5, 22.2, 15.2, 10.5, 6.7 Interpupilary Adjustment 55mm~80mm Microscope RECOMMENDED COMPUTER SYSTEM CPU Pentium IV, 2GHz Memory 512MB (over 1GB recommended) Video Card ATI Radeon 9200 (128MB) or similar System Comprehensive Image Management BASE HIS-5000 Vertical Movement 28mm Longitudinal Movement 78mm Microsoft Windows NT (with Service Pack 6) Windows 2000 (with Service Pack 4) Lateral Movement 98mm Windows XP Fine Base 10mm Power Supply Free Voltage 100~240V AC Microsoft Internet Explorer 6 (Explorer 7 recommended) Voltage Frequency 50/60Hz Power Consumption 70VA Instrument Voltage 12V DC Halogen Bulb 12V 30W Fixation Point Bulb 3.4V 20mA User-friendly interface and well-organized architecture provide quick and efficient management. Featuring comprehensive digital image processing and innovative enhancement. Transmit Method Standard IEEE1394a Firewire Port OHCI 1.1 Compatible (with auxiliary 12V power connector if connected to a laptop computer) Monitor LCD or CRT (minimum resolution 1,280 x1,024 pixels, over 1,600 x 1,200 pixels recommended) OPTION : PC, Table / COLOR : Dark Grey, Light Grey Designs and details can be changed without prior notice for the purposes of improvement. Huvitz Building 689-3, Geumjeong-dong Gunpo-si, Gyeonggi-do, 435-862, Korea Tel : + 82-31-442-8868 Fax : + 82 -31-477-8617 http : // www.huvitz.com Distributed by HS-5000 / HIS-5000 HS-5000 / HIS-5000 Huvitz Slit Lamp / Image Management System

 Open the catalogue to page 1

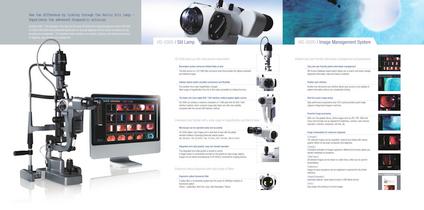

See the difference by looking through the Huvitz Slit LampExperience the advanced diagnostic solution A perfect match-The integration of the high-end Slit Lamp HS-5000 & the Image Management System HIS-5000 HS-5000 & HIS-5000 meet professional requirements for accurate diagnoses with the utmost convenience of data recording and management. The integrated system provides a new solution, satisfying multi-tasking performance for diagnosis, data recording and management. HS-5000 / Slit Lamp HS-5000 gives you the most precise observation. HIS-5000 / Image Management System Intuitive and user-friendly...

 Open the catalogue to page 2
