Specifications Diagnosis and Tumour Management System Digital Video Endoscopy - Bronchoscopy PENTAX Europe GmbH LIFE CARE Julius-Vosseler-Straße 104 22527 Hamburg Germany Tel.: +49 40 / 5 61 92 - 0 Fax: +49 40 / 5 60 42 13 E-mail: medical@pentax.de SAFE-3000/Video autofluorescence processor Type White light source 300 W Xenon Autofluorescence light source (stimulation light) Class 2 laser diode (wavelength 408 nm, laser power 20 to 40mW) Emergency lamp LED Outputs 1x RGBS (BNC), 1x composite (BNC), 2x RGBS (D-sub 9 pin), 2x Y/C, 1x DV, 3x USB Dimensions (W x H x D) • Weight 1 SAFE-30001 450 x 213 x 594 mm • 27 kg PENTAX U.K. Limited LIFE CARE Pentax House Heron Drive, Langley Slough SL3 8PN United Kingdom Tel.: +44 17 53 / 79 27 23 Fax: +44 17 53 / 79 27 94 E-mail: lifecare.sales@pentax.co.uk Autofluorescence image with dedicated AF scope only. All other K series endoscopes white light video image only. Video autofluorescence bronchoscopes 2 Type EB-1570AK EB-1970AK Angle of view (°) 120 120 Focus range (mm) 3-50 3-50 Tip deflection (°) up/down 210/130 180/130 Insertion tube diameter (mm) 5.1 6.2 Distal end diameter (mm) 5.5 6.3 Instrument channel diameter (mm) 2.0 2.8 Working length (mm) 600 600 PENTAX Nederland B.V. LIFE CARE Lage Mosten 35 4822 NK Breda Netherlands Tel.: +31 76 / 5 31 30 31 Fax: +31 76 / 5 31 30 00 E-mail: lifecare@pentax.nl C an only be operated in conjunction with the SAFE-3000 video autofluorescence processor. PENTAX Italia S.r.l. LIFE CARE Via Dione Cassio, 15 20138 Milano Italy Tel.: +39 / 02 50 99 58 1 Fax: +39 / 02 50 99 58 60 E-mail: marketing.lifecare@pentaxitalia.it Video ultrasound bronchoscope Type EB-1970UK Direction of viewing field Forward oblique (45°) Angle of view (°) 100 Depth of field (mm) 3-100 Deflection up/down (°) 120/90 Insertion tube diameter (mm) 6.3 Distal end diameter (mm) 7.45 Distal end diameter US probe (mm) 6.5 x 7.0 Instrument channel diameter (mm) 2.0 Working length (mm) 600 Scanning angle (°) 75 Frequency range (MHz) 5, 6.5, 7.5, 9, 10 Scanning direction Longitudinal Scanning mode B mode/Colour Doppler/Pulse Doppler Get the complete picture S.I.M. - Sistemas Integrales de Medicina, S.A. LIFE CARE Sistema Solar 25 28830 San Fernando de Henares · Madrid Spain Tel.: +34 91 / 301 62 40 Fax: +34 91 / 751 31 15 E-mail: sim@simmedica.com Reliable diagnosis of lung cancer and advanced therapeutic decisions HOYA Corporation PENTAX Tokyo Office 2-36-9, Maeno-cho Itabashi-Ku 174-8639 Tokyo Japan Tel.: +81 33 / 9 60 51 55 Fax: +81 35 / 3 92 67 24 through integrated system technologies. LCM/01/10/08/320082/02 2 PENTAX France S.A.S. LIFE CARE 112 quai de Bezons P. B. 204 95106 Argenteuil France Tel.: +33 1 / 30 25 75 75 Fax: +33 1 / 30 25 75 76 E-mail: medical@pentax.fr 2 HOYA Corporation ISO 9001/EN ISO 13485 certified www.pentaxeurope.com 0197

Three high-performance technologies There’s definitely more to see. Discover new dimensions of diagnostic accuracy: The first integrated diagnosis and tumour management system for bronchoscopists. Early recognition and correct staging of bronchial carcinomas are imperative for making treatment decisions and estimating survival. Image quality and the right choice of technology play both a crucial role in this. The higher the image resolution, the more detailed and clear the visualisation of the area under examination is. The new integrated diagnosis and tumour management system from PENTAX...

Video autofluorescence For safety reasons. SAFE-3000. Highly reliable detection and assessment through combined video and autofluorescence bronchoscopy. The PENTAX SAFE-3000 digital video and autofluorescence technology provides highly accurate, high-resolution images of the trachea and the bronchial system. Video and autofluorescence modes can be switched at the simple push of a button and in addition, the two technologies can be combined with one another by the M.I.X. technology (Multiple Image Xposition) or displayed simultaneously (TWIN mode). As a result of its unique combination of...

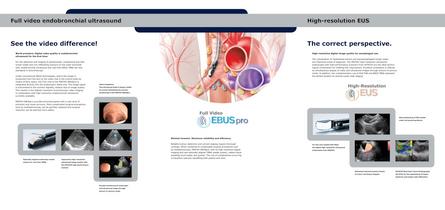

Full video endobronchial ultrasound High-resolution EUS See the video difference! The correct perspective. World premiere: Digital video quality in endobronchial ultrasound for the first time. High-resolution digital image quality for oesophageal use. The visualisation of mediastinal lesions and paraoesophageal lymph nodes are important areas of diagnosis. The PENTAX high-resolution ultrasound endoscopes with high-performance scanners from HITACHI are the ideal technological combination for fulfilling this requirement. Excellent orientation is offered by simultaneous display of video and...
