AVAS-223 - Datasheet

AVAS-223 - Datasheet

Product catalog summary

Introduction
AVAS-223 is a zero-latency SDVoE encoder/decoder designed for high-quality audio and video transmission in healthcare applications. It supports 4Kp60 images and integrates various signals over an IP network. The device offers an open API and SDK for software development and integration, ensuring seamless and secure video streaming solutions.

Features

SDVoE technology with dual link 10Gx2 bandwidth for true 4K video.
Uncompressed 4Kp60 RGB 444 in genlock mode.
Ultra-low latency video, audio, and USB transmission over IP.
Thumbnail image preview on controller AP and remote web control for video dispatching.
Windows-based open SDK/API with user-friendly demo AP.

Specifications

Video: Input and output resolution up to 4Kp60 UHD, RGB 444, uncompressed video. MultiView layout options include Picture-in-Picture, Side-by-Side, Quad view, 1+3 bottom, and 1+3 right.
Audio: Analog audio in/out.
Network: 10G x2 bandwidth with SFP+ x2 cabling.
I/O: HDMI In/Out, audio in/out, USB device and host connectors, grounding, DC input, and status LEDs.
Certification: FCC, UL 60601, CE EN60601, CB EN60601.
Environment: Operating temperature 0 °C to +40 °C, storage temperature -10 °C to +50 °C.
Physical Characteristics: Dimensions 168 x 136.3 x 30 mm, weight 0.85 kg, VESA mount 75 x 75 mm.

Ordering Information

AVAS-223-THA0-D00: Medical Grade 4Kp60 Video Encoder.
AVAS-223-RHA1-D00: Medical Grade 4Kp60 Video Decoder.
Optional power cords available for Europe, USA, and UK.

Packing List

AVAS-223 Medical Grade 4Kp60 Video Encoder/Decoder.
XAVAS-HPU32A-105 Adaptor 100-240V 30W 12V DC Jack.

Catalog excerpts

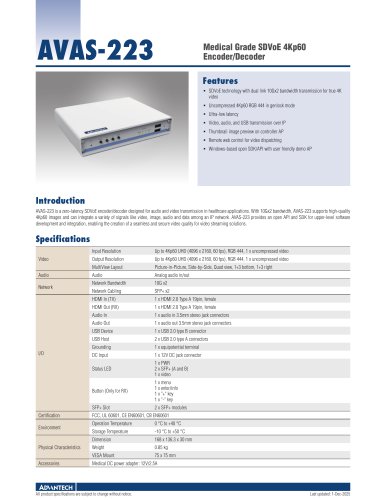

Features ■ SDVoE technology with dual link 10Gx2 bandwidth transmission for true 4K video ■ Uncompressed 4Kp60 RGB 444 in genlock mode ■ Video, audio, and USB transmission over IP ■ Thumbnail image preview on controller AP ■ Remote web control for video dispatching ■ Windows-based open SDK/API with user friendly demo AP AVAS-223 is a zero-latency SDVoE encoder/decoder designed for audio and video transmission in healthcare applications. With 10Gx2 bandwidth, AVAS-223 supports high-quality 4Kp60 images and can integrate a variety of signals like video, image, audio and data among an IP network. AVAS-223 provides an open API and SDK for upper-level software development and integration, enabling the creation of a seamless and secure video quality for video streaming solutions. All product specifications are subject to change without notice.

Open the catalog to page 1

Decoder Ordering Information Packing List Part Number Description Part Number Description 1702002605 Power Cord (Europe) 1.8M

Open the catalog to page 2
