HIT-512 - Datasheet

HIT-512 - Datasheet

Product catalog summary

Overview
The HIT-512 is an innovative 11.6" all-in-one healthcare information terminal designed for use in healthcare and hospitality settings. It features an ultra-slim design, powered by an Intel® Apollo Lake CPU, and supports multiple operating systems including Windows, Android, and Linux. The device is equipped with a range of connectivity options and peripherals, making it suitable for various applications such as nurse calls and bedside information terminals.

Key Features

All-in-one computer with Intel® Apollo Lake CPU.
IP65 rated front panel for protection against dust and water.
Supports M.2 2230 WiFi/BT modules and M.2 2242 SSDs.
Optional peripherals include RFID/NFC, web camera, smart card reader, and more.
Dual certification for medical and ITE applications.
DeviceOn/iService software for remote device management.

Specifications

CPU: Intel® Apollo Lake J3455, up to 2.3 GHz.
Memory: Up to 8GB DDR3L.
Storage: Default 64GB M.2 2242 SSD.
Display: 11.6" W TFT LED, 1366 x 768 resolution.
Network: LAN, Bluetooth 4.1, WLAN 802.11 a/b/g/n/ac.
Operating Systems: Windows 10 IoT, Android 10, Linux.
Mounting: VESA 75 x 75 mm.

DeviceOn/iService Software
DeviceOn/iService is a unified remote device management solution that supports Advantech devices with Windows, Linux, or Android OS. It enables centralized monitoring, remote management, and supports OTA updates, batch operations, and integration with third-party systems via RESTful APIs.

Environmental and Compliance

Operating Temperature: 0 ~ 35 °C.
IP Rating: IP65 front panel.
Certifications: CE, FCC, CCC, EN 60601-1, ITE 62368.

Ordering Information
Various configurations are available, including options with medical or ITE adapters, web cameras, and RFID capabilities.

Additional Features
The HIT-512 supports real-time location tracking and status monitoring through Wi-Fi RTLS software, enhancing asset management and patient care efficiency.

Catalog excerpts

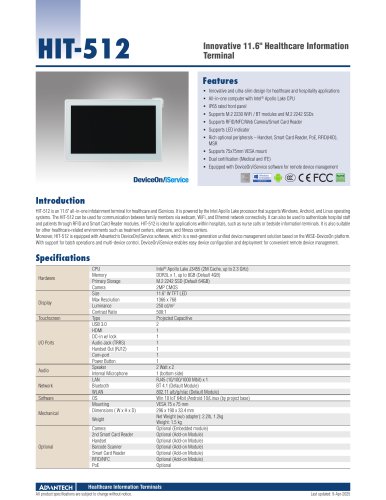

Innovative 11.6" Healthcare Information TerminalFeatures Innovative and ultra-slim design for healthcare and hospitality applications All-in-one computer with Intel® Apollo Lake CPU IP65 rated front panel Supports M.2 2230 WiFi / BT modules and M.2 2242 SSDs Supports RFID/NFC/Web Camera/Smart Card Reader Supports LED indicator Rich optional peripherals - Handset, Smart Card Reader, PoE, RFID(HID), MSR Supports 75x75mm VESA mount Dual certification (Medical and ITE) Equipped with DeviceOn/iService software for remote device management Introduction HIT-512 is an 11.6" all-in-one infotainment terminal for healthcare and iServices. It is powered by the Intel Apollo Lake processor that supports Windows, Android, and Linux operating systems. The HIT-512 can be used for communication between family members via webcam, WiFi, and Ethernet network connectivity. It can also be used to authenticate hospital staff and patients through RFID and Smart Card Reader modules. HIT-512 is ideal for applications within hospitals, such as nurse calls or bedside information terminals. It is also suitable for other healthcare-related environments such as treatment centers, eldercare, and fitness centers. Moreover, HIT-512 is equipped with Advantech’s DeviceOn/iService software, which is a next-generation unified device management solution based on the WISE-DeviceOn platform. With support for batch operations and multi-device control, DeviceOn/iService enables easy device configuration and deployment for convenient remote device management. Adwntech Healthcare Information Terminals All product specifications are subject to change without notice.

Open the catalog to page 1

Specifications (Cont.) Note: DeviceOn/iService software must be downloaded from the Advantech website at https://www.advantech.com/search/?q=DeviceOn%2FiService&st=support&sst=Utility Online Download

Open the catalog to page 2

Ordering Information B. Audio jack (TRRS) Adnantech Healthcare Information Terminals

Open the catalog to page 3

Device real-time location software Software Add-ons Seamlessly connect your edge computing devices into the RTLS system Advantech Wi-Fi RTLS infra-free software enables immediate location tracking and status monitoring of devices. RTLS contributes to asset management, improves patient care efficiency, and ensures equipment is used sustainably. It also supports compliance with health and safety regulations. Nursing cart tracking Managing geo-fences Visualizing assets usage data Better hospital asset/device management Deploy Faster “Cl o building Wi-Fi RTLS is a perfect fit for edge computing devices....

Open the catalog to page 4

Unified Remote Device Management Software Features Supports Advantech devices equipped with Windows, Android, and Linux OS Flexible device, location, user, and permissions management Enables remote monitoring and control of hardware, software, and peripherals Supports over-the-air (OTA) firmware and software updates Ensures quick, easy, and secure device onboarding RESTful APIs for third-party system integration Introduction Advantech’s DeviceOn/iService is a next-generation unified device management solution based on the WISE-DeviceOn platform. Designed to enable centralized monitoring and remote...

Open the catalog to page 5
