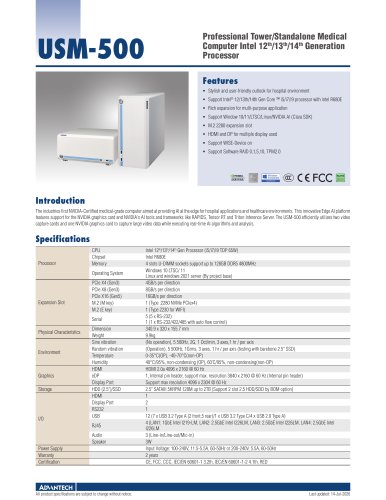

USM-500 - Datasheet

USM-500 - Datasheet

Product catalog summary

Introduction
The USM-500 is a cutting-edge, NVIDIA-Certified medical-grade computer designed for AI applications in healthcare environments. It supports NVIDIA graphics cards and AI tools, enabling real-time AI algorithms and analysis with video capture capabilities.

Specifications

Processor: Supports Intel 12th/13th/14th Gen Core i5/i7/i9 processors with Intel R680E chipset.
Memory: Up to 128GB DDR5 4800MHz across 4 U-DIMM slots.
Operating System: Compatible with Windows 10/11, Linux, and Windows 2021 server.
Expansion Slots: Includes PCIe X4, X8, X16, and M.2 slots for various applications.
Graphics: HDMI 2.0a, eDP, and Display Port support high resolutions up to 4096 x 2304 @ 60 Hz.
Storage: Supports up to 2TB HDD/SSD with 2.5" SATAIII slots.
I/O Ports: Includes HDMI, Display Port, RS232, 12 USB ports, 4 RJ45 LAN ports, and audio jacks.
Power Supply: 100-240V input voltage with a 900W PSU.
Environmental Conditions: Operates between 0-35°C and withstands humidity up to 95% non-condensing.
Certification: CE, FCC, CCC, IEC/EN 60601-1, and RoHS compliant.

Component Offerings

CPUs: Various Intel Core i5/i7/i9 models across 12th to 14th generations.
Storage: Options for 2.5" SATA SSDs and M.2 SSDs with capacities ranging from 256GB to 2TB.
Graphics Cards: Includes Quadro RTX and RTX PRO series with varying memory capacities.
WiFi Kits: Wi-Fi 6 modules with Bluetooth support.

Order Information
Standard models and CTOS services are available, with configurations including different CPUs, memory, and storage options.

Catalog excerpts

Professional Tower/Standalone Medical Computer Intel 12th/13th/14th Generation ProcessorFeatures ■ Stylish and user-friendly outlook for hospital environment ■ Support Intel® 12/13th/14th Gen Core ™ i5/i7/i9 processor with intel R680E ■ Rich expansion for multi-purpose application ■ Support Window 10/11/LTSC/Linux/NVIDIA Al (Clara SDK) ■ HDMI and DP for multiple display used ■ Support Software RAID 0,1,5,10, TPM2.0 C€ FCCIntroduction The industries first NVIDIA-Certified medical-grade computer aimed at providing AI at the edge for hospital applications and healthcare environments. This innovative Edge AI platform features support for the NVIDIA graphics card and NVIDIA's AI tools and frameworks like RAPIDS, Tensor RT and Triton Inference Server. The USM-500 efficiently utilizes two video capture cards and one NVIDIA graphics card to capture large video data while executing real-time AI algorithms and analysis. All product specifications are subject to change without notice.

Open the catalog to page 1

500 barebone includes 2 SATA cable/ power cable(for HDD and SSD) , screw for HDD and M.2 device. Preliminary part number will be changed according to the latest status.

Open the catalog to page 2

Component Offerings Capture card Part Number Description EWM-W165M201E Wi-Fi 6 + BT Module 2.4/5/6GHz M.2 2230 No.Vpro

Open the catalog to page 3
