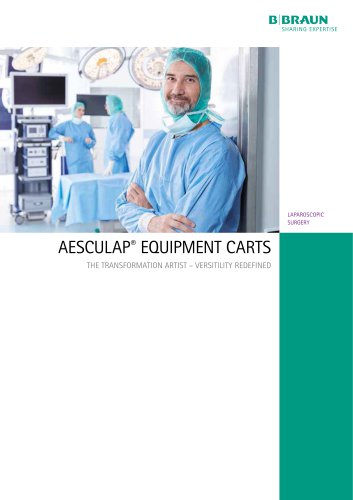

LAPAROSCOPIC SURGERY AESCULAP® EQUIPMENT CARTS THE TRANSFORMATION ARTIST – VERSITILITY REDEFINED

■ Available in narrow and wide equipment cart versions ■ Convenient cable management in the rear panel ■ Solution for individual clinical requirements ■ Isolating transformers as efficient safety features ■ Wide range of accessories

A wide range of accessory parts can be mounted on the new Aesculap® equipment carts. The equipment carts are suitable for many surgical conditions with the appropriate accessory, which can be upgraded at any time. PV823 Infusion bottle holder PV826 Camera holding device for 2D camera head PV636 EV3.0 camera head holder PV827 Foot switch holder PV824 Clamp for standard rail PV839 Cable clamp for fixation of camera cables PV836 Additional lateral plate 330 x 330 mm PV801 Shelf narrow with screws for PV800 without fig. PV811 Shelf wide with screws for PV810 PV838 Twin caster kit with cable rollover...

POWER SUPPLY AND ACCESSORIES PV803 Crossbar narrow for central monitor arms Crossbar wide for central monitor arms Power distributor with counterweightplate Power distributor with counterweight for Japan/USA Isolating transformer 2200 VA, 230 V with ISO guard Extension for central monitor arm PV831/PV832 Lateral height-adjustable montior arm, load range 5-8 kg Lateral height-adjustable montior arm with extension, load range 5-8.5 kg Lateral double joint arm for additional monitor, load range 1-18 kg PV790 Mains cord orange Euro-Plug Type E/F PV791 Mains cord orange Type K PV792 Mains cord orange...

Illustraton: PV810, basic cart wide Illustraton: PV800, narrow cart with accessories ■ Four tableaus, three of them are height-adjustable and one tableau with corner push handles on the front ■ Drawer with lock ■ Four anti-static twin castors with wall guards, all lockable (diameter 125 mm) ■ Integrated cable channels in the columns ■ Double upper and lower lockable rear wall with two power strips each with six cold-device plugs ■ Upper rear wall with integrated cable outlet on each side ■ Lateral main switch Utility space tableau: 450 mm x 485 mm (W x D) POAG Connections: 8 equipotential bonding...
