Gas compressor and clean O2 and inert gases

Product catalog summary

Overview: Air-Products SRL, based in Argentina, has expanded its portfolio to include the OX series compressors, designed for a wide range of applications. These compressors are oil-free, completely dry, and suitable for compressing flammable and inert gases.

Specifications:

The OX series features a four-stage star design with a single effect, good mass balance, W arrangement, compact design, and efficient cooling.
Pressure range: 150 to 200 bar.
Volume: 20 to 44 Nm3/h as per ISO 1217.
Motor power: 15 KW with a 100% duty cycle.
Energy-saving piston compressors with long service lives and premium IE4 efficiency electric motors.
Coolers are made from high-quality materials with a large exchange surface for effective cooling.
Maximum ambient temperature: 45°C.
Inlet filter system with 99.9% efficiency in heavy-duty environments.

Models:

OX 1000 Model: Maximum pressure of 150 bar, suction pressure of 0.5 to 2.2 bar, piston speed of 0.72 m/sec, discharge temperature of 30°C, and a sound level of 80 dBA.
OX 1000 Plus Model: Maximum pressure of 200 bar, similar specifications to the OX 1000 model.

Additional Features:

Both models include a command board, have a size of 1200 x 850 x 1350 mm, and weigh 550 kg.
Gas inlet and outlet sizes are 1’’ NPT and 3/8’’ NPT respectively.

Contact Information: Air Products SRL is located in Avellaneda, Buenos Aires, Argentina. For more information, visit their website or contact them via email.

Catalog excerpts

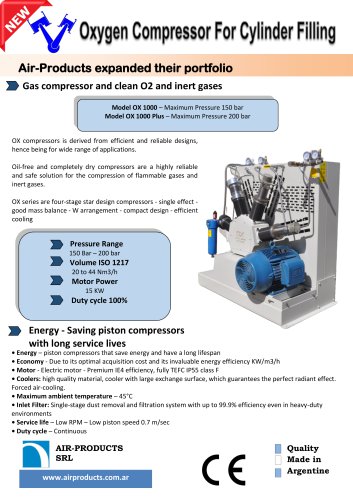

Gas compressor and clean O2 and inert gases-1

xygen Compressor For Cylinder FillingAir-Products expanded their portfolio53 Gas compressor and clean O2 and inert gases ( \ Model OX 1000 - Maximum Pressure 150 bar Model OX 1000 Plus - Maximum Pressure 200 bar OX compressors is derived from efficient and reliable designs, hence being for wide range of applications. Oil-free and completely dry compressors are a highly reliable and safe solution for the compression of flammable gases and inert gases. OX series are four-stage star design compressors - single effect -good mass balance - W arrangement - compact design - efficient cooling Pressure Range 3 Volume ISO 1217 20 to 44 Nm3/h Motor Power 15 KW • Energy - piston compressors that save energy and have a long lifespan • Economy - Due to its optimal acquisition cost and its invaluable energy efficiency KW/m3/h • Motor - Electric motor - Premium IE4 efficiency, fully TEFC IP55 class F • Coolers: high quality material, cooler with large exchange surface, which guarantees the perfect radiant effect. Forced air-cooling. • Maximum ambient temperature - 45°C • Inlet Filter: Single-stage dust removal and filtration system with up to 99.9% efficiency even in heavy-duty environments • Service life - Low RPM - Low piston speed 0.7 m/sec • Duty cycle - Continuous

Open the catalog to page 1

Gas compressor and clean O2 and inert gases-2

*Other voltages consult Suction Pressure (bar) OX 1000 Plus Model *Other voltages consult Laprida 631 (1870) Avellaneda Pcia. De Buenos Aires, Argentina Tfax 00-54-11-4222-1008/4030 www.airproducts.com.ar [email protected]

Open the catalog to page 2
