OX 1000

Product catalog summary

Overview: Air-Products SRL, based in Argentina, has expanded its portfolio to include the OX series compressors, designed for a wide range of applications. These compressors are oil-free, completely dry, and suitable for compressing flammable and inert gases.

Specifications:

The OX series features a four-stage star design with a single effect, good mass balance, W arrangement, compact design, and efficient cooling.
Pressure range: 150 to 200 bar.
Volume: 20 to 44 Nm³/h as per ISO 1217.
Motor power: 15 KW with a 100% duty cycle.
Energy-saving piston compressors with long service lives and premium IE4 efficiency electric motors.
Coolers are made from high-quality materials with a large exchange surface for effective cooling.
Maximum ambient temperature: 45°C.
Inlet filter system with up to 99.9% efficiency.
Low RPM and piston speed of 0.7 m/sec for extended service life.

Models:

OX 1000 Model: Maximum pressure of 150 bar, suction pressure of 0.5 to 2.2 bar, discharge temperature of 30°C, RPM of 540, and sound level of 80 dBA.
OX 1000 Plus Model: Maximum pressure of 200 bar, suction pressure of 0.5 to 2 bar, discharge temperature of 30°C, RPM of 540, and sound level of 80 dBA.

Additional Features:

Both models include a command board, have a gas inlet of 1'' NPT, and a gas outlet of 3/8'' NPT.
Standard supply is 3 x 380V - 50Hz / 3 x 440V - 60Hz.
Dimensions for both models are 1200 x 850 x 1350 mm, with a weight of 550 kg.

Contact Information: Air Products SRL is located at Laprida 631, Avellaneda, Buenos Aires, Argentina. For inquiries, contact via phone at 00-54-11-4222-1008/4030 or email at [email protected].

Catalog excerpts

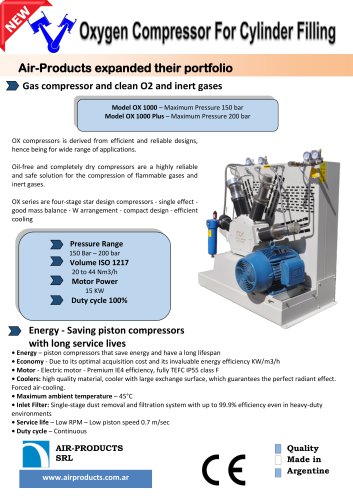

xygen Compressor For Cylinder FillingAir-Products expanded their portfolio53 Gas compressor and clean O2 and inert gases ( \ Model OX 1000 - Maximum Pressure 150 bar Model OX 1000 Plus - Maximum Pressure 200 bar OX compressors is derived from efficient and reliable designs, hence being for wide range of applications. Oil-free and completely dry compressors are a highly reliable and safe solution for the compression of flammable gases and inert gases. OX series are four-stage star design compressors - single effect -good mass balance - W arrangement - compact design - efficient cooling Pressure Range 3 Volume ISO 1217 20 to 44 Nm3/h Motor Power 15 KW • Energy - piston compressors that save energy and have a long lifespan • Economy - Due to its optimal acquisition cost and its invaluable energy efficiency KW/m3/h • Motor - Electric motor - Premium IE4 efficiency, fully TEFC IP55 class F • Coolers: high quality material, cooler with large exchange surface, which guarantees the perfect radiant effect. Forced air-cooling. • Maximum ambient temperature - 45°C • Inlet Filter: Single-stage dust removal and filtration system with up to 99.9% efficiency even in heavy-duty environments • Service life - Low RPM - Low piston speed 0.7 m/sec • Duty cycle - Continuous

Open the catalog to page 1

*Other voltages consult Suction Pressure (bar) OX 1000 Plus Model *Other voltages consult Laprida 631 (1870) Avellaneda Pcia. De Buenos Aires, Argentina Tfax 00-54-11-4222-1008/4030 www.airproducts.com.ar [email protected]

Open the catalog to page 2
