Airfan Datasheet MFA0020

Product catalog summary

Technical Specifications

Flow and Pressure: Maximum pressure difference (ΔP) is 80 hPa when fully closed at 24V, and maximum flow rate (Q) is 300 l/min when fully opened at 24V.
Power Consumption: Typical power consumption is 10.0 W at 30 hPa and 30 l/min, and 19.0 W at 60 hPa.
Lifetime: The blower has a lifetime expectancy of over 35,000 hours under standard operating conditions.
Noise Levels: Noise levels are less than 50 dBa at 10 hPa, less than 61 dBa at 30 hPa, and less than 66 dBa at 60 hPa, measured with blower inlet at 1m.

Performance and Design

The blower is designed for specific integration with a patented motor cooling system, suitable for ventilators used in Home Care, BiPAP, and CPAP applications.
It features a naked turbine type and is customizable with optional wiring harnesses.

Technical Data

Voltage Supply: 24 VDC nominal, 28 VDC maximum.
Motor Type: Brushless without Hall-effect sensors.
Dimensions: Ø55 x 55 mm (Ø2.2 x 2.2 in).
Weight: 0.08 kg (approximately 0.17 lb).
Integration: Operates in any position or orientation.
Environmental Conditions: Ambient temperature range is +10 to +50°C, humidity range is 15 to 95% RH non-condensing, and atmospheric pressure range is 660 to 1060 hPa.

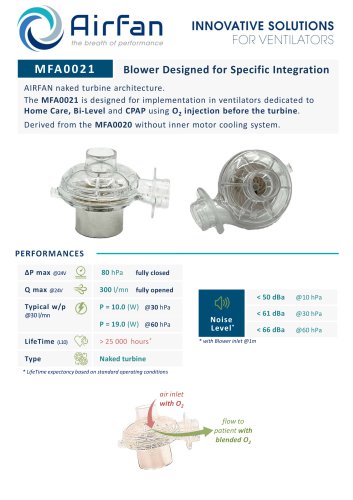

Oxygen Compatibility: Not compatible, but optional compatibility available with MFA0021, which has a lifetime of 25,000 hours.

Customization

Customization options are available upon request.

Catalog excerpts

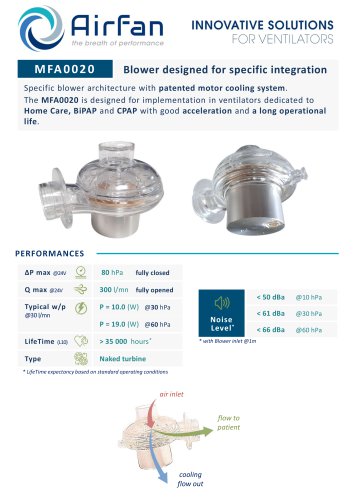

Blower designed for specific integration Specific blower architecture with patented motor cooling system. The MFA0020 is designed for implementation in ventilators dedicated to Home Care, BiPAP and CPAP with good acceleration and a long operational life. fully closed Noise Level * * with Blower inlet @1m Naked turbine * LifeTime expectancy based on standard operating conditions air inlet flow to patient

Open the catalog to page 1

TECHNICAL DATA Voltage supply Motor type Brushless without Hall-effect sensors Dimensions (casing) Atmospheric pressure Oxygen compatibility CUSTOMISATION  with or without inlet tube  Optional wiring harness  Oxygen compatibility with MFA0021 (Lifetime: 25 000 hours) All values listed are typical values with tolerance classification grade 4 according to standar

Open the catalog to page 2
