MFA0801 Datasheet

Product catalog summary

Overview: The document provides technical specifications for the AIRFAN blower model MFA0801, designed for use in medical cough assist devices. It highlights the blower's capabilities, performance metrics, and customization options.

Specifications:

Design: The blower features a patented motor cooling system and is derived from the MFA0800 model with oxygen injection before the turbine.
Performance: Capable of +95 / -85 hPa pressure at 24V, with a maximum flow rate of 700 l/min when fully opened.
Power Consumption: 15.2 W at 30 hPa and 30.4 W at 60 hPa.
Lifetime: Over 25,000 hours under standard operating conditions.
Noise Levels: Ranges from <52 dBa at 10 hPa to <72 dBa at 60 hPa, measured at 1m from the blower inlet.
Dynamic Transient Time: Less than 137 ms at 3A, 95 ms at 6A, and 82 ms at 10A.

Technical Data:

Voltage Supply: 24 VDC nominal, 27 VDC maximum.
Motor Type: Brushless with Hall-effect sensors.
Dimensions: Ø72 x 63 mm (Ø2.75 x 2.5 in).
Weight: 0.14 kg (approximately 0.3 lb).
Operating Conditions: Temperature range of +10 to +50°C, humidity from 15 to 95% RH non-condensing, and atmospheric pressure from 660 to 1060 hPa.

Customization: Wire length can be customized to 150 mm or other specifications as needed.

Additional Notes: Oxygen compatibility and lifetime are dependent on customer operating conditions. All values are typical with tolerance classification grade 4 according to ISO 13348.

Catalog excerpts

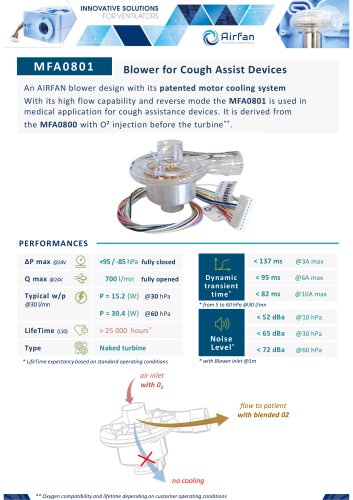

Blower for Cough Assist Devices An AIRFAN blower design with its patented motor cooling system With its high flow capability and reverse mode the MFA0801 is used in medical application for cough assistance devices. It is derived from the MFA0800 with O² injection before the turbine ** . +95 / -85 hPa fully closed Dynamic transient time * Noise Level * Naked turbine * LifeTime expectancy based on standard operating conditions * with Blower inlet @1m air inlet with 02 flow to patient with blended 02 no cooling ** Oxygen compatibility and lifetime depending on customer operating conditions

Open the catalog to page 1

TECHNICAL DATA Voltage supply Motor type Brushless with Hall-effect sensors Dimensions (casing) Atmospheric pressure Oxygen compatibility depending on customer operating conditions CUSTOMISATION  Wire Length 150 or custom All values listed are typical values with tolerance classification grade 4 according to standard ISO 13348 CUSTOMISE TO YOUR SPECIFICA

Open the catalog to page 2
