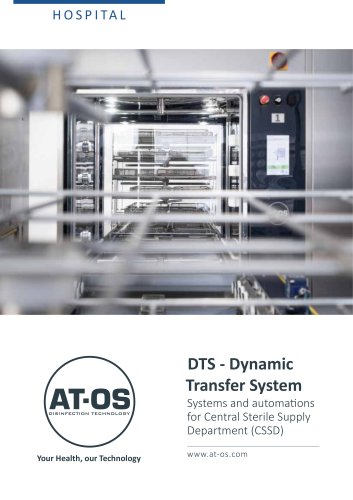

ISINFECTION TECHNOLOGYJ DTS - Dynamic Transfer System Systems and automations for Central Sterile Supply Department (CSSD) Your Health, our Technology

DTS Dynamic Transfer System ORGANIZATION AND OPTIMIZATION OF CENTRAL STERILE SUPPLY DEPARTMENT (CSSD) The innovative DTS -Dynamic Transfer System offers total automation, traceability and optimization of production processes; combined with the quality and excellent performances of the AWD655-15AD washer disinfectors, supporting up to 18 DIN basket, it represents the ideal solution for a total management of a Central Sterile Supply Department (CSSD). Thanks to its high performances, simple operation and easy maintenance, the DTS system is able to optimize the entire work flow while maintaining...

The automatic DTS system is made with configurable modules to adapt to any type of Central Sterile Supply Department (CSSD) Balanced distribution of washer disinfectors workload. Predictability and total certainty of maintenance costs. Pause/Start function to stop the shuttle to manually load a trolley into a device for urgent needs or for quick maintenance operations. The DTS system can be placed in narrow areas that are not normally accessible for loading operations using manual trolleys. Easy cleaning and maintenance of the area below the DTS system.

The automatic pass-through system allows the return of the washing trolleys from the clean area, where the trolleys are emptied from the treated instruments, to the dirty area, where the trolleys are filled again, for the next cycle of disinfection in the washer disinfectors. The shuttle carries and loads the trolley with the dirty instruments into the washer. Automatic loading module The automatic loading module transports the trolley onto the transport shuttle. The operator, using the loading trolley, pushes the trolley with the dirty tools onto the auto load module.

Washing program The machine automatically starts the specific washing program for the loaded trolley. THE OPERATION OF THE DTS SYSTEM The DTS system consists of a loading module in the dirty area which, through an automatic system of rollers, loads the trolley with the dirty instruments onto the shuttle. The shuttle, moving horizontally along the front of the washing machines, automatically loads the trolley into the first available machine. The customized washing program for the specific trolley starts automatically. Once the washing program has been correctly carried out, another shuttle is...

EFFECTIVE SOLUTIONS FOR EACH CONFIGURATION CUSTOMIZABLE DESIGN ACCORDING TO CUSTOMER NEEDS The modular solutions suggested by AT-OS allow to provide a complete and customized offer for a new or restructured project of Central Sterile Supply Department (CSSD). For each project AT-OS can provide to its customers different solutions, to be able to satisfy the specific needs in the best way. Manual loading trolley on request of the customer. In the design phase, the width of the room is an essential element in order to establish the number of washer disinfectors needed: the objective is to meet the...

The technology designed by AT-OS is able to adapt and exploit even spaces that are particularly limited in width or depth. Water and energy saving The washer disinfector can be customized to have up to 2 boilers for demineralized and hot water and one tank for cold water in order to reduce loading time and save water.

EBOX SYSTEM In a Central Sterile Supply Department (CSSD) it is essential to monitor and trace the washing cycles and all their information. The Ebox traceability system allows you to remotely monitor the running washing cycles on the washer disinfectors, manage and archive all the information from the devices on the hospital server, create graphics on cycles, alarms, consumption, and allows you to keep a file for legal documentation. Tracking of each connected device Thanks to the Ebox computerized documentation system, all the automatic devices that process the instruments are connected. For...

Washer disinfector machines Export in PDF format of information and cycle graphs Saving on hospital server Print the information of a real-time cycle or a past cycle Ebox System For each wash cycle, it records the following data: Cycle phases _3jt, Cycle type =11 Cycle temperatures [jf^ Cycle start and end date/time

The DTS system is completed with a wide range of washing trolleys up to 6 levels and with removable levels, accessories, baskets and inserts designed to meet different washing needs: • surgical and microsurgical instruments • instruments for anesthesia, ophthalmology and endoscopy • containers, trays and drawers • sanitary clogs • baby bottles and teats

RETIREMENT HOMES DRYING AND STORAGE CABINETS AT-OS SRL Viale del Lavoro, 19 - 37030 Colognola ai Colli Verona - Italy Tel (+39) 045 6159411 - Fax (+39) 045 6159422 [email protected] | www.at-os.com
