RCC-MS-GMD27G01R

Product catalog summary

Product Features
The 27" Medical Monitor is designed for high-brightness Full HD display with optional calibration mode and compliance with DIN6868-157 standards. It features an IP65 rating for the front and IPX1 for the whole unit, ensuring protection against dust and water.

Specifications

Audio: 2W speaker x2
Certifications: FCC B, IEC/EN60601-1, IEC/EN60601-1-2, UL/cUL, DIN6868-157 (optional)
Display: 27" Full HD, 1920 x 1080 resolution, 930 cd/m² luminance with AR Glass, 850 cd/m² with AG PCAP (optional), 1000:1 contrast ratio, 178° viewing angle, 14 ms response time, LED backlight
Touch Type: Optional 10-point PCAP
Input Interfaces: VGA, DVI, HDMI 2.0, DisplayPort
Power: Medical grade, 100~250 Vac input, 90W adapter output, <60W power consumption
Dimensions: 660.2 x 408.8 x 65.8 mm, 8 kg weight
Mounting: VESA 100 x 100

Mechanical & Environmental
The monitor is constructed with a metal front and plastic back, featuring a multi-language OSD for user control. It supports various color temperatures and gamma settings, with optional ambient light settings.

Optional Items
Available options include AG PCAP touch, DICOM compliance, calibration mode, and a backlight stabilizer (ALS).

Ordering Information & Packing List
Two models are available: one with AG PCAP touch and another with AR Glass. Each package includes the medical monitor, power adapter, HDMI cable, and USB touch cable (for the AG PCAP model).

Catalog excerpts

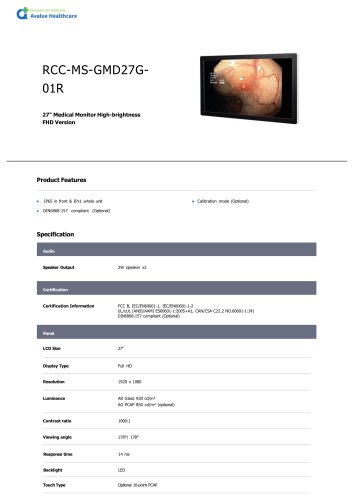

RCC-MS-GMD27G01R 27" Medical Monitor High-brightness FHD Version • IP65 in front & IPxl whole unit * Calibration mode (Optional) Speaker Output 2W speaker x2 UL/cUL (ANSI/AAMI ES60601-1:2005+A1, CAN/CSA C22.2 NO.60601-1:14) DIN6868-157 compliant (Optional) Display Type Full HD Touch Type Optional 10-point PCAP

Open the catalog to page 1

DICOM compliant Ambient light 0/0.5/1/1.5/2/2.5/3 nits (optional) User control and indicator Sensor keys multi-language OSD: contrast, brightness, auto adjust, clock, phase, color temp, hor position, ver position, input select , key lock Mechanical & Environmental Front: Metal, Back: Plastic Power Requirement Medical grade Input: 100~250 Vac, 60/50Hz Output: 90W adapter (24V/3.75A) Power Input Power consumption On:<60W; active off: <5W Power management EPA Energy Star compliant Color Mode Color temperature Calibration mode Communication protocol is ready to calibrate the monitor through USB (optional)...
