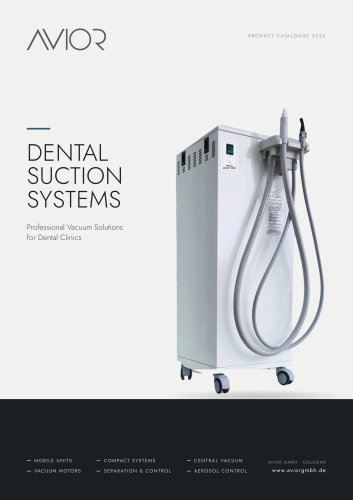

DENTAL SUCTION SYSTEMS Professional Vacuum Solutions for Dental Clinics MOBILE UNITS AEROSOL CONTROL

Clean, dry treatment fields – from the single chair to the complete clinic. AVIOR GmbH, based in Cologne, supplies equipment and furniture for dental practices, dental laboratories, medical facilities and veterinary clinics. Our dental suction range covers every installation scenario: mobile units that roll to the chair, compact systems for one to four treatment units, back-room systems for larger practices and invertercontrolled central systems for multi-chair clinics. Vacuum motors, separators, control boards and chairside accessories complete the range – for new installations as well as for...

RANGE OVERVIEW RANGE OVERVIEW MOBILE SUCTION UNITS COMPACT SUCTION SYSTEMS CENTRAL VACUUM SYSTEMS Hercules 3/4 003-3 VACUUM MOTORS & PUMPS Vacuum Motor 004-1 Pump with Cabinet 005 TREATMENT UNITS DRAINAGE PAGE Dry, mobile Dry, mobile Dry, mobile with bowl Dry, insulated cabinet Dry, open frame Semi-wet Semi-wet Dry, compact central Dry, compact central Central, inverter Vacuum motor Vacuum motor Vacuum pump in cabinet Chairside, on castors Chairside, room to room Chairside, on castors Next to the dental unit Cabinetry or plant room Location-free Compact unit Back room Back room Plant room, per...

MOBILE SUCTION UNITS MOBILE SUCTION UNITS Avior Maxi Mobile high-volume suction and surgical aspirator A U TO M AT I C D R A I N 001 A A fully mobile high-volume suction unit and surgical aspirator. Vacuum motor, air/water separation and automatic drainage are housed in one cabinet on castors that stands beside the chair. Installation needs no special tools: connect the unit to a mains socket and the waste-water line. The same mobile platform with a removable collection tank instead of a drain connection – the unit can be moved from one treatment room to another without any installation. TREATMENT...

MOBILE SUCTION UNITS MOBILE SUCTION UNITS Mobile suction unit with ceramic spittoon ART. NO. 001 B The Maxi with an integrated monoblock ceramic bowl - high-volume suction, surgical aspiration and a spittoon combined in one mobile unit. — Monoblock ceramic bowl with automatic bowl rinse — Finger-controlled glass filler and nurse call — Automatic drainage with air/water separator and drain pump — Cannula holder with two suction hoses and microswitch start — Central coarse filter for daily cleaning TECHNICAL DATA Treatment units Spittoon Bowl functions Vacuum motor Liquid suction capacity Separation...

CLOSED CABINET Avior Midi Compact cabinet unit for １–２ treatment units A RT. N O. 002-2 A compact cabinet suction unit with strong vacuum performance for one or two treatment units. Its insulated housing is designed to stand as close as possible to the dental unit – ideally on the left-hand side of the chair. TREATMENT UNITS Automatic air/water separator with level sensor and drain pump Treatment units Vacuum motor Non-stop side-channel motor, 0.370 kW (50 Hz) / 0.450 kW (60 Hz) Liquid suction capacity Continuous operation Automatic air/water separator with level sensor Automatic, integrated...

COMPACT SUCTION SYSTEMS Avior Cabrio Open-frame suction system for 1 —2 treatment units Treatment units Vacuum motor Open frame, without cabinet Non-stop motor - same as Midi Air/water separator, automatic level control Automatic, integrated drain pump The Midi suction technology on an open frame, without a cabinet. Cabrio can be placed in any technical space or built directly into clinic cabinetry and serves one or two treatment units. Electronic control board Smaller than the Midi cabinet (on request) Location-free - inside clinic cabinetry or in a plant room Exhaust silencer Cannula holder...

COMPACT SUCTION SYSTEMS COMPACT SUCTION SYSTEMS ■ SEMI-WET Semi-wet suction system for 1—2 treatment units ART. NO. 002-1 A semi-wet suction system with a stable, compact body for direct installation. Its centrifugal separation stage divides air and fluids directly at the unit, and the system can supply two treatment rooms depending on the piping layout. TREATMENT L/MIN AIR FLOW MBAR VACUUM — Supplies one or two treatment rooms, depending on the piping design — Automatic start via microswitch — Adjustable run-on delay keeps the motor running after use to clear the suction lines TECHNICAL DATA...

Treatment units Frequency / power Motor type Side-channel blower Motor speed The larger semi-wet system for three to four treatment units – a powerful side-channel blower in a stable, compact body, with the same automatic start Noise level Liquid capacity Hose diameter (in/out) Drain connection on the unit Continuous suction; control board with adjustable run-on delay Cleanable coarse filter Cleanable coarse filter Continuous suction with adjustable run-on delay Electrostatic powder coating Semi-wet suction system for ３–４ treatment units A RT. N O. 002-3 and run-on control as the Direct 300. TREATMENT...

Avior Hercules Compact central suction for ３–６ treatment rooms H E R C U L E S 3 / 4 003-3 Strong vacuum pumps combined with an automatic separator and drain system, built without cover for installation anywhere in a back room. Two sizes cover three to four and five to six treatment rooms. Treatment units Vacuum motor Rated for 7–8 h continuous operation per day Separator tank Fibre-moulded, corrosion-resistant Level control / drainage Automatic, special drain pump Separator cleaning By the user, without tools Vacuum adjustment Adjuster valve – protects the pump and sets the vacuum level Dimensions...

Avior Central Vacuum System Inverter-controlled, for １０ to ３００ chairs A RT. N O. 003-N Central vacuum systems with inverter technology for multi-chair clinics and large dental facilities. Each system is sized and built to the building project, from 10 up to 300 treatment chairs. TREATMENT CHAIRS CONTROLLED VACUUM PUMPS Engineered to the building and piping project T E C H N I C A L D A TA Treatment units Frequency inverter Sized to the building project – please send your plans PLANNING A CENTRAL SYSTEM Every system is sized to the building project. Inverter control cabinet – example configuration....
