piCObaby™

Product catalog summary

Overview: The document provides details about the piCObaby Smokerlyzer®, a device designed for easy carbon monoxide (CO) monitoring in maternity settings. It highlights the device's features, benefits, and technical specifications.

Features and Benefits:

5-year warranty and USB connectivity.
No calibration required, enhancing infection control.
Instant readings for both mother and baby with a simple three-step process: hold breath, exhale into the device, and receive instant results.
Includes FREE COdata+™ software and an easy-to-use touchscreen interface.
Familiar traffic light system for easy interpretation of results.
Automatic conversion to %FCOHb and antimicrobial technology for improved hygiene.

Technical Specifications:

Concentration range: 0-150ppm with a full-color touchscreen display.
Detection principle: Electrochemical sensor with repeatability of ≤±5% and accuracy of ≤±2ppm/5%.
Power: Operates on 3 x AA batteries and 1 x CR2032 Lithium coin cell, providing up to 1000 minutes of use.
T90 response time is less than 30 seconds.
Operating conditions: Temperature range of 15-40⁰C, humidity of 15-90% RH (non-condensing).
Storage conditions: Temperature range of 0-50⁰C, humidity of 0-95% RH (non-condensing).
Sensor life: 5 years with a sensitivity of 1ppm and drift of <5% per annum.
Dimensions: Approximately 37 x 77 x 140mm, weight: 215g including batteries.
Materials: Case made of polycarbonate/ABS blend with antimicrobial additive, D-piece™ made of polypropylene, SteriBreath™ Eco made of paper, and OneBreath™ made of polypropylene.
H2 cross interference is ≤6%.

Applications: Ideal for providing in-depth stop smoking advice by midwives, stop smoking services, general practice, schools, pharmacies, and health visitors.

Additional Information: The document is issued by Bedfont® Scientific Limited, with contact details provided for further inquiries. The company reserves the right to update the literature without prior notice.

Catalog excerpts

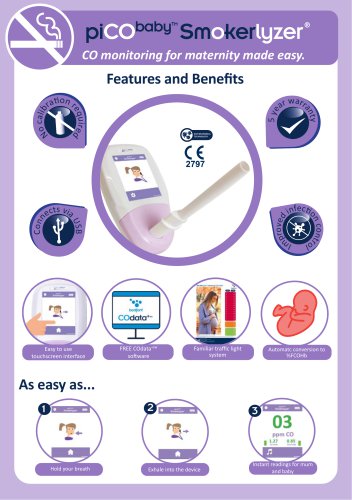

piCObaby Smokerlyzer CO monitoring for maternity made easy. Im Easy to use touchscreen interface FREE COdata+™ software Familiar traffic light system ANTIMICROBIAL TECHNOLOGY Automatc conversion to %FCOHb Hold your breath Exhale into the device Instant readings for mum and baby

Open the catalog to page 1

Concentration range Visit www.bedfont.com/resources to view this document in other languages. Ideal for in-depth stop smoking advice delivered by: • Midwives • Stop smoking services • General practice • Health visitors Staton Road, Harrietsham, Maidstone, Tel: +44 (0)1622 851122 Fax: +44 (0)1622 854860 Email: [email protected] Web: www.bedfont.com © Bedfont® Scientific Limited 2024 Issue 13 - September 2024, Part No: MKT378 Bedfont® Scientific Limited reserves the right to change or update his literature without prior notice. Registered in: England and Wales. Registered No: 1289798 Westervoortsedijk...
