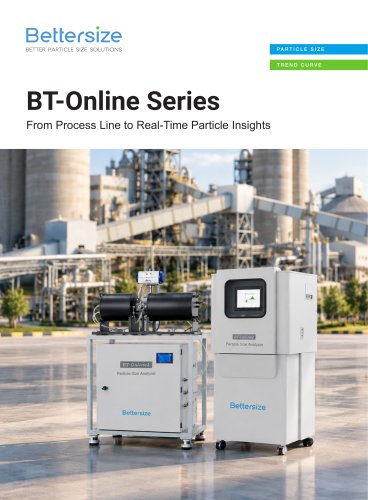

BETTER PARTICLE SIZE SOLUTIONS PARTICLE SIZE TREND CURVE BT-Online SeriesFrom Process Line to Real-Time Particle Insights Particle Size Analyzer Particle Size Analyzer

BT-Online Series Particle Size Analyzers are specifically designed for particle size monitoring in powder and slurry production processes. By integrating the analyzer into the process line, the BT-Online Series delivers 24/7 fully automated particle size measurement without manual intervention, significantly enhancing manufacturing automation and operational efficiency, and enabling manufacturers to monitor critical process parameters and maintain consistent product quality. With flexible and customized configurations, the BT-Online Series adapts to diverse industrial applications and process...

BT-Online1(Dry) The BT-Online1 Particle Size Analyzer is designed for continuous online particle size monitoring of dry powder processes. Samples are extracted from the process stream using a Venturi-based sampling system and delivered directly to the analyzer for measurement. Sampling Solutions Engineered for demanding industrial environments, the BT-Online1 combines robust construction with reliable performance, ensuring longterm stability, high uptime and minimal maintenance requirements. · Constant-quantity sampler The system supports up to four process lines simultaneously, reducing equipment...

BT-Online2 (Wet) The BT-Online2 Particle Size Analyzer is designed for continuous online particle size monitoring of wet process applications. Its highprecision optical system delivers laboratory-grade measurement accuracy for reliable process control. Samples are automatically extracted using an innovative pneumatic reciprocating sampler and transferred to a dual-tank system. Highpower ultrasonication and automatic dosing of dispersing agents ensure optimal sample dispersion for accurate and repeatable measurements. The system can monitor up to four process lines, simultaneously, providing efficient...

Particle Size Test (Online) Close sampling gas circuit 2... Typical Value Display Users can select key measurement parameters, including mean particle size, Dx values, and particle size fractions, and display their trends over time for intuitive process tracking. ( ^ ^ The software features an intuitive real-time monitoring interface that provides detailed visibility into current and historical measurement data, allowing users to monitor particle size trends, access real-time measurement data, review detailed measurement information, adjust measurement parameters, and track instrument status...

Successful Application Cases Cement Anode and Cathode Materials BT-Online1 has accumulated extensive application experience in the cement industry, with a broad customer base. Typical sampling point: 33 · Gravity chute Particle size is a critical quality attribute for both anode and cathode materials. Real-time monitoring helps maintain tight process control to ensure product quality. Typical sampling point: 33 · Jet mill outlet · Sand mill outlet Compressed air Air slide Venturi injector Material flow (Cement powder) Low pressure air Principle illustration In a typical installation, a 1-to-2...

From Inquiry to Installation Successful Application Cases Grinding Process Control The BT-Online Series enables intelligent grinding process control by providing continuous real-time particle size measurements directly to the plant control system, where automated feedback adjustment optimizes grinding parameters and maintains the target PSD. Other Examples A simple and efficient process is provided to ensure seamless integration into your process. Typical sampling point: 33 · Sand mill outlet Bettersize supports customers throughout the entire journey, from initial evaluation to final commissioning....

Measurement range ® Communication method Modbus TCP/IP □ ® Optional accessories Long distance communication □ Remote screen casting module □ Monitor signal switching module □ Dual monitor mount □ Audio alert output module □ For customized measurement solution, please contact us for more information. 14 ® Pneumatic reciprocating sampler (1 is internal discharge type, 2 is external discharge type) 1 (On-site welding) □ 2 (DN25 flange) □ 2 (On-site welding) □ 1 (DN50 flange) □ 2 (DN15 flange) □ External loop □ 1 (DN25 flange) □ External loop (Mineral slurry) □ ® Communication method Modbus TCP/IP...
