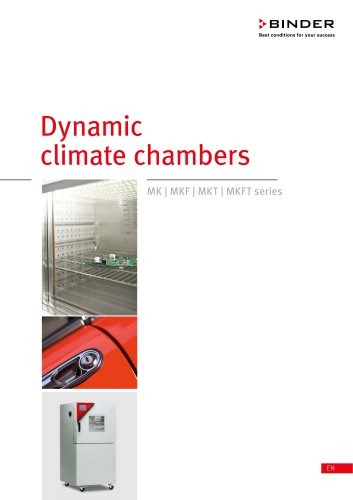

Best conditions for your success Dynamicclimate chambers MK | MKF | MKT | MKFT series

Dynamic climate chambers Dynamic climate chambers Series MKFT BINDER environmental chambers are perfectly suited to material testing under dynamic conditions. The standard rapid alternation speeds of around 5 K/min make standard-compliant testing possible. An environmental simulation chamber of the MK and MKT Series is suitable for complex temperature profiles in the range of -40 °C or -70 °C to 180 °C. MKF and MKFT Series of dynamic climate chambers not only make material testing in this temperature range possible, but can also regulate humidity in the range of 10 % to 98 % RH.

Product selection | Dynamic climate chambers PRODUCT SELECTION DYNAMIC CLIMATE CHAMBERS Features Series MKFT Humidity range Ethernet interface Forced convection General data Temperature range [°C] Controller and timer functions Controller display Ramp function Programming option Class 1 temperature safety device Class 2 independent adjustable temperature safety d

Dynamic climate chambers | Advantages at a glance HOMOGENEOUS TEMPERATURE DISTRIBUTION FLEXIBLE WATER SUPPLY BINDER APT.line™ preheating chamber technology ensures long-term operational stability even under full load. The flexible water supply is easy to handle and can be operated independently of the water supply and water quality. CONVENIENT WORK ENVIRONMENT PROGRAMMING AND DATA COLLECTION With our high level of standard equipment, such as the heated viewing window with LED illumination and a large access area for easy assembly a convenient work environment can be established. with the program...

Series MK | Dynamic climate chambers • Homogeneous climate conditions thanks to APT.line™ technology • Comprehensive programming and data acquisition • Large heated viewing window MAIN FEATURES • Temperature range: -40 °C to +180 °C • APT.line™ preheating chamber technology • Intuitive touchscreen controller with time-segment and real-time programming • Internal data logger, measured values can be read out in open format via USB • BINDER Multi Management Software APT-COM™ Basic Edition • Programmable condensation protection for test material • Troubleshooting system with visual and audible alarms...

Dynamic climate chambers | Series MK OPTIONAL EQUIPMENT Access port with silicone plug BINDER PURE AQUA Service For introducing external measuring instruments. Large selection of different diameters and positions (left, right, or top) System for preparation or complete desalination of tap water, complete set containing PURE AQUA 300 single-use cartridge, measuring device, and all necessary connecting parts. Suitable for simulating a dry, cold climate. In the MKF and MKFT series with controlled Dry-air purge humidity, the temperature-humidity chart is significantly expanded, while the option of...

TECHNICAL DATA Net weight of the unit (empty) [kg] 165 Wall clearance back [mm] 300 Wall clearance sidewise [mm] 200 Internal Dimensions Housing dimensions not incl. fittings and connections Width net [mm] Performance Data Temperature Temperature range [°C] Temperature variation depending on setpoint [± K] Temperature fluctuation depending on setpoint [± K] Heating-up time from -40 °C to 180 °C [min] Average heating-up rate according to IEC 60068-3-5 [K/min] Average cooling down time according to IEC 60068-3-5 [K/min] Electrical data Nominal power (version 400V) [kW] Nominal power (version 480V)...

Dynamic climate chambers | Series MK EXTRACT OF FULLFILLED STANDARDS • MIL STD 810:2000-01 • DIN EN 60068-2-14 Heat compensation with a set value of -40°C Heat compensation with a set value of -40°C Heat compensation with a set value of -40°C Heat compensation with a set value of -40°C DIMENSIONS incl. fittings and connections [mm] MK 56

Series MK | Dynamic climate chambers ORDERING INFORMATION OPTIONS Bezeichnung right Access port with silicone plug for temperature values (output not adjustable) Calibration certificate, expanded for temperature; for extending the measurement in center of chamber to include another test temperature for temperature, measurement in center of chamber at specified temperature temperature measurement incl. certificate and 27 measuring points at specified temperature temperature measurement incl. certificate, 15- 18 measuring points at specified temperature temperature measurement incl. certificate,...

Bezeichnung Beschreibung MK MK MK MK MK MK Art.-Nr. ^ . uncontrolled, incl. connection; for preventing Dry-air purge Notch-type access port notch-type access port in door, 100 x 35 mm additional flexible Pt 100, interior, for displaying the temperature on the unit display Additional serial interface can be used parallel to Ethernet, for Multi Management Software APT-COM™ with visual alarm (DIN 12880) Water cooling for reduced heat loss to ambient air Zero voltage relay contacts for controlling 3 relay contacts via program regulators, accessible via 6-pin DIN socket (max. 24 V - 2.5 • ORDERING...

Series MK | Dynamic climate chambers Rack, reinforced stainless steel, with fasteners (1 set of 4) RS 422 cable set and RS 485 / RS 422 interface converter for connection to 10-way plug distributor Shelf, perforated Stainless steel consisting of fresh- and waste-water containers (20 Water supply set liters each), cabling and pump tion in situations where units need to be positioned in locations without an on-site Ethernet connection. In secured networks, installation and configuration must be performed by the customer’s IT service.

Dynamic climate chambers | Series MKF MAIN FEATURES BENEFITS • Homogeneous climate conditions thanks to APT.line™ technology • Automatic water and wastewater management • Pressure humidification with fast response times • Comprehensive programming and data acquisition • Large heated viewing window • Humidity regulation with capacitive humidity sensor and steam humidification • APT.line™ preheating chamber technology • Intuitive touchscreen controller with time-segment and real-time programming • Integrated water-storage tank, 20 L • 1 stainless steel rack • Access port with silicone plug (models...
