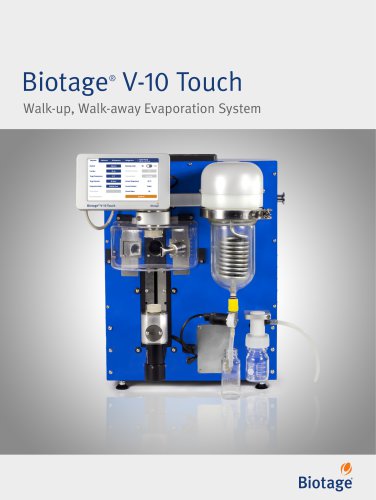

Walk-up, Walk-away Evaporation System

Meet Biotage V-10 Touch Evaporation System ® Biotage V-10 Touch rapidly dries samples dissolved in both aqueous and organic solvents. It easily evaporates HPLC fractions from purification or high boiling-point solvents from synthesis, and it features a novel dry-down onto silica technique for easier dry loading before purification. ® Quick turnaround of single samples Reduced manual sample handling – vial reformatting, sample transfer Consistent, reproducible operation Biotage V-10 Touch | © Biotage 2

How Does it Do it? Speed Without Bumps Evaporate High Boiling Solvents You can run high-temperature reactions without worrying about solvent removal. Biotage V-10 Touch rapidly evaporates high boiling-point solvents like DMF, DMSO and NMP. You can perform quick evaporation without the risk of bumping or contamination with rotation speeds up to 8,000 rpm. Hot Precision Your sample is kept safe at all times with precise contactfree heating and live IR control which monitors your evaporation. Dry Down Directly onto Silica Vacuum Powered Success By mixing your sample in a silica slurry, you can dry...

Biotage V-10 Touch with Solvent Manager and Automation ® Effortless Control Set temperature, pressure level and method for optimal evaporation conditions at all times. Automated Vial Holder 16 position vial sample holder for convenient queuing. Vial Compatibility Versatile vial rotator fittings accommodate vials from 30 mL down to 4 mL. Biotage V-10 Touch | © Biotage 2020 ®

Sample Delivery Precision piston pump ensures accurate sample delivery and solvent exchange. The sample loop maintains excellent sample integrity and precision. System Solvent Redissolve your sample after evaporation and switch solvents easily. Also used as cleaning solvent to maintain sample integrity. Sample Inlet Up to 1 liter of sample can be evaporated and concentrated into your vial of choice.

Gilson Liquid Handler The Gilson liquid handling robot automatically transfers your purified samples to V-10 Touch for sequential automated evaporation. Biotage® V-10 Touch evaporates the purified fractions and places the dried samples neatly on the vial carousel. Biotage® V-10 Touch | © Biotage 2020

Control Centre Evaporate Your Fractions The Control Centre software integrates the V-10 evaporation system with the Gilson liquid handling robot. This extension lets you combine multiple fractions or samples from different tube racks and dry them into a single vial in one operation. Define your own racks and workspaces or choose from Biotage pre-defined for quick setup. After purification, place the tube rack with your fractions and let Gilson deliver them into your evaporation vial of choice for convenient combining and evaporation. (Biotage Selekt Purification system is not included in the...

Biotage V-10 Touch Accessories ® Carousel Vial Holders External Vacuum Pump Flexible vial holders for 16 position automation. Available for different vial type and size. See Table 1 and the Ordering Information. Connect it to enhance vacuum performance to evaporate DMSO and NMP. Chemically Resistant Upper Vial Face Seal Upper Head Adapter Assembly V-10 faceseal, Chemraz, PN 413210. Withstands evaporation of 100% TFA from your peptide samples. Standard assembly for 4, 8, 20 and 30 mL vials (left), accessory assembly for 16 mL vials (right). Wide Range of Adapters 20 and 30 mL vials fit directly...

Vial Type Upper Adapter Lower Adapter Lower Adapter PN Height (mm) Diameter (mm) Inner Neck Diameter (mm) Carousel Vial Holder PN Table 1. Parts are depicted in true scale. Match your vial directly against the table and find your adapter part numbers.

System Specifications Solvent Compatibility Boiling points from 30 °C to 160 °C (up to 205 °C with an external vacuum pump). The system is not suitable for solutions containing HCl at any concentration. Rotational Speed Refrigerated condenser temperature: -25 °C. Automated and manual draining; and manual defrost. Pressure control method: Variable speed and level. Internal vacuum Pump: 5 mbar. Optionally an external vacuum pump can be connected using a KF-16 vacuum flange. Vial Compatibility 30 mL scintillation vial 20 mL scintillation vial 16 mL vial 8 mL vial 4 mL vial Solvent Reclamation Up...

Ordering Information FeatureHigh Speed Vial RotationBuilt in Condenser and Vacuum Pump High Power Vacuum Pump Runs at 2 mbar Advantage Eliminates risk of bumping during vacuum evaporation No need to plug in external equipment Evaporate high-boiling point solvents Benefit Quick evaporation Better control, uses minimal bench space Expanded reaction design possibilities Part No. DescriptionEvaporation Systems V10-2XX V-10 Touch System V10-2SC V-10 Touch System with Solvent Manager and Pre-Defined Methods Collects Dried Compound in Vial of Choice Faster set-up and accessibility to inexperienced users....

Title Truncated if Neccessary... | Page 12 Your Complete Partner for Effective Chemistry Biotage is a worldwide supplier of instruments and accessories designed to facilitate the work of laboratory and process chemists. With our deep knowledge of the industry, academic contacts and in-house R&D teams, we can deliver the best solutions to your challenges. We take great pride in our flexibility and ability to meet our customer’s individual needs. With strong foundations in both analytical, organic and process chemistry, we can offer the widest range of solutions available on the market. Part Number:...
