DMX Module for Proficlave PCX

Product catalog summary

Overview
The PCX DMX Module is a precision dispensing device designed for compact and controlled liquid handling. It integrates seamlessly into laboratory environments, offering efficient and ergonomic operation.

Key Features

Quick Flow Control: Utilizes integrated pinch valve technology for fast and smooth liquid flow control, eliminating the need for a peristaltic pump.
Safe and Clean Handling: Features a closed tubing system and pressure-over-liquid dispensing to reduce contamination risk, prevent shear forces, and minimize foam formation.
Hands-Free Operation: Compatible with external control devices, such as a foot switch, for ergonomic and efficient dispensing.
Flexible Tubing Options: Supports various laboratory tubing sizes to accommodate different flow rates and applications.

Technical Specifications

Dimensions: Length 130 mm, Depth 220 mm, Height 140 mm
Net Weight: Approximately 1.8 kg
Power Consumption: 12 W
Power Supply: AC 100–240 V, 50/60 Hz
Device Voltage: 12 V
Line Voltage Fluctuations: +/- 10%
Mains Cable: C14 cable connection to Power Supply
Air Pollution Level: Degree of pollution 2 (IEC EN 61010-1)
Ambient Temperature: 10 – 30 °C
Relative Humidity: Max. 80%
Max. Fluid Pressure: 0.8 bar
Compatible Tubing Sizes: 9.6 × 6.4 × 1.6 mm / 6.4 × 3.2 × 1.6 mm
Max. Outer Tube Diameter: 10 mm

Catalog excerpts

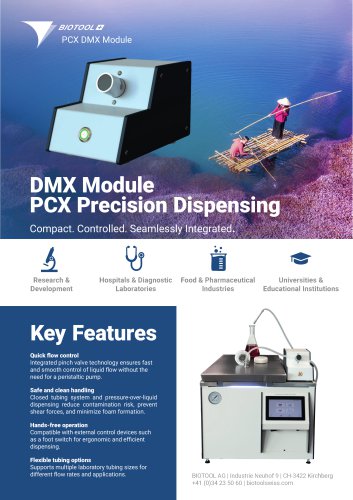

Compact. Controlled. Seamlessly Integrated.^ Research & Development Hospitals & Diagnostic Laboratories Food & Pharmaceutical Industries Universities & Educational Institutions Integrated pinch valve technology ensures fast and smooth control of liquid flow without the need for a peristaltic pump. Closed tubing system and pressure-over-liquid dispensing reduce contamination risk, prevent shear forces, and minimize foam formation. Compatible with external control devices such as a foot switch for ergonomic and efficient dispensing. Supports multiple laboratory tubing sizes for different flow rates and applications. BIOTOOL AG | Industrie Neuhof 9 | CH-3422 Kirchberg +41 (0)34 23 50 60 | biotoolswiss.com

Open the catalog to page 1

TECHNICAL DATA (subject to technical modification) Length Power consumption Power supply Device voltage Line voltage fluctuations Mains Cable Air Pollution level Ambient temperature Relative humidity Max. fluid pressure Compatible tubing sizes Max. outer tube diameter C14 cable connection to Power Supply Degree of pollution 2 (IEC EN 61010-1) 10 - 30°C Max. 80 %

Open the catalog to page 2
