Bitbrain Diadem 12 ch EEG

Product catalog summary

Overview
The Diadem 12ch EEG is a wearable device designed for cognitive and emotional research. It utilizes dry EEG technology to provide insights into real-life workspaces, customer behavior, and neurorehabilitation therapies without the need for electrolytic substances.

Key Features

Dry EEG Sensors: No need for electrolytic substances, ensuring ease of use.
Advanced Electronics: Active shielding with optimized DRL for improved signal-to-noise ratio and reduced artifacts.
Wearability: Lightweight and comfortable, with adjustable design for various head shapes and hair volumes.
Battery Life: Offers over 8 hours of operation with Bluetooth streaming and SD storage capabilities.

Technical Specifications

Sensor Layout: Optimized for various EEG measurements including frontal alpha asymmetry and P300.
Channels: 12 EEG channels with additional reference and ground channels.
Sampling Rate: 256 SPS at 24 bits with a bandwidth of DC – 40Hz.
Data Transmission: Bluetooth 2.1 + EDR with a range of 10 meters.
Weight: 120g with a 2-year warranty and CE certification.

Software and Tools

Bitbrain Core Research Software: Real-time visualization and data synchronization, compatible with various third-party software.
Bitbrain Extended Research Tools: Includes SennsLab and SennsMetrics for data analysis and visualization.

Applications

Evaluating workload, attention, and stress levels in natural conditions.
Analyzing customer behavior in response to marketing materials.
Developing brain-computer interface therapies for cognitive neurorehabilitation.

Additional Information
The Diadem 12ch EEG is part of Bitbrain's multimodal platform, integrating EEG, biosignals, and eye-tracking for comprehensive behavioral biometrics. For more information, visit Bitbrain's website or contact them directly.

Catalog excerpts

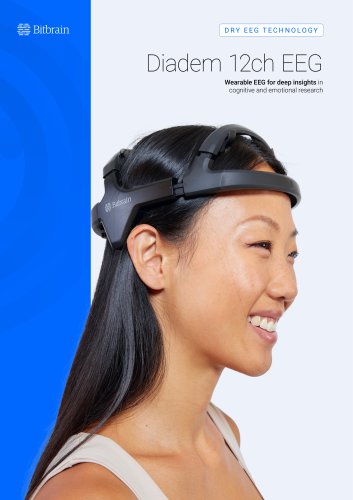

Wearable EEG for deep insights in cognitive and emotional research

Open the catalog to page 1

Dry EEG sensors No need to apply electrolytic substances or saline solutions. Wearable EEG for deep insights in cognitive and emotional research Advanced electronics Active shielding with optimized DRL to improve SNR and reduce artifacts. Lightweight, portable dry-EEG device with frontal and posterior sensors, designed for comfortable, reliable recordings in natural environments. Bluetooth Streaming + SD Storage 8 h Battery Life Wearable and comfortable Fast and simple to set up. Participants forget that they are wearing it in a few minutes. Flexible, adaptive Design Adjustable arcs and sensor...

Open the catalog to page 2

DATA STREAMING AND STORAGE Type of sensors/ Dry EEG sensors with active shielding and Data transmission Bluetooth 2.1 + EDR with 10 meters in and range direct sight Head perimeter WIRELESS AMPLIFIER Sampling rate/resolution Online/real-time impedance check Yes (relative contact impedance) Rechargeable LiPo battery; charging time <3 h Integrated sensors Integrated IMU (9 axis): Accelerometer, gyroscope and magnetometer Other inputs 1x digital input (1 bit), 1x optical trigger Input range and noise ±100 mV; <1 pV RMS (0.5-30 Hz@256 Hz) CMRR/Input impedance >100 dB @50Hz, > 50 GQ Data backup Yes...

Open the catalog to page 3

We invite you to explore our scientific publications section. Discover how Bitbrain technology is applied across various research fields. For the online version, click here or scan the QR code if you’re viewing the printed version. Zaragoza, Spain Calle. Sta. Teresa de Jesús, 32,

Open the catalog to page 4
