CardiAngel AED Brochure 2026

Product catalog summary

Technical Specifications
The document outlines the specifications of an Automated External Defibrillator (AED) designed for both adults and children. The energy output for adults is configurable between 90 J and 200 J, while for children, it ranges from 30 J to 70 J. The device uses a Biphasic Truncated Exponential (BTE) waveform.

Performance Features
The AED supports a fast shock cycle with a charging time of less than 10 seconds, overlapping with rhythm analysis. It includes CPR support with a metronome and optional FreeCPR® guidance. The device conducts self-tests, configurable daily or weekly, to ensure readiness.

Connectivity and Monitoring
The AED is equipped with connectivity options including an SD card and 4G cellular for LifeDataNet G2, enabling remote monitoring and automatic alerts. This ensures the device is always ready for use.

Battery and Durability
The AED uses a Li-MnO2 battery with a life of up to 6 years. It is classified as Class III and has dimensions of 310 x 255 x 100 mm, weighing 2.5 kg. The device is IP55 rated for dust and water resistance.

Additional Features
The AED is suitable for all ages, trilingual, and comes with a 10-year warranty. It is designed for ease of use and is marketed as a lifesaver that can be deployed anywhere, including public spaces like schools, gyms, and airports.

Manufacturer and Contact Information
The AED is manufactured in France, with sales offices in Bulgaria and Turkey. Contact details and further information are available on the company's website.

Catalog excerpts

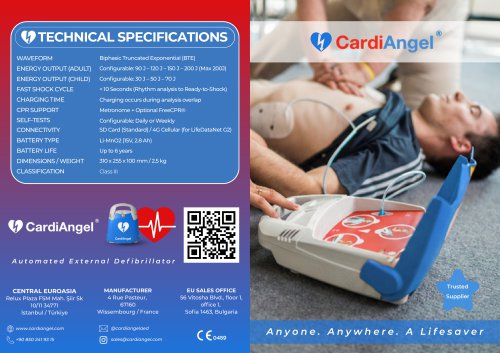

^TECHNICAL SPECIFICATIONS CardiAngel WAVEFORM ENERGY OUTPUT (ADULT) ENERGY OUTPUT (CHILD) FAST SHOCK CYCLE CHARGING TIME CPR SUPPORT SELF-TESTS CONNECTIVITY BATTERY TYPE BATTERY LIFE DIMENSIONS / WEIGHT ^CLASSIFICATION Biphasic Truncated Exponential (BTE) Configurable: 90 J - 120 J - 150 J - 200 J (Max 200J) Configurable: 30 J - 50 J - 70 J < 10 Seconds (Rhythm analysis to Ready-to-Shock) Charging occurs during analysis overlap Metronome + Optional FreeCPR® Configurable: Daily or Weekly SD Card (Standard) / 4G Cellular (for LifeDataNet G2) CardiAngel VP -J\h— arHi Annnl * Automated External Defibrillator CENTRAL EUROASIA Relux Plaza FSM Mah. §iir Sk 10/11 34771 istanbul / Turkiye Wissembourg / France 56 Vitosha Blvd., floor 1, office 1, Anyone. Anywhere. A Lifesaver

Open the catalog to page 1

Sudden cardiac arrest can strike anywhere Why CardiAngel®? Trusted Supplier - 20 Years of Experience at 65 + countries globally AEDS SHOULD BE EVERYWHERE Yachts, Boats Cafes, Restaurants IP55 DUST AND WATER RESISTANCE LONG-LIFE BATTERY Public Transportation Airports, Aircrafts Cardio-Protected Zones with CardiAngel® Online Always connected. Always ready. Remote monitoring via LifeDataNet® G2 ensures AED readiness with automatic self-tests, alerts, and secure data transmission — so you know your device is ready when it matters. Remote monitoring Automatic alerts Secure data transf
