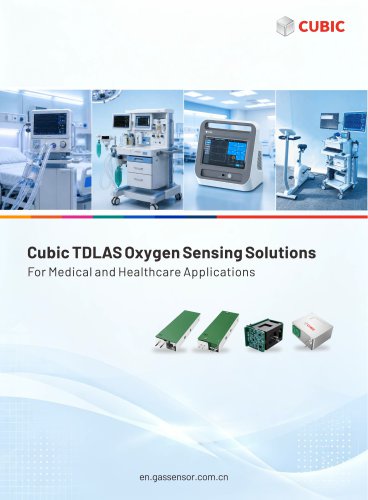

For Medical and Healthcare Applications

G Self-Developed Gas Sensing Technologies G Supply Chain Integration G In-House Manufacturing G Hardware/Structural Design G Software Development G Prototype Testing & Validation G Mold Development & Manufacturing Cubic Sensor and Instrument Co., Ltd. (hereinafter referred to as "Cubic") is a publicly listed company in SSE STAR Market (stock code:688665), specializing in smart gas sensors and superior gas analyzers. Set up in 2003, situated at "Optics Valley" of Wuhan, China, Cubic has established gas sensing technology platforms including optical technologies (NDIR, Ultraviolet, Light Scattering,...

How TDLAS Works TDLAS technology leverages the narrow linewidth and tunable characteristics of semiconductor lasers to target the specific absorption lines of oxygen molecules. By modulating the laser frequency, the emitted beam passes through the gas sample and is selectively absorbed by oxygen, causing attenuation of the transmitted light intensity. The attenuated signal is detected and demodulated at the receiver and combined with the Beer-Lambert law to derive the real-time oxygen concentration. TDLAS vs Other Oxygen Sensing Technologies Feature

TDLAS 02 SensorGasboard-2510(g) Introduction Gasboard-2510 is an oxygen sensor developed for real-time oxygen concentration measurement in medical gas analysis systems. Based on tunable diode laser absorption spectroscopy (TDLAS) technology, it achieves high selectivity for accurate oxygen measurement with strong resistance to interference from background gases. With automatic temperature and pressure compensation, Gasboard-2510 maintains measurement accuracy under varying operating conditions. An optional carbon dioxide sensor can be integrated for simultaneous 02 and C02 measurement. Gasboard-2510...

Introduction Gasboard-2511 is a high-accuracy gas sensor module designed for simultaneous measurement of oxygen (02) and carbon dioxide (C02) concentrations in medical gas analysis systems. Based on TDLAS (Tunable Diode Laser Absorption Spectroscopy) technology for oxygen measurement and NDIR (Non-Dispersive Infrared) technology for carbon dioxide measurement, Gasboard-2511 combines both sensing technologies within a compact sensor module. The module supports a wide oxygen measurement range of 0-100% vol. with fast response time and high resolution, while carbon dioxide measurement ranges up...

Compact TDLAS 02 SensorGasboard-2512(g) Introduction Gasboard-2512 is a compact oxygen sensor developed for accurate oxygen measurement in medical applications. Based on tunable diode laser absorption spectroscopy (TDLAS) technology, Gasboard-2512 achieves ultra-high selectivity for accurate oxygen detection with excellent resistance to interference from other gases and moisture. It also delivers a fast response time, enabling real-time monitoring in dynamic environments. With calibration-free operation, vibration resistance, and no maintenance requirements, Gasboard-2512 ensures long-term stability...

Gasboard-2513 is an 02/C02 dual gas sensor developed for medical respiratory applications, utilizing TDLAS technology for oxygen measurement and NDIR technology for carbon dioxide measurement within a single sensor module. It delivers ultra-high selectivity, strong resistance to cross-gas and humidity interference, and a fast response time of <200 ms, supporting real-time monitoring under rapidly changing respiratory conditions. Gasboard-2513 features calibration-free and maintenance-free operation, superior vibration resistance, and long-term measurement stability, ensuring reliable performance...

Oxygen Range Oxygen Response Time (T10-T90) 170 ms±15 ms @ 150 m I / m i n 100ms±15ms@350ml/min Oxygen Warm-up Time C02 Range Flow Range Weight
