Dawei medical portable X-ray RDX-5B
1 / 2 PagesView full catalog
Dawei medical portable X-ray RDX-5B
Product catalog summary
Overview: The RDX-5B is a portable medical diagnostic X-ray equipment developed by Dawei Medical (Jiangsu) Co., Ltd. It features a gapless fuel tank design and an all-in-one integrated design, making it simple to operate. The equipment utilizes high-frequency rectification technology, resulting in a lighter machine that supports DR, CR, and film systems while delivering a lower radiation dose.
Design and Technology: The RDX-5B integrates the X-ray tube, high voltage generator, and collimator into a single unit, ensuring a minimal failure rate. This design enhances portability and reliability.
Application Scenarios: The equipment is suitable for various settings, including emergency situations, indoor and outdoor shooting, and oversea voyages.
Technical Specifications:
- Output Power: 5.3kW
- Rated Voltage: 220VAC, ±10%, 50/60Hz
- Inverter Frequency: 100kHz, ±5%
- kV Range: 40kV-125kV
- mA Range: 10-100mA
- ms Range: 1-4000ms
- mAs Range: 0.1-200mAs
- Focus Size: 0.6-1.8
- Volume: 450*255*220 mm
- Package Size: 540*365*325 mm
- Net Weight: 15 kg
- Gross Weight: 22 kg
Conclusion: The RDX-5B is a versatile and efficient portable X-ray machine designed for diverse medical diagnostic applications, offering ease of use and reduced radiation exposure.
See more
Catalog excerpts
Dawei Medical (Jiangsu) Co., Ltd. ■ Portable medical diagnostic X-ray equipment ■ Application scene ➣ Emergency ➣ Indoor shooting ➣ outdoor shooting ➣ Oversea voyage Output Power Rated Voltage Inverter Frequency Focus size ● Support DR, CR and film system Package Size Gross Weight ● Gapless Fuel Tank Design ● All-in-One Integrated Design ● Simple system operation ● High frequency rectification technology ● Lower radiation dose The portable medical diagnostic X-ray equipment adopts the integrated design of X-ray tube, high voltage generator and collimator, which can ensure
Open the catalog to page 1
Dawei Medical (Jiangsu) Co., Ltd.
Open the catalog to page 2All Dawei Medical catalogs and technical brochures

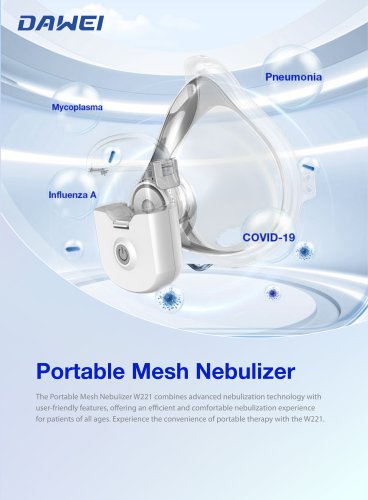

DAWEI Portable Mesh Nebulizer2 Pages

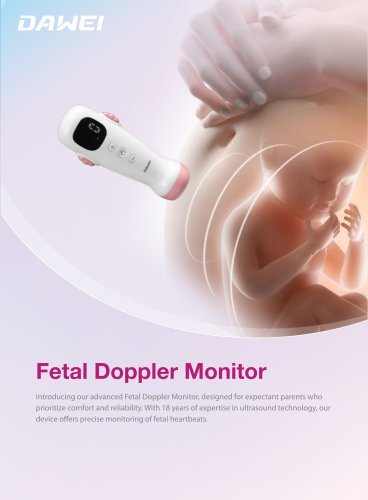

DAWEI Fetal Doppler2 Pages

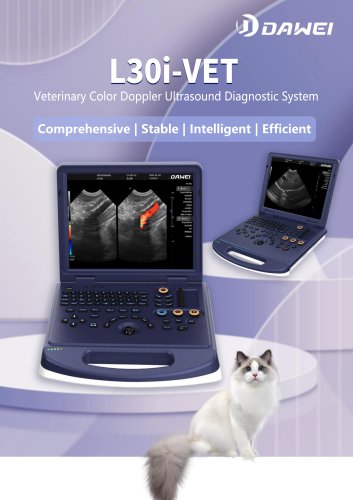

L30i Pet Ultrasound Machine4 Pages

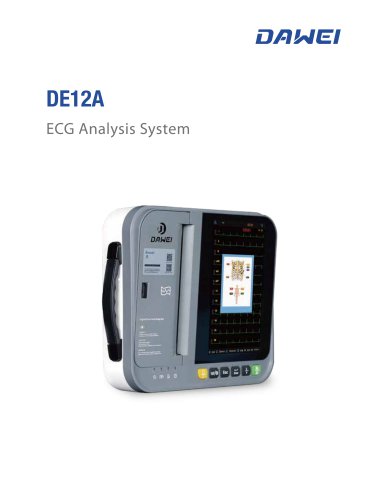

DE12A 12-lead ECG Machine6 Pages
