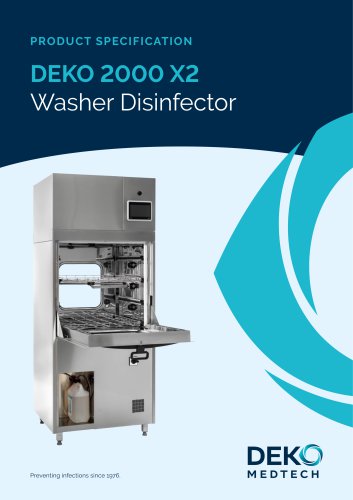

DEKO 2000 X2 Washer Disinfector Preventing infections since 1976.

Why choose DEKO 2000? Large capacity, high throughput 220 litre chamber, up to 8 DIN 1/1 Main features The DEKO 2000 X2 Washer Disinfector ensures automatic cleaning and thermal disinfection of reusable surgical and MIS instruments, rigid scopes, anaesthetic and respiratory equipment, hollowware, glassware, transit containers, rubber and plastic goods and other similar and related equipment used in medical and laboratory applications. DEKO 2000 X2’s large capacity and dynamic wash pump offer efficiency and a high throughput. Performance and design according to EN ISO 15883 Part 1 & 2 guarantee...

Features and functionalities – benefits for the user Large capacity With a 220 l chamber, DEKO 2000 X2 accommodates up to 8 DIN 1/1 or 16 DIN 1/2 trays. Up to 4 independently removable, sliding washing levels with rotating washing arms. Automatically connecting / closing wash arm connectors. Chamber roof and bottom equipped with rotating washing arms. Wash arms equipped with removable end caps. Standard delivery 2 washing shelves. Max. usable height 605 mm with bottom washing level. Efficient drying Fast dryer with HEPA filter EU13. Automatic filter condition monitoring and change indication....

Remote access (optional feature) Capability for remote access allowing remote service support. See “Deko WD networking, System description” for more information. Machine is equipped with boss entry port to insert temperature sensors to perform IQ, OQ, PQ (when requested by the user). Program library with 6 different factory-set programs tested and approved to meet standard EN ISO 15883 requirements. Programs are easily adaptable to suit special washing and disinfection requirements. Internal memory provides a pre-set cycle library for creating a practically unlimited number of programs. User...

Material Stainless EN 1.4301 steel Power and other technical features User interface / Display Door functioning Manual hinged door X Single door model with door interlock X Double doors / pass-through model with door interlock X Pure water pump, kW Pure water pump capacity, l/min Total maximum heat transmission (W/m2) Maximum fascia heat transmission (W) Mean sound power level (A), dB Peak sound power level (A), dB Washing mechanics Rotating washing arms Max. 5 Removable washing levels 1-4 Wash arms equipped with easily removable end caps X Electric connection * Chamber volume, l (gross) Chamber...

Installation, single door model Installation,double door (pass-through) model 1. Circuit breaker (1 6. Exhaust connection R1/2” (male) - onLy steam heated WaLL opening width: 800 mm / machine + 40 mm, height: 2020 mm 2. CoLd water R1/2” (femaLe), shut off vaLve (1 modeLs! 3. Warm water R1/2” (femaLe), shut off vaLve (1 7. Exhaust duct (1 4.1 Alternative drain outLet dia 20 mm with outLet pump (2 5. Steam connection R1/2” (maLe) - onLy steam heated (1 SuppLy by the buyer/instaLLation party Unloading side j Loading side 11

DEKO MedTech Oy | Vartiokuja 1 | FI-76850 Naarajärvi | Finland www.dekomedtech.com Preventing infections since 1976.
