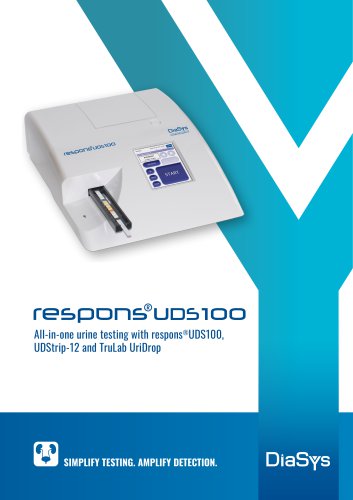

respons®UDS100

Product catalog summary

Introduction
The document introduces an all-in-one urine testing system featuring the respons®UDS100 analyzer, UDStrip-12 test strips, and TruLab UriDrop controls. This system is designed for high-performance urine analysis, crucial for early detection of conditions like diabetes and chronic kidney disease (CKD).

System Components
The system includes a semi-automated strip analyzer, a test strip combining standard parameters with albumin-creatinine ratio (ACR) determination, and a dedicated two-level urine control. These components aim to enhance the reliability, accuracy, and cost-effectiveness of urine testing.

Key Features

The UDStrip-12 test strips offer high sensitivity and include ACR determination, which is essential for comprehensive kidney diagnostics.
The system minimizes workload and costs by combining standard parameter and ACR determination in a single run.
It features an integrated ascorbic acid protection system to maintain accuracy even at elevated levels of vitamin C.

Benefits
The system provides superior patient value by enabling early CKD detection, which improves patient outcomes. The 2024 KDIGO guideline supports the use of ACR for accurate kidney disease diagnosis.

Technical Specifications

Test method: Reflectance photometer with wavelengths of 505, 530, 620, and 660 nm.
Throughput: Up to 50 tests/hour in normal mode and up to 120 tests/hour in fast mode.
User interface: 3.5” LCD touchscreen with multiple connectivity options including RS232, USB, and Ethernet.
Parameters measured include Albumin, Bilirubin, Blood, Creatinine, Glucose, Ketone, Leucocytes, Nitrite, pH, Protein, Specific gravity, and Urobilinogen.
Reading time is 60 seconds, extendable to 120 seconds for leucocytes.
Shelf life of test strips is 24 months.

Order Information
Product codes and packaging options for the respons®UDS100, UDStrip-12, and TruLab UriDrop are provided, with language packs available for different regions.

Catalog excerpts

All-in-one urine testing with respons®UDS100, UDStrip-12 and TruLab UriDrop SIMPLIFY TESTING. AMPLIFY DETECTION.

Open the catalog to page 1

Urine analysis by strip determination has been a widely used diagnostic method since the 1950s. It is designed for preliminary screening of diabetes and for assessing urinary tract infections and kidney function, which is of high importance as chronic kidney disease (CKD) cases rise. The non-invasive test is commonly used in both routine check-ups and emergency settings to support early disease detection and clinical decision-making. The new semi-automated, high performance and cost-effective urine testing system includes the following components: re&pon&®UDE)ioo ud amp-i^ uriDrop Semi-automated...

Open the catalog to page 2

Early detection saves kidneys: the 2024 KDIGO guideline confirms the albumin-to-creatinine ratio in addition to the estimated glomerular filtration rate (eGFR) as being essential for accurate kidney disease diagnosis, especially for chronic kidney disease. Urine test strips like the UDStrip-12 that measure standard parameters and ACR enable early CKD detection, thereby improving patient outcomes. Strips lacking ACR determination risk missing early-stage disease, delay treatment and negatively impact patient health. ALL-IN-ONE URINE TESTING IN DAILY USE respons®UDS100 enables automated reading,...

Open the catalog to page 3

FROM QUESTIONS TO TRUSTED ANSWERS. DiaSys Diagnostic Systems GmbH Alte Strasse 9 | 65558 Holzheim Germany Diagnostic Systems

Open the catalog to page 4
