100-L Easyseal Continous sealing machine
100-L Easyseal Continous sealing machine
This automatic sealing machine is designed for continuous sealing of various types of bags, including paper-plastic, 3D paper-plastic, and paper-paper bags. It supports high-temperature steam, low-temperature EO, plasma, and radiation sterilization processes. The seal quality adheres to international standards, specifically for materials compliant with EN868-5, YY/T 0698-5, EN868-4, and YY/T0698-4. Non-sealable materials include polyethylene film, soft and hard film, nylon membrane, and OPP film.
The machine operates at a seal speed of 10 m/min with an adjustable seal margin of 0-35mm and a seal width of 12mm. It functions within a temperature range of 60-220℃ with a precision of ≤1%. The power specifications are 220V±10% 50/60Hz, 500W, and a maximum current of 3.2A. The machine dimensions are 482×242×157mm, weighing 11kg, and it seals from the left. Storage conditions include a temperature range of 10-40℃, humidity ≤ 90% (R.H), and atmospheric pressure of 50-106kPa.
The machine features a three-line high-light LED display with a touchable keyboard for temperature settings. It uses microcomputer-controlled temperature with high accuracy and rapid heating capabilities. Safety is ensured by automatic shutdown if the temperature deviates by more than ±4℃. The sealing speed is 10m/min, and it includes an automatic sealing test. The machine meets standards WS310.2-2016 and YY/T 0698.5-2009. It has an adjustable fixed-force system for sealing various pouch thicknesses and includes automatic failure warnings and detection. The advanced ceramic heating components provide efficient and even heating.
Details on system operations are not provided in the summary.
The package includes one sealing machine, a guide plate, a manual, two 6A fuses, an operating procedure, and two auxiliary legs.
Catalog excerpts

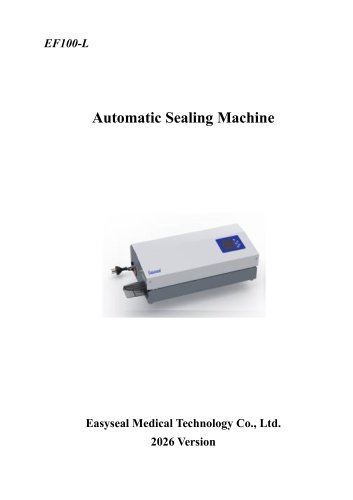

Automatic Sealing Machine Easyseal Medical Technology Co., Ltd. 2026 Version
Open the catalog to page 1
This model is designed for continuous sealing of paper-plastic bags, 3D paper-plastic bags and paper-paper bags. The sealing process satisfies the requirements of high-temperature steam sterilization, low-temperature EO sterilization, plasma sterilization and radiation sterilization. Seal quality meets corresponding international standards. Sealable materials: • Bags in compliance with EN868-5 and YY/T 0698-5 ; • Paper bags in compliance with EN868-4 and YY/T0698-4; • High density polyethylene materials (such as Tyvek); • Aluminum foiled materials. Non-sealable materials: • Polyethylene film;...
Open the catalog to page 2
9. Automatic failure warning and automatic detection during working; 10. Advanced flat ceramic heating components allow quick increase of temperature, well-distributed heating, high-temperature resistance, long service life and high heat efficiency; 11. The machine is fitted with complete components such as the cutting machine, ultra silent roller worktable, multipurpose workstation of the sealing device, and other peripheral accessories to improve its utilization rate and bring convenience to users.
Open the catalog to page 3All Easyseal Medical Technology catalogs and technical brochures
