LASEmaR® 1000

Product catalog summary

Overview: The document provides detailed information about the LASEmaR® series of lasers, specifically the LASEmaR® 1000, 940, and 1064 models, which are designed for versatile use in various surgical fields including ENT, general surgery, gynecology, podology, vascular surgery, PLDD, urology, and dermatology.

Technical Specifications: The LASEmaR® lasers operate at wavelengths of 940 nm, 980 nm, and 1064 nm, utilizing high power diode technology. They feature adjustable pulse durations, multiple operation modes (single, pulsed, continuous), and an air cooling system combined with Peltier’s Cells. The lasers are compliant with EU regulations and various IEC standards.

Applications: The lasers are suitable for a wide range of surgical procedures, offering benefits such as selective photocoagulation, burn-free coagulation, and excellent haemostasis. They are particularly effective in vascular surgery for photocoarctation of varices and in PLDD for minimally invasive spinal decompression.

Clinical Advantages: The LASEmaR® series provides precision in mini-invasive surgeries, tissue vaporization with minimal carbonization, and a quickly modular aiming beam. These features make them ideal for both aesthetic and functional minimally invasive procedures.

Accessories and Features: The lasers come with various accessories including optical fibers, handpieces for different applications, and a rotating scanner for wound treatment. They also feature a smart trolley for portability and software for preselected and adjustable treatment protocols.

Conclusion: The LASEmaR® 1000, 940, and 1064 are versatile lasers suitable for a broad range of surgical applications, offering technical and clinical advantages that enhance surgical precision and patient outcomes.

Catalog excerpts

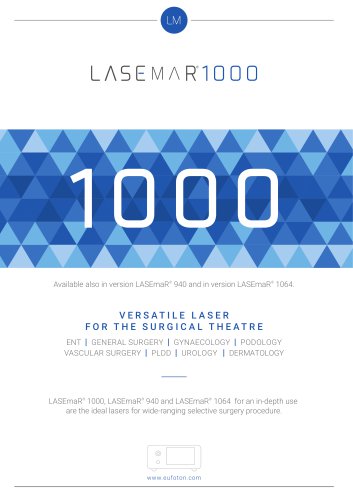

Available also in version LASEmaR® 940 and in version LASEmaR® 1064. V E R S AT I L E L A S E R F O R T H E S U R G I C A L T H E AT R E ENT | GENERAL SURGERY | GYNAECOLOGY | PODOLOGY VASCULAR SURGERY | PLDD | UROLOGY | DERMATOLOGY LASEmaR® 1000, LASEmaR® 940 and LASEmaR® 1064 for an in-depth use are the ideal lasers for wide-ranging selective surgery procedure.

Open the catalog to page 1

LASEmaR® 1000, LASEmaR® 940 and LASEmaR® 1064 are ideal for wide-ranging selective. All LASEmaR® release infrared laser emission through optical fibers different in core diameter (between 100 and 1000 gm), usable with the majority if endoscopes. These features make the LASEmaR® ideal for minimally invasive procedures both from an aesthetic and functional point of view. EPC - Effective Pulse Control, maximization of the concept of selective photocoagulation. . Portability thanks to the smart trolley. >► Software - all the treatments are preselected and adjustable thanks to the software. Security...

Open the catalog to page 2

GENERAL SURGERY LASEmaR® 1000 can selectively coagulate tissues at microscopic level reducing post-op inflammation and regular pain. If the laser operates in pulsed emission mode, it is able to vaporize superficial lesions without any anaesthesia or stitching. Its wavelength has an advantage in surgery: a high water absorption power (10 times higher than an 808 nm laser and 4 times higher than a 1064 nm laser) for an enhanced penetration and vaporization of soft tissues (mainly constituted by water). PERCUTANEOUS LASER DISC DECOMPRESSION (PLDD) PLDD is a conservative, minimally invasive surgical...

Open the catalog to page 3

LASEmaR® 1000 is available in SILVER, BLACK and GOLD. LASEmaR® 1000 - TECHNICAL FEATURES Wavelength (nm) High Power Diode (GaAs) Preselected programmes Software with experienced protocols to be manually customized Pulse duration (Ton - Toff) Adjustable from 1 to 9000 msec - steps 1 ms Number of pulses per sequence (single and pulsed mode) Adjustable from 1 to 100 - step one Interval between pulse sequence (pulsed mode) Operation mode Single pulse mode, Pulsed mode, Continuous mode Cooling system Air cooling system combined with Peltier’s Cells Aiming beam Electrical power Absorbed power 300 VA...

Open the catalog to page 4
