Product catalog summary
Device Overview
The FP 4 SSP Digital is a digital sequential system designed for the mechanical prevention of Deep Vein Thrombosis (DVT). It includes a base unit, garments for single and multi-patient use, and connection sets for operating room extensions. The device features a digital display showing preset functions, operating pressure, treatment, and remaining times.

Use and Indications
This system is used to prevent venous stasis by simulating the natural distal-proximal thrust mechanism of walking. It uses a pump to generate a pressure wave with a cycle of 120 seconds, including 40 seconds of compression and 80 seconds of decompression. The pressure range is programmable from 0 to 80 mmHg.

Therapeutic Actions
  • Prevents venous stasis and increases venous velocity and flow.
  • Contains venous dilation and reactivates lymphatic flow.
  • Stimulates local fibrinolytic activity and contains the venous wall.

Technical Features
  • Sequential pressotherapy with a distal-proximal pressure gradient.
  • Portable system capable of treating one or two limbs simultaneously.
  • Backlit digital display for pressure values, treatment time, and alarm thresholds.
  • High and low-pressure alarms with automatic shutdown.
  • Electronic adjustment of treatment time, both automatic and manual.
  • Unique D.A.S.C. system for uniform pressure distribution.
  • Medical CE mark certified.
See more

Catalog excerpts

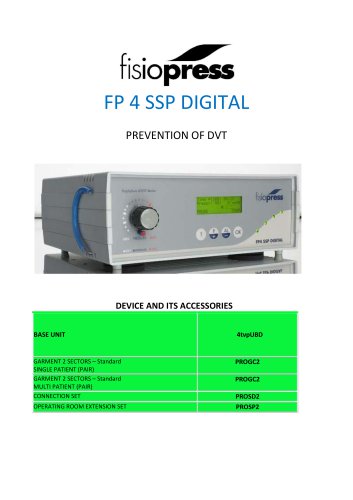

FP 4 SSP DIGITAL -2

Digital sequential system for the mechanical prevention of Deep Vein Thrombosis (DVT). Digital display shows all preset functions and actual operating pressure, as well as treatment and remaining times. Manual function with operator deactivation. Possibility to select the compression phase timing. Programmable alarms (audible and automatic shutdown) for unscheduled pressure increases or decreases. It consists of a pump that generates a constant-flow pressure wave, with an operating cycle programmed for 120 seconds, of which 40 are compression (programmable) and 80 are decompression/rest. Programmable...

 Open the catalog to page 2
FP 4 SSP DIGITAL -3

• Sequential pressotherapy with distal-proximal pressure gradient. • Portable-professional system, equipped with two sequential outputs, capable of treating one or two limbs simultaneously. • Backlit digital display for viewing pressure values, programmed treatment time and remaining time, and preset alarm thresholds. • Graph of pressures and programmable functions. • High pressure alarms (audible and automatic shutdown). • Low pressure alarms (audible, for disconnection of the connection, etc.) • Electronic adjustment of treatment time, both automatic and manual. • Pressure range: 0 - 80 mm...

 Open the catalog to page 3

All Fisiopress catalogs and technical brochures

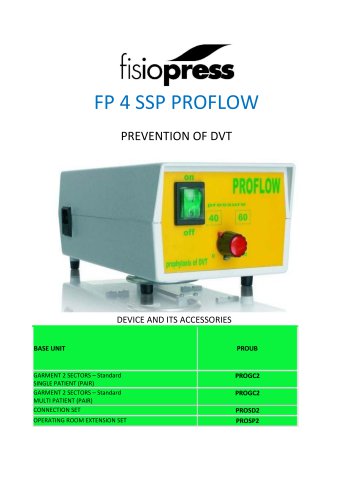

  1. FP 4 MINI

    5  Pages

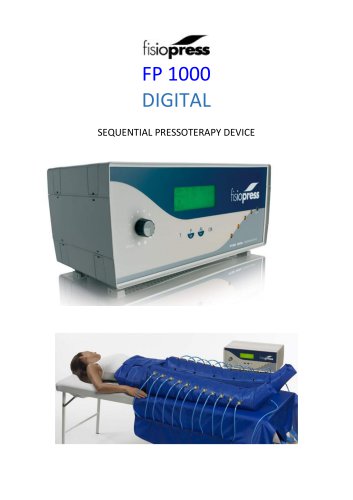

  2. FP 50
