FP 4 SSP PROFLOW

FP 4 SSP PROFLOW

FP 4 SSP PROFLOW

Product catalog summary
Device Overview
The FP 4 SSP PROFLOW is a medical device designed for the prevention of Deep Vein Thrombosis (DVT). It includes a base unit and various garments for single or multi-patient use, targeting different limb sections such as foot-calf and calf-thigh.
Use and Indications
The device operates by generating a constant-flow pressure wave with a cycle of 120 seconds, including 40 seconds of compression and 80 seconds of decompression. It aims to prevent venous stasis by mimicking the natural walking mechanism through sequential compression of the foot and calf. The system uses a unique D.A.S.C. (Distribution by Communicating Sectors) technology to ensure uniform pressure distribution.
Therapeutic Actions
  • Increases venous velocity and flow
  • Contains venous dilation
  • Reactivates lymphatic flow and reduces lymphatic edema
  • Stimulates local fibrinolytic activity
  • Supports venous wall integrity
Technical Features
  • Sequential pressotherapy with a distal-proximal pressure gradient
  • Portable and professional system capable of treating one or two limbs simultaneously
  • Pressure range of 0 - 80 mmHg
  • Operating cycle of 2 minutes
  • Equipped with D.A.S.C. system for uniform pressure distribution
  • Terminals available for lower limb treatments
  • Option to replace each internal pneumatic bag individually
  • Medical CE mark certified
See more

Catalog excerpts

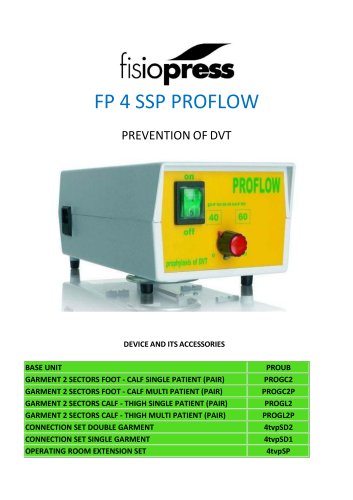

FP 4 SSP PROFLOW-2

It consists of a pump that generates a constant-flow pressure wave, with an operating cycle programmed for 120 seconds, of which 40 are compression (programmable) and 80 are decompression/rest. Programmable pressure range: 0 - 80 mmHg, on one or two terminals simultaneously. To avoid venous stasis, the system, through the sequential cycle, reproduces the same distal-proximal thrust mechanism as walking (foot pump and calf pump), through a sock that acts by compressing first the sole of the foot (one section), and then the calf (one section). The pressure wave is distributed within two pneumodistension...

 Open the catalog to page 2
FP 4 SSP PROFLOW-3

TECHNICAL FEATURES • Sequential pressotherapy with distal-proximal pressure gradient. • Portable-professional system, equipped with two sequential outputs, capable of treating one or two limbs simultaneously. • Pressure range: 0 - 80 mmHg on two terminals simultaneously. • Operating cycle: 2 minutes. • D.A.S.C. system (Distribution by Communicating Sectors): this system, unique to Fisiopress, ensures consistently uniform pressure in all chambers as they fill with air, allowing the terminals to adapt to the geometry of the treated limb and compress it uniformly without the risk of stagnation or...

 Open the catalog to page 3
