AQUILA II ECONOMIC

Product catalog summary

Overview: The Aquila II ECONOMIC is a versatile hospital bed designed to enhance patient comfort and facilitate caregiver operations. It features a robust construction, adjustable settings, and optional accessories to meet diverse healthcare needs.

Construction:

The bed is constructed from rectangular carbon steel profiles, coated with a polyester-epoxy varnish for resistance against mechanical, chemical, and UV damage. The main structure uses profiles with a 5x3 cm cross-section, supporting a maximum load of 250 kg.
It includes four pallet segments filled with powder-painted wire mesh and mattress holders to prevent sliding.
Equipped with CPR functionality on the backrest and two IV pole sockets at the head side.
Features four corner bumpers and removable head and footboards made of metal pipes with HPL board, available in six colors.
Four 125mm castors with individual brakes ensure mobility and stability.

Adjustments:

Electric actuators allow for height, thigh, and back support adjustments, including Trendelenburg and anti-Trendelenburg positions, operated via a hand rest.
The lower leg section is adjusted mechanically using a Rastomat.
The bed's height can be adjusted to align with stretchers, wheelchairs, or shower trolleys, promoting ergonomic caregiver posture.

Controls:

A wire handset with a key lock and 10 buttons can be attached to the side rail for easy operation.

Technical Data:

Total bed length: 2180 mm
Total bed width: 960 mm
Pallet dimensions: 2000 mm x 850 mm
Maximum mattress base height: 810 mm
Minimum mattress base height: 350 mm
Trendelenburg/Reverse-Trendelenburg: 17°/17°
Backrest adjustment range: 0-70° ± 5°
Thigh segment adjustment range: 0-40° ± 5°
Lower leg adjustment range: 0-22° ± 5°
Maximum load: 250 kg
Castor diameter: Ø125 mm
Guarantee: 24 months
Power supply: 230V; 50/60Hz

Additional Accessories: An IV pole is available, and further accessories can be selected to enhance bed functionality. Contact for a full list of options.

Mattress: The bed includes an antidecubitus mattress made of polyurethane foam with a waffle design, covered with a waterproof, steam-permeable cover, measuring 200 x 85 x 12 cm.

Side Rails: Foldable side rails cover 3/4 of the bed length, providing additional safety and support.

Catalog excerpts

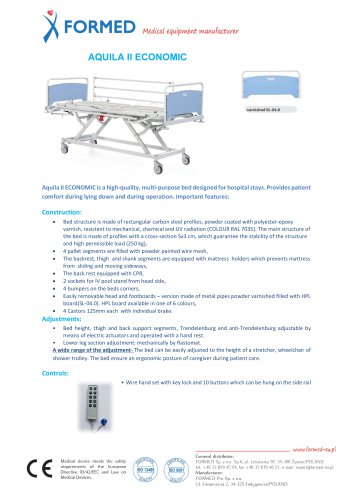

FORMED Medical equipment manufacturer AQUILA II ECONOMIC Aquila II ECONOMIC is a high-quality, multi-purpose bed designed for hospital stays. Provides patient comfort during lying down and during operation. Important features: • Bed structure is made of rectangular carbon steel profiles, powder coated with polyester-epoxy varnish, resistant to mechanical, chemical and UV radiation (COLOUR RAL 7035). The main structure of the bed is made of profiles with a cross-section 5x3 cm, which guarantee the stability of the structure and high permissible load (250 kg), • 4 pallet segments are filled with powder painted wire mesh, • The backrest, thigh and shank segments are equipped with mattress holders which prevents mattress from sliding and moving sideways, • The back rest equipped with CPR, • 2 sockets for IV pool stand from head side, • 4 bumpers on the beds corners, • Easily removable head and footboards - version made of metal pipes powder varnished filled with HPL board(SL-04.0). HPL board available in one of 6 colours, • 4 Castors 125mm each with individual brake. • Bed height, thigh and back support segments, Trendelenburg and anti-Trendelenburg adjustable by means of electric actuators and operated with a hand rest. • Lower leg section adjustment: mechanically by Rastomat. A wide range of the adjustment- The bed can be easily adjusted to the height of a stretcher, wheelchair of shower trolley. The bed ensure an ergonomic posture of caregiver during patient care. • Wire hand set with key lock and 10 buttons which can be hung on the side rail General distributor: FORMED Sp. z o.o. Sp.K, ul. Lesnianka 97, 34-300 Zywiec/POLAND tel. +48 33 819 45 94, fax +48 33 819 46 21, e-mail: [email protected] Manufacturer:

Open the catalog to page 1

FORMED Medical equipment manufacturer Technical data Additional accessories: Foldable side rails 3/4 bed length side rails We can increase the functionality of the bed by selecting additional accessories. If you are interested in list of available accessories please contact us. General distributor: FORMED Sp. z o.o. Sp.K, ul. Lesnianka 97, 34-300 Zywiec/POLAND tel. +48 33 819 45 94, fax +48 33 819 46 21, e-mail: [email protected] Manufacturer:

Open the catalog to page 2

All Formed catalogs and technical brochures

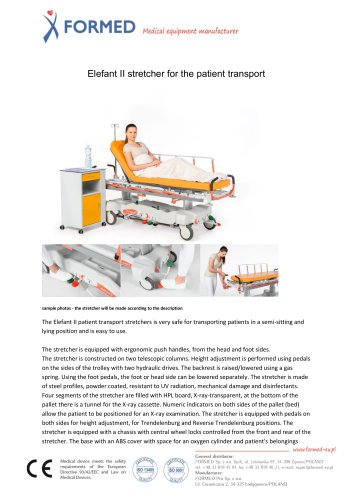

Elefant II stretcher for the patient transport
2 Pages

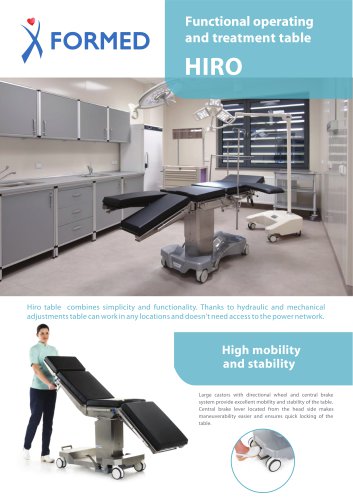

Functional operating and treatment table HIRO Functional operating and treatment table
