Loupes_semi-custom
Loupes_semi-custom
- Models: VISION X C 3.0, VISION X C 3.8, XC-VIEW 2.8, MC-VIEW 2.8, TC-VIEW 2.5.
- Optical Parameters: Magnification ranges from 2.5 to 3.8, with working distances between 360-540 mm and fields of view from 45 to 110 mm. Depth of field varies from 70 to 200 mm.
- Features: All models include aluminum housing, glass lenses, waterproof design, and are lightweight (22-43 g per pair).
- Customization Steps: Choose a loupe, decide on working distance, measure pupil distance, and optionally add a customized dioptre compensation clip.
- LED-LIGHT CIRCLE: Designed for medical use, providing bright, uniform, shadow-free illumination with a glass lens system.
- Specifications: Offers brightness levels of 20,000/30,000/60,000 LUX, a color temperature of 5700 K, and a magnetic adaptor system. The LED technology is combined with a rechargeable Li-ion battery, offering 7 hours of life at 60,000 LUX.
- Design: Lightweight at 12 g, made from aluminum with a glass lens system, available in silver and black.
Catalog excerpts

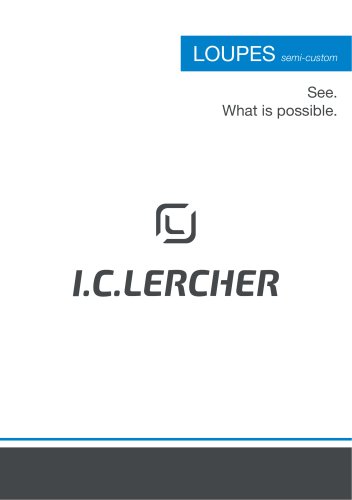

LOUPE SYSTEMS semi-custom In 4 easy steps to individual glasses.
Open the catalog to page 2
With our C-loupes in SPORT-FRAME. With the semi-custom system, you can create your individual loupe in just four steps. Over 30 years of experience make it possible to set standard values that come very close to custom loupe glasses. The result is an amazingly easy to custom system. It enables different magnifications with the best wearing comfort and highest quality of vision. Have the distance of your pupils measured. This will provide you with the information needed to select one Optical parameters of the three distance ranges that best suits Dioptre compensation With RX-Clip in Frame your...
Open the catalog to page 3
LIGHTING SYSTEMS Bring light into the dark.
Open the catalog to page 4
More light. For more details.Compact, leightweight and ultra-bright. The integrated LED technology combined with the lithium-ion battery (supplied) means it can be used without distracting waveguides.This protects your neck and helps you to work in a more ergonomic way. And at just 12 grams, the lightweight LED-LIGHT CIRCLE is ideal for all kinds of applications, including the operating theatre and treatment room - and even mobile use. The LED-LIGHT CIRCLE has been specially developed for medical use. It produces an extremely bright light that provides uniform, shadow-free illumination. Thanks...
Open the catalog to page 5
Designed & Manufactured in Germany
Open the catalog to page 6All I.C.Lercher catalogs and technical brochures

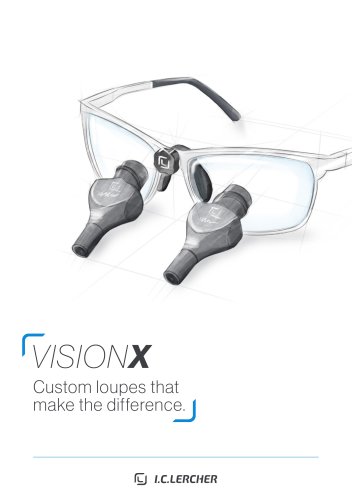

Loupes_VISIONX17 Pages

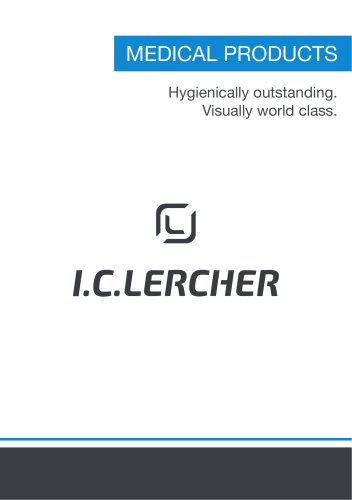

Medical_Products19 Pages

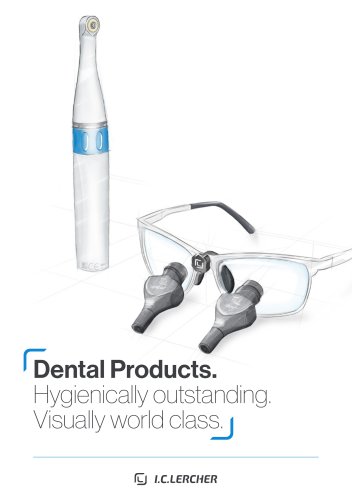

Dental_Products25 Pages
