Implen OD600® Product Brochure

Product catalog summary

Ordering Information
The Implen OD600® is available in various regional versions, each including the OD600 Instrument, USB-C cable, power supply specific to the region, and a Quick Start Guide. The DiluCell™ 10 is a disposable cuvette with a 1/10 virtual dilution, available in packs of 96. An IQ/OQ Documentation package is also available for the Implen OD600®.

Technical Specifications
The Implen OD600® is designed for fast, easy, and accurate determination of cell density at 600 nm. It features a 3.5” glove-compatible touchscreen display, 4 GB internal memory, and advanced connectivity options including USB and LIMS integration via WiFi and Ethernet/LAN. The device is CE certified and complies with IEC61010-1:2012 and EN 61326-1:2013 standards.

Optical & General Specifications
The DiluCell™ has dimensions of 12 mm x 12 mm x 45 mm, with an automatic dilution factor of 10. It requires a sample volume of 300 μl and is UV/VIS transparent starting from 340 nm. The OD600 photometric range is 0 – 4 A with an accuracy of < ±0.01 A at 1 A. The device supports various cuvettes and tubes without the need for adapters.

Data Storage & Compatibility
The device offers 4 GB storage capacity and supports software in six languages. It allows data export in .xls and .csv formats and LIMS integration using JSON format. The device is designed for stand-alone operation with a rechargeable battery providing over 8 hours of continuous use.

Advanced Features
The Implen OD600® is a modern, stand-alone, battery-powered device with a touchscreen interface for easy operation. It is preprogrammed with intuitive OD600 and McFarland applications, suitable for use in various environments including field work and safety cabinets. The device is maintenance-free with no moving parts and requires no recalibration.

Catalog excerpts

Implen OD600® Technical Specifications Optical Specifications & Displayed Information Implen OD600®Fast, easy, and accurate determination of cell density at 600 nm DiluCell™ Optical & General Specifications Ordering Information Article No. Europe, Asia, South Pacific, North and South Middle East and Africa America Implen GmbH Schatzbogen 52 81829 Munchen, Germany Phone: +49 89 72637180 Fax: +49 89 726371854 Email: [email protected] Website: www.implen.de 31194 La Baya Drive, Unit 104 Westlake Village, CA 91362, USA Phone: +1 818 748-6400 Fax: +1 818 449-0416 Email: [email protected] Website: www.implen.com

Open the catalog to page 1

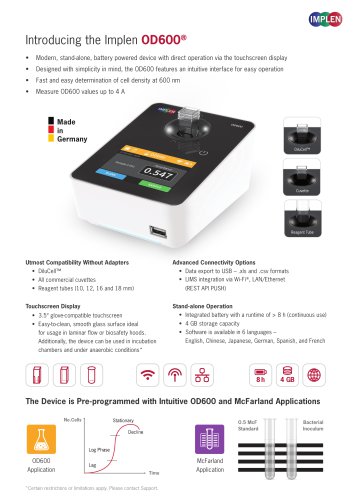

The device is preprogrammed with intuitive OD600 and McFarland applications Modern, stand-alone, battery powered device with direct operation via the touchscreen display Designed with simplicity in mind, the OD600 features an intuitive interface for easy operation Fast and easy determination of cell density at 600 nm Easy-to-clean, smooth glass surface Ideal for usage in laminar flow or biosafety hoods UTMOST COMPATIBILITY WITHOUT ADAPTERS • DiluCell™ • All commercial cuvettes • Reagent tubes – Bacterial Inoculum 10, 12, 16 and 18 mm; no height restriction • Wipeable sample compartment McFarland...

Open the catalog to page 2

All Implen catalogs and technical brochures

Archived catalogs

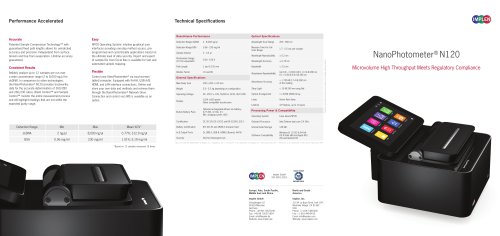

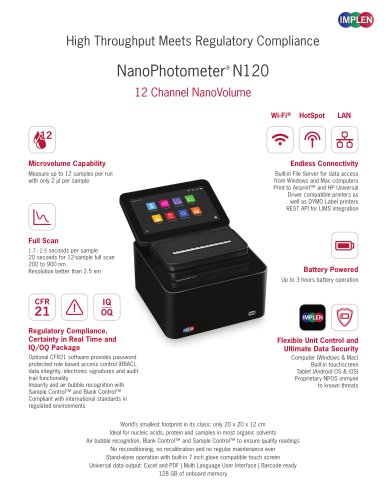

NanoPhotometer® N120
