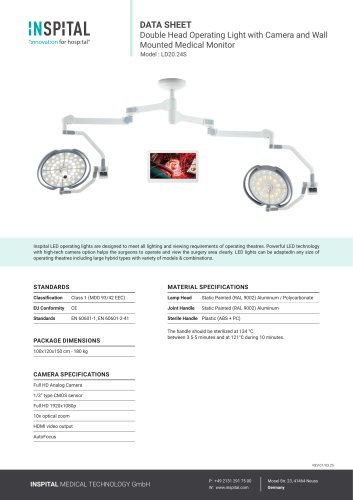

DATA SHEETDouble Head Operating Light with Camera and Wall Mounted Medical Monitor Model : LD20.24S Inspital LED operating lights are designed to meet all lighting and viewing requirements of operating theatres. Powerful LED technology with high-tech camera option helps the surgeons to operate and view the surgery area clearly. LED lights can be adaptedin any size of operating theatres including large hybrid types with variety of models & combinations. STANDARDS MATERIAL SPECIFICATIONS Classification Class 1 (MDD 93/42 EEC) Lamp Head Static Painted (RAL 9002) Aluminum / Polycarbonate Joint Handle Static Painted (RAL 9002) Aluminum Sterile Handle Plastic (ABS + PC) The handle should be sterilized at 134 °C between 3.5-5 minutes and at 121°C during 10 minutes. CAMERA SPECIFICATIONS Full HD Analog Camera 1/3” type CMOS sensor Full HD 1920x1080p 10x optical zoom HDMI video output AutoFocus INSPITAL MEDICAL TECHNOLOGY GmbH P: +49 2131 291 75 00 W: www.inspital.com

DATA SHEETDouble Head Operating Light with Camera and Wall Mounted Medical Monitor Model : LD20.24S TECHNICAL SPECIFICATIONS MAIN LIGHTHEAD SATELLITE LIGHTHEAD Diameter of lighthead with outer handle Illumination power, at 1 m Color temperature (adjustable) Color rendering index, Ra CRI Dimming Range (adjustable) Light Field Diameter d10 Light Field Diameter d50 Number of LED modules Lifetime of LED IP Total power consumption (max) Degree of turbulence(standard value 37.5% max.) Irradiance at nominal illuminance Depth of the volume of light L1 + L2 at 20% Input Voltage Weight of lighthead Additional...

DATA SHEET Double Head Operating Light with Camera and Wall Mounted Medical Monitor • Connect an equipotential plug. • Connect the RS-232C terminal with an external device to control the monitor. • Connect an AC/DC adapter. • The output of the enclosed adaptor is 19 V. • The product is designed to be used with adaptors that have an output ranging between 19-24 V. Please use the adaptors of medical standards. • Input an analogue signal. • Receives or transmits digital video signals. • Receives or transmits digital video signals. • Input digital video signal. • Using a DVI to HDMI / DisplayPort...

DATA SHEETDouble Head Operating Light with Camera and Wall Mounted Medical Monitor Model : LD20.24S SS^*- 5V 0.9 A /SS^*- (USB Connector) • Used for HW Calibrator (Optional Accessory) connection. • Connect peripheral device to the USB input port. • A keyboard, mouse, or USB storage device can be connected. • To use USB 3.0, connect the A-B type USB 3.0 cable to the PC. CAUTION Cautions when using a USB storage device. • A USB storage device which has a built-in automatic recognition program or uses its own driver might not be recognisable. • Some USB storage devices may not be supported or may...

DATA SHEET Double Head Operating Light with Camera and Wall Mounted Medical Monitor Model : LD20.24S Note: ± 25 mm tolerance is given for metric measurements and ± 5°tolerance is given for angle measurements. INSPITAL MEDICAL TECHNOLOGY GmbH

DATA SHEET Double Head Operating Light with Camera and Wall Mounted Medical Monitor Model : LD20.24S OTHER SPECIFICATIONS * Active Illumination Control (AIC) Inspital LED light technology provides the best illumination, even when surgeons are blocking the LEDs. The loss of illumination when certain LEDs are obstructed is automatically compensated by the AIC system. * StandBy Mode/ Endo Light Mode Stylish blue LED strips in standby mode. Endo light mode can be activated with one touch, switching immediately and ready for endoscopic procedures. * Laser Positioning Guide Each light head has a laser...
