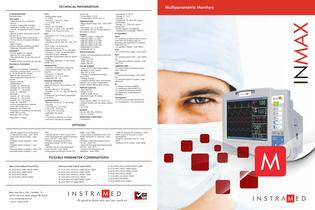

Multiparametric Monitors TECHNICAL INFORMATION FEATURES: • Initialization in only 10 seconds. • Alarms: - Priorities: 2 types (low and high). - Notification: Audible and visual. • Volume: 10 adjustment levels (multiple tones). • Silence of alarm: Adjustable to 30, 60, 120 and 180 s. • Screen display totally customizable. • 72 hour tabular and graphic tendency curves. • Alarm Autoset. • Modes: neonatal, pediatric and Adult. • Automatic Medication of NIBP.. TENDENCY: • Format: graphic and Tabular. • Memory: 72 h (not volatile). • Data interval time: 40 seconds and 40 samples. • Graphic format: one graph per vital sign. TECHNICAL FEATURES: NIBP: • Principle of functioning: oscillometric. • Automatic measure mode: 1, 2, 3, 4, 5, 10, 15, 30, 60 and 90 minutes. • Manual: one measurement. • Stat: consecutive measures for 5 minutes. • Measure interval: - Adult/pediatric: - Systolic: 30 - 255 mmHg. - Average: 20 - 235 mmHg. - Diastolic: 15 - 110 mmHg. - Pulse: 40 - 240 BPM. - Neonatal: - Systolic: 30 - 135 mmHg. - Average: 20 - 125 mmHg. - Diastolic: 15 - 110 mmHg. - Pulse: 40 - 240 BPM. • Limit of overpressure by software: - Adult: 290 mmHg max. - Neonatal: 145 mmHg max. • Protection of overpressure by hardware: - Adult: 300 ± mmHg. - Neonatal: 150 ± mmHg. • Resolution: 1 mmHg. SPO2: • Measurement range: - 0 - 100%. - Accuracy: ± 2% of 70 - 100%. - ± 3 % of 50 - 69%. • Pulse: - Range: 30 - 250 BPM. - Accuracy: ± 2 bpm of 30 - 250 BPM. • Speed: 12.5, 25 and 50 mm/s. ECG: • Sensitivity: 5, 10, 15, 20, 30 and 40 mm/mV. • Speed: 12.5, 25 or 50 mm/s. • Derivations: DI, DII, DIII, aVL, aVR, aVF and V. • ECG Cable: 3 or 5 channels. • Filter: 35 Hz and 60 Hz. • Measurement range: 15 thru 250 BPM. • Accuracy: ± 1 bpm 30 thru 250 BPM. • Indication of loose electrode. • Rejection of pacemaker pulse for double counting. • Defibrillator discharge: < 5 sec. as per IEC601-2-27. RESIPRATION: • Technique: transthoracic impedance. • Measurement range: 3 thru 150 resp/min. • Accuracy: ± 3 resp/min. • Sensitivity: 1, 2, 3, 4, 5, and 6. • Electrodes: RA - LA. INVASIVE PRESSURE: • Filter: 50 and 60 Hz. • Measure interval: - 99 mmHg thru 310 mmHg. • Zeroing interval: +/- 70 mmHg. • Accuracy: +/- 1%, +/-1 digit, whichever is greater. • Transducer: 5μV/V/mmHg, discardable or reusable. CAPNOGRAPHY: • Measure interval CO2: 0 - 99 mmHg. • Accuracy: +/- 3mmHg of 0 - 40 mmHg. +/- 8% of 41 - 76 mmHg. +/- 10% of 77 - 99 mmHg. • Calibration: two points. • Start: - 10 seconds to start the CO2 Curve - Less than 3 minutes for complete functioning. • Consumption: 0.8 W. • Compensation: BTPS, N2O, O2 . TEMPERATURE: • Measurement range: 15ºC - 45ºC (59ºF 113ºF). • Resolution: ± 0.1 ºC (0.18ºF). • Compatible with the YSI 400 series for temperature sensors. - Operational: 0 - 50 ºC. - Storage: 0 - 70 ºC. • Humidity: - Operational: 10 - 95% RH, without condensation. - Storage: 10 - 100% RH, without condensation. • Electromagnetic Compatibility: - Irradiated and conducted, CISPR11. ACESSORIES NORMS: • NBR IEC 60601-1:1994/1997 • NBR IEC 60601-1-2:1997 • NBR IEC 60601-2-27:1997 • NBR IEC 60601-2-30:1997 • NBR IEC 60601-2-49:2003 • ANSI/AAMI EC13:2002 • ANSI/AAMI SP 10 Basic: • 01 professional network cable (3 pins) code 555-0 01 auxiliary cable for grounding and equalization of potential code 549-5 (B). • 01 operation manual - code 18805. SPECIFICATIONS: ECG: • 01 5 channel ECG cable - code 18376. • Weight: 4.2 Kg (excluding accessories) • Dimensions: - Height: 231 mm. - Width: 300 mm. - Depth: 190 mm. SpO2: • 01 oximetry sensor 3044 - code 1255-6 (D). • 01 extension cable for oximetry - code 18627 (H). COLOR SCREEN: • Type: LCD TFT color (Active Matrix). • Backlight: 2 CCFL Lamps. • Size: 8,4” or 10,4”. • Tracings: 6 simultaneous tracings (maximum). • Viewing of screen: - Intelligent interface which automatically adjusts to the number of parameters present, always offering ideal viewing. TEMPERATURE: • 01 adult surface temperature sensor code 18384 (A). PRINTER (optional): • Type: thermal. • Weight: 0,4 Kg. • Width of paper: 50 mm. • Maximum length: 30 meters. BATTERY: • Type: internal, NiMH, 14.4 VDC 4 A/h. • Duration (battery with full charge, without printer): - 3,5 hours. NIBP: • 01 adult clamp/coupling - code 18562 (F). • 01 extension lead for coupling - code 12432 (G). IP: • 01 Medex transducer MX960. • 01 interlinking cable MX961Z14. • 01 support for transducer MX261. • 01 Medex line monitorization kit MX9604A. Capnography: • 01 EtCO2 low humidity sampling line. • 01 adult/pediatric T for sampling line. SOURCE: • AC 85 - 265 VAC, 50/60 Hz. • DC 10 - 16 VDC. OPERATING CONDITIONS: • Temperature: OPTIONS • MX 262 support for two transducers. • 3 channel ECG cable - code 18376. • Extra large clamp/coupling - code 18945. • Pediatric clamp/ coupling 2 - code 18929. • Pediatric clamp/ coupling 3 - code 18937. • Neonatal clamp/ coupling 0 - code 1302. • Neonatal clamp/ coupling 1 - code 18911. • Oximetry sensor Y 3043 - code 12475. • Adult esophageal and rectal temperature sensor YSI 401 - code 18970. • Pediatric esophageal and rectal temperature sensor YSI 402 - code 18988. • Pediatric oral and rectal temperature sensor YSI 423 - code 18996. • Adult surface temperature sensor YSI 409B - code 18384. • Adult surface temperature sensor YSI 409AC sterilizable by autoclave - code 19003. • Pediatric surface temperature sensor YSI 427 - code 7781. • Adult oral and rectal temperature sensor YSI 403 - code 19011. • Cable for synchronization with defibrillator - code 10626. • Cable for external DC connection - code 19020 (inquire at the plant for order specifications). • Cable for connection with PC - code 16411. • Software for PC control - code 19038. POSSIBLE PARAMETER COMBINATIONS Basic model (without IP and EtCO2) Advanced model (with IP and/or EtCO2) 01. ECG+SPO2+NIBP+RESP+TEMP 02. ECG+SPO2+NIBP+RESP 03. ECG+SPO2+RESP 04. ECG+SPO2+RESP+TEMP 01. ECG+SPO2+IP+EtCO2+NIBP+RESP+TEMP 02. ECG+SPO2+IP+EtCO2+NIBP+RESP 03. ECG+SPO2+IP+EtCO2+RESP+TEMP 04. ECG+SPO22+IP+EtCO2+RESP 05. ECG+SPO2+IP+NIBP+RESP+TEMP 06. ECG+SPO2+IP+NIBP+RESP Beco José Paris, 339 - Pavilhão 19 ZIP 91140-310 Porto Alegre RS Brazil www.instramed.com.br +55 51 3334 4199 07. ECG+SPO2+EtCO2+NIBP+RESP+TEMP 08. ECG+SPO2+EtCO2+NIBP+RESP 09. ECG+SPO2+EtCO2+RESP+TEMP 10. ECG+SPO2+EtCO2+RESP 11. ECG+SPO2+IP+RESP+TEMP 12. ECG+SPO2+IP+RESP 13. ECG+RESP+EtCO2+NIBP It's good to know who you can count on IN CONFIGURATIONS: See table below.
