Biological Safety Hood LBS-101

Biological Safety Hood LBS-101

Product catalog summary

Description: The Labotemp Biological Safety Hood LBS-101 is a Class I biological safety cabinet designed to provide a controlled negative-pressure work area for operator and environmental protection. It features a 60 L working capacity, airflow velocity of ≥0.5 m/s, and a dual filtration system with Active Carbon and HEPA filters. The unit is compact, with internal dimensions of 580 × 520 × 610 mm and external dimensions of 600 × 581 × 1060 mm, operating at 150 W.

Specifications:

General Specifications: Class I Biological Safety Cabinet, 60 L capacity, ≥0.5 m/s airflow velocity, negative pressure, Active Carbon + HEPA filtration.
Construction Parameters: 304 stainless steel work surface, cold-rolled steel body with antibacterial coating, toughened glass front window with manual operation.
Lighting & Control: LED display, LED lamp, 2 UV lamps, waterproof electrical socket.
Electrical & Performance: 150 W power consumption, ≤60 dB noise level, power supply options of 220 V ±10%, 50/60 Hz or 110 V ±10%, 60 Hz.
Shipping Dimension: Net weight 52Kg, gross weight 63Kg, package size 700x610x925mm.

Features: The LBS-101 offers a negative-pressure environment to contain airborne particles, dual filtration for air control, a hygienic and corrosion-resistant work surface, and an antibacterial powder-coated exterior. It includes a manual toughened-glass front window, LED lighting, dual UV lamps for decontamination, and a waterproof socket. Its compact design conserves laboratory space, and an optional base stand is available.

Applications: The cabinet is suitable for microbiology laboratories, clinical and diagnostic laboratories, pharmaceutical laboratories, research institutes, and healthcare facilities. It supports procedures requiring controlled containment and filtration of potentially contaminated materials.

Standard Accessories: Active Carbon Filter, HEPA Filter, LED Lamp, 2 UV Lamps, Waterproof Socket.

Optional Accessories: Base Stand.

Catalog excerpts

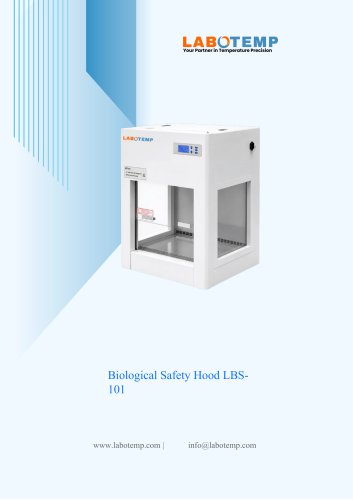

LABOTEMP Your Partner in Temperature Precision Biological Safety Hood LBS-101 www.labotemp.com | [email protected]

Open the catalog to page 1

Description: Labotemp Biological Safety Hood LBS-101 provides a controlled negativepressure environmental protection. This Class I biological safety cabinet features a 60 L working capacity, ≥0.5 m/s airflow velocity, and Active Carbon +HEPA filtration to support controlled handling of potentially contaminated materials. The unit has an internal size of 580 × 520 × 610 mm, external dimensions of 600 × 581 × 1060 mm, and operates at just 150 W, making it suitable for laboratories requiring compact containment equipment with efficient operation. Its negative-pressure design draws air inward through...

Open the catalog to page 2

General Specifications

Open the catalog to page 3

Active Carbon + HEPA Filter Negative-pressure working environment helps contain potentially contaminated airborne particles. Class I biological safety cabinet design focuses on operator and environmental protection. Active carbon and HEPA filtration supports controlled air filtration within the cabinet. 304 stainless steel work surface provides a hygienic and corrosion-resistant working area. Antibacterial powder-coated exterior improves durability and facilitates routine cleaning. Manual toughened-glass front window provides access to the working area while

Open the catalog to page 4

maintaining enclosure. LED lighting provides clear illumination during laboratory procedures. Dual UV lamps support interior decontamination procedures when the cabinet is not in use. Waterproof electrical socket allows convenient connection of compatible laboratory equipment. LED display provides clear monitoring of operating information. Compact design helps conserve valuable laboratory workspace. Optional base stand allows the cabinet to be positioned at a suitable working height. Designed for microbiological and laboratory applications requiring controlled containment conditions. Applications:...

Open the catalog to page 5

Sample Preparation: Suitable for handling and preparation of compatible biological samples where controlled airflow and filtration are required. Active Carbon Filter HEPA Filter LED Lamp UV Lamp x2 Waterproof Socket Base Stand Your Partner in Temperature Precision 144 E, Midwest Avenue, Casper WY 82601, USA Website: www.labotemp.com | Email: [email protected]

Open the catalog to page 6
