Ducted Fume Hood LFH-02

Ducted Fume Hood LFH-02

Product catalog summary

Description: The Labotemp Ducted Fume Hood LFH-02 is a high-performance laboratory fume hood designed for the safe and efficient removal of hazardous fumes, vapors, and airborne contaminants. It is suitable for chemical analysis, pharmaceutical research, academic laboratories, quality control, and industrial testing facilities. The hood features an external ducted exhaust system with adjustable face velocity (0.25–0.45 m/s) to maintain a clean workspace. Integrated utilities such as water, gas, and electrical connections enhance workflow efficiency.

Construction: The LFH-02 is constructed with a durable all-steel body and a corrosion-resistant stainless steel work surface. It includes a vertically sliding tempered glass sash for visibility and protection, a built-in sink, ventilation system, UV lamp, and multifunction power sockets.

Specifications:

Performance: Adjustable face velocity (0.25–0.45 m/s), intake pressure >0.5 Pa, maximum power 400 W, UV lamp 28 W.
Construction & Utilities: All-steel body, vertically sliding tempered glass sash, stainless steel sink, integrated water and gas taps, ducted exhaust system.
Electrical & Physical: Power supply AC single phase, 220V, 50Hz, working area 1030 × 660 × 680 mm, overall dimensions 1200 × 740 × 1950 mm, net weight 150 kg.

Features: The fume hood offers adjustable airflow, heavy-duty construction, integrated utilities, multifunction power sockets, low-noise exhaust fan, stainless steel sink, quick-opening water valve, spacious work area, and smooth interior surfaces for easy cleaning.

Applications: The LFH-02 is ideal for safely exhausting hazardous chemical fumes during laboratory experiments, chemical preparation, titration, synthesis, and analytical testing. It is suitable for pharmaceutical, biotechnology, environmental, and research laboratories, as well as academic teaching laboratories.

Catalog excerpts

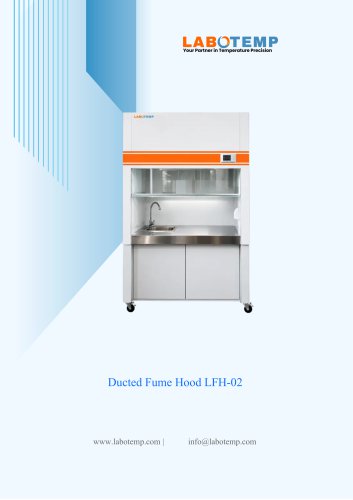

LABOTEMP Your Partner in Temperature Precision Ducted Fume Hood LFH-02 www.labotemp.com | [email protected]

Open the catalog to page 1

Description: Labotemp Ducted Fume Hood LFH-02 is a high-performance laboratory fume hood designed to provide safe and efficient removal of hazardous fumes, vapors, and airborne contaminants generated during laboratory procedures. Built as a reliable chemical fume hood, it is ideal for chemical analysis, pharmaceutical research, academic laboratories, quality control, and industrial testing facilities. The external ducted exhaust system delivers adjustable face velocity from 0.25–0.45 m/s, helping maintain a clean and protected workspace while supporting consistent laboratory operations. Its integrated...

Open the catalog to page 2

✓ Trusted manufacturer: Labotemp is an experienced manufacturer of laboratory equipment, delivering dependable quality and performance for research, pharmaceutical, academic, and industrial laboratories.

Open the catalog to page 3

Adjustable Airflow Heavy-duty all-steel construction for long-term durability and chemical resistance. Adjustable face velocity of 0.25[Q.45 m/s for efficient fume containment. Integrated water, gas, electricity, and ventilation system for laboratory convenience. Multifunction laboratory power sockets for auxiliary equipment. Vertically sliding tempered glass sash for safe and ergonomic operation. Low-noise exhaust fan efficiently removes harmful gases and vapors. Stainless steel sink with drainage system for washing and waste disposal. Quick-opening water valve for convenient laboratory operation....

Open the catalog to page 4

contaminants during laboratory experiments. Chemical preparation, titration, synthesis, and analytical testing requiring ducted ventilation. Pharmaceutical, biotechnology, environmental, and research laboratories handling volatile reagents. Academic teaching laboratories performing routine chemical experiments. Sample preparation involving acids, solvents, and corrosive chemicals requiring operator protection. 144 E, Midwest Avenue, Casper WY 82601, USA Website: www.labotemp.com | Email: [email protected]

Open the catalog to page 5
