Hydrogen Peroxide Plasma Sterilizer LPP-104

Product catalog summary

Description: The Labotemp Hydrogen Peroxide Plasma Sterilizer LPP-104 is designed for low-temperature sterilization of heat- and moisture-sensitive medical and laboratory equipment. It operates using hydrogen peroxide vapor/plasma technology at temperatures between 45°C and 55°C, suitable for instruments that cannot withstand high-temperature steam processes. The sterilizer has a total volume of 245 L and an effective chamber volume of 203 L, with a minimum chamber vacuum level of 55 Pa. It features precise hydrogen peroxide dosing and supports efficient sterilization cycles.

Specifications:

General Specifications: Total volume of 245 L, effective volume of 203 L, rectangular chamber shape, operating temperature of 45°C to 55°C, and a minimum vacuum level of 55 Pa.
Sterilization & Performance: Detection mode uses 44 points, standard mode lasts 71 minutes 30 seconds, with hydrogen peroxide volumes of 7 mL and 14 mL per cycle respectively.
Chamber & Storage: Chamber dimensions are 450 × 680 × 800 mm, with four storage racks supporting a total load capacity of 40 kg.
Control & Recording: Features a 10-inch TFT true-color touchscreen and a built-in dot-matrix printer for data recording and inquiry.
Dimensions & Weight: Overall dimensions are 1785 × 1000 × 1090 mm, with a net weight of 460 kg.
Electrical Specifications: Power supply options include 110–220 V, 50/60 Hz, and 3N~380 V, 50 Hz.

Features: The LPP-104 offers controlled hydrogen peroxide dosing, a vacuum-based sterilization process, and a robust chamber material for long-term use. It includes a 10-inch touchscreen for operation and monitoring, and a dot-matrix printer for process documentation.

Applications: This sterilizer is suitable for low-temperature sterilization of heat- and moisture-sensitive equipment in hospitals, operating rooms, medical device processing, laboratories, pharmaceutical facilities, and dental clinics.

Catalog excerpts

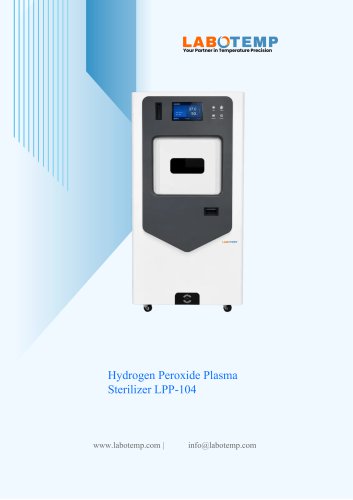

Hydrogen Peroxide Plasma Sterilizer LPP-104-1

LABOTEMP Your Partner in Temperature Precision Hydrogen Peroxide Plasma Sterilizer LPP-104 www.labotemp.com | [email protected]

Open the catalog to page 1

Hydrogen Peroxide Plasma Sterilizer LPP-104-2

Labotemp Hydrogen Peroxide Plasma Sterilizer LPP-104 delivers low-temperature sterilization for heat- and moisture-sensitive medical and laboratory equipment using hydrogen peroxide vapor/plasma technology. With a 245 L total volume and 203 L effective chamber volume, it operates at 45°C to 55°C, making it suitable for sterilizing compatible instruments that cannot withstand conventional high-temperature steam processes. The system reaches a minimum chamber vacuum level of 55 Pa and uses controlled hydrogen peroxide dosing of 7 mL per detection cycle or 14 mL per standard cycle. Detection mode...

Open the catalog to page 2

Hydrogen Peroxide Plasma Sterilizer LPP-104-3

General Specifications

Open the catalog to page 3

Hydrogen Peroxide Plasma Sterilizer LPP-104-5

Dimensions & Weight Low-temperature hydrogen peroxide plasma sterilization for compatible heat- and moisture-sensitive equipment. Controlled sterilization chamber temperature of 45°C to 55°C. 203 L effective chamber volume supports practical batch processing. Controlled hydrogen peroxide dosing for detection and standard sterilization modes. Vacuum-based sterilization process with a minimum chamber vacuum level of 55 Pa. Four storage levels provide organized placement of sterilization loads. 40 kg total storage capacity with up to 10 kg load per level. 10-inch TFT true-color touchscreen provides...

Open the catalog to page 5

Hydrogen Peroxide Plasma Sterilizer LPP-104-6

printed. Rectangular sterilization chamber provides practical internal space utilization. Swivel casters with brakes facilitate positioning while keeping the unit stable during operation. Designed for short-term loading and continuous operation. Robust 6061 chamber material and Q235 outer shell construction support longterm use. Applications: Hospitals & Healthcare Facilities: Suitable for low-temperature sterilization of compatible heat- and moisture-sensitive medical equipment. Operating Rooms & Surgical Departments: Supports sterilization of suitable surgical instruments and equipment that...

Open the catalog to page 6
