Industrial Blast Drying Oven FOV-28

Industrial Blast Drying Oven FOV-28

Product catalog summary

Description: The Labotemp Industrial Blast Drying Oven FOV-28 is designed for high-capacity heating, drying, baking, thermal aging, and heat treatment. It features a 620 L chamber with a temperature range from ambient to 300°C, ensuring stable and uniform thermal conditions. Key technologies include a rear-circulation air duct, multi-fan forced convection, and quartz glass-enclosed infrared heating for consistent temperature distribution.

Specifications: The oven has a chamber capacity of 620 L, internal dimensions of 700 × 600 × 1500 mm, and external dimensions of 820 × 760 × 1930 mm. It is constructed with SGCC/SUS stainless steel and rock wool insulation. The oven includes 4 heaters with a total power of 5600 W, a 5-inch LCD controller, and optional IoT connectivity. It offers a temperature resolution of 0.1°C and control accuracy of ±0.5°C.

Features: The FOV-28 includes an LCD Smart PID Control, optimized air circulation, double-point door locking, thickened insulation, and quartz glass heating. It supports adjustable shelf positioning, a large viewing window, and a built-in ventilation system. The oven is designed for continuous-duty operation and offers optional IoT connectivity for remote monitoring.

Applications: The oven is suitable for various industries, including pharmaceuticals, research laboratories, electronics manufacturing, chemical industry, automotive & aerospace, and food & environmental laboratories. It is used for drying, curing, thermal aging, and quality control testing.

Optional Accessories: IoT Smart Controller with Mobile App Monitoring and Wi-Fi Remote Monitoring & Control Module are available.

Catalog excerpts

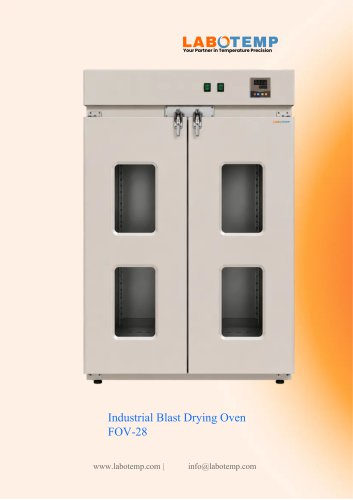

Industrial Blast Drying Oven FOV-28 www.labotemp.com |

Open the catalog to page 1

Description: Labotemp Industrial Blast Drying Oven FOV-28 is a high-capacity blast drying oven engineered for precise heating, drying, baking, thermal aging, and heat treatment applications in laboratories, research institutes, pharmaceutical facilities, electronics manufacturing, and industrial production environments. Featuring a spacious 620 L chamber and an operating temperature range from ambient to 300°C, this industrial oven provides stable and uniform thermal conditions for processing large batches of samples, components, and materials. The optimized rear-circulation air duct, multi-fan...

Open the catalog to page 2

optimized air circulation ensure excellent temperature consistency. □Advanced Smart Control: 5-inch LCD PID controller with programmable timing, alarms, and optional IoT remote monitoring.

Open the catalog to page 3

Optimized multi-fan air circulation system ensures consistent airflow throughout the chamber for improved drying uniformity. Double-point door locking mechanism enhances chamber sealing and minimizes heat leakage during operation. Thickened insulation structure improves thermal retention and reduces energy consumption. Quartz glass enclosed infrared heating design provides safer and more efficient heat transfer. Reinforced cabinet construction offers greater structural strength and durability for long-term industrial use. Adjustable shelf positioning allows flexible accommodation of different...

Open the catalog to page 5

Real-time monitoring and alarm functions enhance operational safety and process reliability. Corrosion-resistant chamber construction ensures dependable performance in demanding laboratory and industrial environments. Optimized air duct design improves heat distribution and minimizes temperature variation across the chamber. Designed for continuous-duty operation in laboratories, quality control facilities, manufacturing plants, and research environments. Optional IoT connectivity supports remote monitoring, alarm notification, and mobile-based equipment management. Applications: Pharmaceutical...

Open the catalog to page 6

Your Partner in Temperature Precision 144 E, Midwest Avenue, Casper WY 82601, USA Website: www.labotemp.com | Email: [email protected]
