Labotemp Systems
Kjeldahl Digestion Unit LMD-201

Kjeldahl Digestion Unit LMD-201

Product catalog summary

Description: The Labotemp Kjeldahl Digestion Unit LMD-201 is a high-performance block digestion system designed for efficient sample digestion before Kjeldahl nitrogen and protein analysis. It features a 20-position capacity, a temperature range from RT+5°C to 450°C, and ±1°C accuracy. The unit uses infrared graphite heating and PID temperature control for rapid heating, improving digestion efficiency. It includes 300 mL digestion tubes, corrosion-resistant components, and advanced insulation for stable performance.

Specifications: The unit has a 300 mL digestion tube capacity, operates within a temperature range of RT+5°C to 450°C, and requires an AC 220 V ±10%, 50 Hz power supply with a power consumption of 3.6 kW. It can process 20 samples per batch using infrared heating and high-purity graphite conduction. The dimensions are 515 × 458 × 730 mm, with a net weight of 40 kg.

Features: The unit offers a 500 program memory, a triple-stage filtration system, a dedicated water-jet vacuum pump, adjustable negative suction pressure, and a corrosion-resistant acid collection system. It also includes advanced ceramic and air-duct insulation, an integrated sample cooling rack, and comprehensive multi-level safety protection.

Applications: The unit is suitable for Kjeldahl sample digestion in various laboratories, supporting nitrogen and protein analysis, quality control, regulatory testing, and research. It is designed for accurate, programmable, high-temperature digestion with consistent sample preparation.

Catalog excerpts

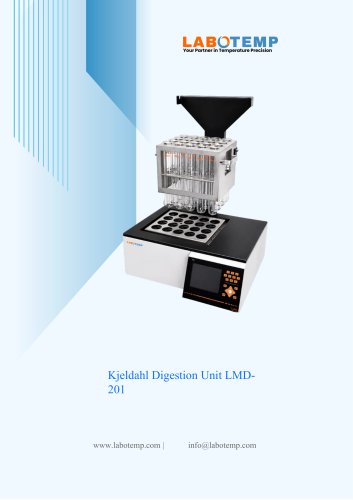

Kjeldahl Digestion Unit LMD201

Open the catalog to page 1

Description: Labotemp Kjeldahl Digestion Unit LMD-201 is a high-performance block digestion system designed for rapid and efficient sample digestion prior to Kjeldahl nitrogen and protein analysis. Featuring a 20-position digestion capacity, temperature range from RT+5°C to 450°C, and ±1°C temperature accuracy, this advanced digestor Kjeldahl ensures uniform heating and consistent digestion of food, feed, fertilizer, soil, water, pharmaceutical, and environmental samples. Its infrared graphite heating technology, combined with PID temperature control, enables rapid heating from room temperature...

Open the catalog to page 2

customizable heating profiles. □ Enhanced Laboratory Safety: Triple filtration, condensate recovery, and multiple protection systems ensure safe, reliable operation.

Open the catalog to page 3

Features: 500 Program Memory Triple-Stage Filtration System effectively reduces acid fumes while recovering condensate for a cleaner laboratory environment. Dedicated Water-Jet Vacuum Pump enables efficient acid vapor extraction without requiring lubrication or additional electrical power. Adjustable Negative Suction Pressure prevents acid overflow and enhances safe operation during digestion. Corrosion-Resistant Acid Collection System minimizes chemical damage and extends equipment service life. Advanced Ceramic and Air-Duct Insulation improves thermal efficiency while reducing external surface...

Open the catalog to page 4

Your Partner in Temperature Precision 144 E, Midwest Avenue, Casper WY 82601, USA Website: www.labotemp.com | Email: [email protected]

Open the catalog to page 5
