Laboratory Freezer LDF-12

Laboratory Freezer LDF-12

Product catalog summary

Description:
The Labotemp Laboratory And Deep Freezer LDF-12 is a high-capacity chest freezer designed for the reliable storage of temperature-sensitive materials. It offers a 770L capacity with an adjustable temperature range from -25°C to -60°C, ideal for preserving biological samples, reagents, vaccines, and research materials. The freezer features a high-efficiency Secop compressor and a direct cooling system for consistent low temperatures and quick recovery after door openings. A digital tube display with a PT1000 probe ensures accurate temperature monitoring, while an integrated buzzer and flashing alarm system alert users to temperature deviations.

Construction and Design:
The freezer is built for demanding laboratory environments with 100 mm thick insulation for efficient temperature retention and reduced energy loss. The interior chamber is made of 304 stainless steel for durability and hygiene, and the outer body is coated with epoxy polyester powder for corrosion resistance. It operates on 220V/50Hz power, making it suitable for research labs and biotechnology centers.

Key Features:

Adjustable temperature range of -25°C to -60°C for reliable preservation.
Large 770L capacity for organized storage of large sample volumes.
Durable construction with stainless steel chamber and thick insulation.
High-efficiency Secop compressor and direct cooling system.
Digital tube display and PT1000 probe for precise temperature monitoring.
Buzzer and flashing alarm system for temperature deviation alerts.

Specifications:

Type: Chest Deep Freezer
Capacity: 770 Liters
Number of Doors: 1 Lid
Sliding Baskets: Yes, 2 Sets
Temperature Control: KELD Controller
Temperature Display: Digital Tube Display
Compressor: Secop
Cooling System: Direct Cooling
Refrigerant: Mixed Refrigerant
Power Supply: 220V / 50Hz AC
Power: 550 W
Power Consumption: 10 kW / 24h
Climate Type: N
Insulation Thickness: 100 mm
Interior Material: 304 Stainless Steel
Exterior Material: Epoxy Polyester Powder Coated Steel Plate
External Dimensions: 1894 × 1005 × 985 mm
Internal Dimensions: 1686 × 690 × 680 mm
Net / Gross Weight: 158 kg / 212 kg
Packaging Size: 1994 × 1085 × 1135 mm

Applications:

Biological Sample Storage: Safe preservation of blood samples, plasma, serum, and other biological specimens.
Pharmaceutical Storage: Ideal for storing vaccines, medicines, and temperature-sensitive pharmaceutical products.
Research Laboratories: Suitable for long-term storage of enzymes, reagents, and experimental materials.
Hospitals & Diagnostic Centers: Reliable storage of medical samples used in testing and clinical research.
Food Processing & Aquatic Freezing: Used in seafood processing, aquatic freezing, and catering industries.
Premium Food Ingredient Storage: Suitable for storing high-grade ingredients like tuna, salmon, and black truffles.

Catalog excerpts

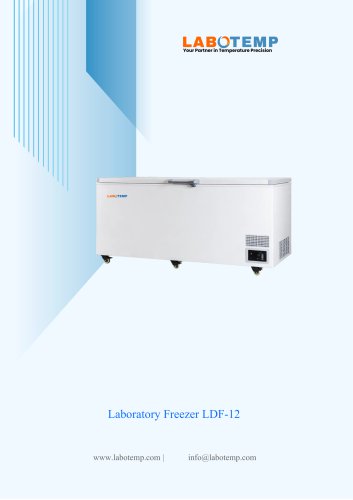

LABOTEMP Your Partner in Temperature Precision Laboratory Freezer LDF-12 www.labotemp.com | [email protected]

Open the catalog to page 1

Description: Labotemp Laboratory And Deep Freezer LDF-12 is a high-capacity laboratory chest freezer designed for reliable storage of temperaturesensitive materials. With a 770L capacity and an adjustable temperature range of -25°C to -60°C, it provides stable conditions for preserving biological samples, reagents, vaccines, and research materials. The unit uses a high-efficiency Secop compressor with a direct cooling system to maintain consistent low temperatures and fast recovery after door opening. A digital tube display with PT1000 probe enables accurate monitoring, while the integrated buzzer...

Open the catalog to page 2

Ultra Low Temp Storage Large 770L storage capacity suitable for laboratories and medical facilities Wide temperature range (-25°C to -60°C) for safe storage of sensitive samples High-efficiency Secop compressor ensures reliable and stable cooling performance Direct cooling system for uniform low-temperature preservation Digital tube display allows easy monitoring of internal temperature PT1000 temperature probe provides precise temperature measurement Buzzer and flashing alarm system alerts users during temperature deviation 100 mm thick insulation layer improves temperature stability and energy...

Open the catalog to page 4

temperature-sensitive pharmaceutical products. Research Laboratories: Suitable for long-term storage of enzymes, reagents, and experimental materials. Hospitals & Diagnostic Centers: Reliable storage of medical samples used in testing and clinical research. Food Processing & Aquatic Freezing: Used in seafood processing, aquatic freezing, and catering industries. Premium Food Ingredient Storage: Suitable for storing tuna, salmon, Arctic shrimp, Australian lobster, king crab, sea cucumber, Wagyu cattle products, black truffles, foie gras, and other high-grade ingredients. 144 E, Midwest Avenue,...

Open the catalog to page 5
