Pharmaceutical And Vaccine Refrigerator PHR-21

Product catalog summary

Description: The Labotemp Pharmaceutical and Vaccine Refrigerator PHR-21 is designed for the safe storage of temperature-sensitive healthcare products such as vaccines, medicines, and biological samples. It operates within a stable temperature range of 2°C to 8°C, ensuring reliable cooling performance for various healthcare facilities. Key features include a microprocessor-controlled system, NTC temperature sensor, and forced-air cooling technology for uniform temperature distribution. The refrigerator also has an auto-defrost function and adjustable shelves for flexible storage.

Design and Safety Features: The PHR-21 is built for long-term operation with a double-layer insulated glass door, inner acrylic door system, and energy-efficient R600a refrigerant. It includes a digital display for temperature monitoring and alarms for high/low temperature conditions and door openings. Additional safety features are a door lock, password-protected settings, backup battery support, and lockable caster wheels.

Specifications: The refrigerator has a capacity of 100 L, with a temperature range of 2°C to 8°C and ambient temperature suitability of 10°C to 32°C. It operates on AC 110/220V power supply, consuming 80 W. The unit features a glass door, automatic defrost system, and a digital display. It includes alarms for temperature and door ajar conditions, with a 10-hour power failure backup alarm. The internal material is HIPS, and the external material is electro-galvanized steel with antimicrobial powder coating. It has three shelves and emits sound at 50 dB.

Features: The PHR-21 uses R600a eco refrigerant and a microprocessor-based controller for accurate temperature regulation. The NTC temperature sensor provides continuous monitoring, while the forced-air circulation system ensures uniform temperature distribution. The refrigerator has a double-layer toughened glass door for insulation and visibility, internal acrylic door panels to reduce temperature fluctuations, and a digital LED temperature display. It also features a lockable door design, password-protected control settings, and lockable universal casters for mobility.

Applications: The PHR-21 is suitable for storing vaccines, medicines, reagents, and biological samples in hospitals, pharmacies, vaccination centers, diagnostic laboratories, blood collection facilities, and research institutes. It supports temperature-controlled storage for clinical testing, pharmaceutical quality assurance, laboratory workflows, and healthcare cold-chain management.

Optional Accessories: USB Port and Data Logger.

Catalog excerpts

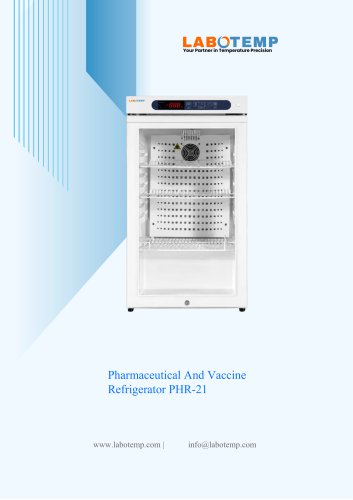

Pharmaceutical And Vaccine Refrigerator PHR-21

Open the catalog to page 1

Description: Labotemp Pharmaceutical and Vaccine Refrigerator PHR-21 is a purpose-built pharmacy refrigerator designed for the safe storage of vaccines, temperature-sensitive healthcare products. Operating within a stable 2°C to 8°C temperature range, this medical refrigerator provides reliable cooling performance for hospitals, clinics, pharmacies, blood collection centers, research laboratories, and diagnostic facilities. The microprocessor-controlled system, NTC temperature sensor, and forced-air cooling technology work together to maintain uniform temperature distribution throughout the 100...

Open the catalog to page 2

Pharmaceutical And Vaccine Refrigerator PHR-21-3

□ Advanced Safety Protection: Audible and visual alarms, backup battery support, and secure door locking enhance storage security. □ Energy-Efficient Design: Eco-friendly R600a refrigerant, insulated glass door, and auto-defrost system support efficient operation.

Open the catalog to page 3

Pharmaceutical And Vaccine Refrigerator PHR-21-4

Microprocessor-Based Controller ensures accurate temperature regulation and reliable operation. NTC Temperature Sensor provides continuous monitoring and responsive temperature feedback. Forced-Air Circulation System promotes uniform temperature distribution across

Open the catalog to page 4

Pharmaceutical And Vaccine Refrigerator PHR-21-5

all shelf levels. Automatic Defrost Function minimizes maintenance and maintains cooling efficiency. Double-Layer Toughened Glass Door offers excellent insulation while allowing clear product visibility. Internal Acrylic Door Panels help reduce temperature fluctuations during frequent access. Digital LED Temperature Display enables real-time monitoring of operating conditions. Lockable Door Design restricts unauthorized access to stored materials. Password-Protected Control Settings prevent accidental parameter changes. Three Adjustable Storage Shelves allow flexible arrangement of stored products....
