Pharmaceutical And Vaccine Refrigerator PHR-22

Product catalog summary

Description: The Labotemp Pharmaceutical and Vaccine Refrigerator PHR-22 is designed for the safe storage of temperature-sensitive pharmaceutical products. It features a 515 L capacity and maintains a temperature range of 2°C to 8°C using an electronic control system with an NTC sensor. The refrigerator ensures uniform cooling through a forced air system and uses eco-friendly R290 refrigerant for energy efficiency. It includes an auto-defrost function to minimize maintenance.

Design and Features: The PHR-22 has a double-layer tempered glass door with Low-E coating for insulation and visibility. It includes adjustable shelves for flexible storage and multiple alarms for safety. The exterior is made of durable powder-coated steel, and the interior is corrosion-resistant aluminum. Additional features include USB data export, temperature recorder compatibility, and a remote alarm interface.

Specifications: The refrigerator operates on a 220–240 V power supply, consuming 420 W. It has a noise level of 46 dB and dimensions of 800 × 730 × 1970 mm. It includes one compressor, seven shelves, and supports a daily power consumption of 2.85 kWh/24 h.

Applications: Suitable for hospitals, pharmacies, vaccination centers, and research facilities, the PHR-22 is ideal for storing vaccines, medicines, reagents, and biological samples requiring stable cold-chain conditions.

Standard Accessories: The refrigerator comes with foot pieces, castors, a glass door lock, a test hole, a lamp, a USB port, a temperature recorder, and a remote alarm port.

Catalog excerpts

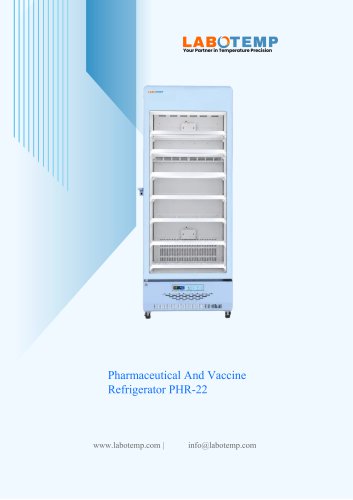

Pharmaceutical And Vaccine Refrigerator PHR-22-1

LABOTEMP Your Partner in Temperature Precision Pharmaceutical And Vaccine Refrigerator PHR-22 www.labotemp.com | [email protected]

Open the catalog to page 1

Pharmaceutical And Vaccine Refrigerator PHR-22-2

Description: Labotemp Pharmaceutical and Vaccine Refrigerator PHR-22 is a highperformance Pharmacy Refrigerator designed for the safe storage of vaccines, medicines, reagents, biological samples, and temperaturesensitive pharmaceutical products. Featuring a 515 L capacity, an operating temperature range of 2°C to 8°C, and an electronic temperature control system with an NTC sensor, it delivers stable and uniform cooling for hospitals, pharmacies, vaccination centers, clinical laboratories, and research facilities. The forced air cooling system with a centrifugal fan and 3D air circulation ensures...

Open the catalog to page 2

Pharmaceutical And Vaccine Refrigerator PHR-22-3

□ Precise 2SC to 8SC Storage: Electronic temperature control with forced-air circulation for uniform pharmaceutical storage. □ Energy-Efficient Cooling: Eco-friendly R290 refrigerant and autodefrost system ensure reliable, low-maintenance operation. □ Flexible Storage Design: Adjustable shelves and high-visibility tempered glass door maximize storage capacity and accessibility

Open the catalog to page 3

Pharmaceutical And Vaccine Refrigerator PHR-22-4

Eight adjustable storage shelves provide flexible interior organization for different container sizes. Automatic defrost system minimizes frost accumulation and maintains continuous refrigeration performance. Powder-coated cold-rolled steel exterior offers durability and resistance to daily wear in medical environments. Corrosion-resistant powder-coated aluminum interior ensures long service life and easy cleaning. Equipped with a comprehensive alarm system, including high/low temperature, power failure, thermostat fault, condenser fault, ambient temperature, door ajar, and backup battery alarms....

Open the catalog to page 4

Pharmaceutical And Vaccine Refrigerator PHR-22-5

clinical and laboratory settings. Advanced electronic temperature controller with an NTC sensor for responsive and accurate temperature monitoring. PHR-22 is suitable for hospitals, pharmacies, vaccination centers, blood banks, clinical and diagnostic laboratories, pharmaceutical manufacturers, research institutes, and biotechnology facilities for the safe storage of vaccines, medicines, reagents, biological samples, and temperature-sensitive pharmaceutical products requiring stable 2°C to 8°C cold-chain conditions with continuous monitoring and alarm protection. 1 PC Glass Outer Door Lock 1...

Open the catalog to page 5
