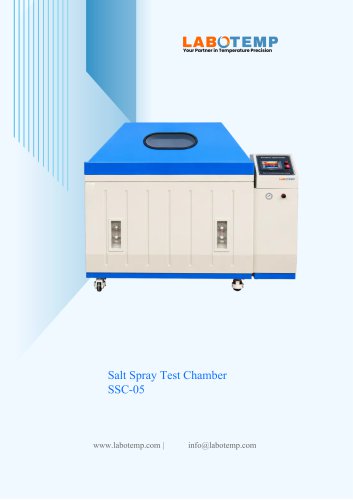

Salt Spray Test Chamber SSC-05

Salt Spray Test Chamber SSC-05

Product catalog summary

Description: The Labotemp Salt Spray Test Chamber SSC-05 is designed for accelerated corrosion testing of various materials, including metal components and coated surfaces. It features a 1280 L test chamber with a temperature range from ambient to +60°C and a temperature fluctuation of ±0.5°C. The chamber complies with ASTM B117, ISO 9227, and MIL-STD-810 standards, ensuring reliable and repeatable test results.

Key Features:

Uniform Salt Fog Distribution: Dual-side atomizer spray system with adjustable spray volume.
Accurate Temperature Control: PID controller with ±0.5°C temperature fluctuation.
Reliable & Durable Construction: Glass fiber-reinforced chamber and corrosion-resistant components.

Specifications:

Chamber & Capacity: 1280 L interior volume, dimensions 1000 × 1600 × 800 mm.
Testing Performance: Temperature range ambient to +60°C, salt fog deposition 1–2 mL / 80 cm² / h.
Control & Construction: PID programmable controller, PT100 temperature sensor, nichrome heater.
Electrical & Environmental: Power supply 204 V, 60 Hz, 3 Phase, operating temperature 5°C to 35°C.

Applications: The chamber is used in various industries such as automotive, aerospace, electronics, marine, and industrial manufacturing for testing corrosion resistance and durability of components and materials.

Standard Accessories: Includes an external salt solution tank, fog collection cylinder, quartz spray nozzles, and a PID programmable touchscreen controller.

Optional Accessories: Consumables like industrial salt and spare parts such as spray nozzles and measuring cylinders are available.

Catalog excerpts

Salt Spray Test Chamber SSC-05

Open the catalog to page 1

Description: Labotemp Salt Spray Test Chamber SSC-05 is a high-capacity salt spray chamber designed for accelerated corrosion testing of metal components, coated surfaces, automotive parts, marine hardware, electronic assemblies, and industrial materials. With a 1280 L test chamber, ambient to +60°C workroom and salt solution temperature range, and ±0.5°C temperature fluctuation, this advanced salt spray test machine delivers stable and repeatable corrosion testing in accordance with ASTM B117, ISO 9227, and MIL-STD-810 standards. Its dual-side atomizer spray tower, adjustable continuous or periodic...

Open the catalog to page 2

temperature fluctuation delivers stable and repeatable testing conditions. □Reliable & Durable Construction: Glass fiber-reinforced chamber, pneumatic sealing, quartz spray nozzles, and corrosion-resistant components provide long service life with minimal maintenance.

Open the catalog to page 3

Large 1280 L Test Chamber: Spacious interior accommodates large components and multiple specimens for high-capacity corrosion testing. Uniform Salt Fog Distribution: Dual-side atomizer spray towers provide consistent and even salt mist coverage throughout the chamber for reliable test results. Precise Temperature Control: PID controller maintains workroom and salt solution temperatures up to +603C with -0.53C temperature fluctuation for stable testing conditions. Continuous & Periodic Spray Modes: Supports both continuous and cyclic spray operation to meet different corrosion testing requirements....

Open the catalog to page 5

dry-burn protection, and liquid level monitoring to ensure safe and reliable operation. Applications: Automotive Industry Evaluates the corrosion resistance of vehicle components, fasteners, body panels, brake parts, and protective coatings under accelerated salt fog conditions. Aerospace & Defense Tests structural components, aircraft hardware, fasteners, and protective surface treatments to ensure long-term durability in harsh environments. Electronics & Electrical Equipment Assesses corrosion resistance of connectors, enclosures, circuit components, terminals, and electronic assemblies exposed...

Open the catalog to page 6

Supports product qualification, quality assurance, and durability testing of metal parts, hardware, tools, and industrial assemblies before market release. Research & Material Development Used in research laboratories and R&D facilities to develop, compare, and validate corrosion-resistant materials, coatings, and surface treatment technologies. Standard Accessories External salt solution tank (78 L) with brine mixing system Fog collection cylinder Fog collector Quartz spray nozzles Saturated air barrel (31 L) Sample holding rods with V-shaped grooves Pneumatic lid opening and sealing system...

Open the catalog to page 7

Saturated barrel heating tube Spray nozzle Measuring cylinder Solid-state relay Contactor Your Partner in Temperature Precision 144 E, Midwest Avenue, Casper WY 82601, USA Website: www.labotemp.com | Email: [email protected]

Open the catalog to page 8
