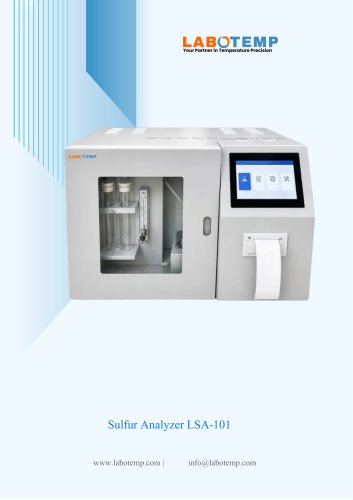

Sulfur Analyzer LSA-101

Sulfur Analyzer LSA-101

Product catalog summary

Description:
The Labotemp Sulfur Analyzer LSA-101 is a high-precision instrument designed for the automated determination of total sulfur content in various materials such as coal, coke, fuels, and industrial materials. It operates on the principle of coulometric titration, ensuring stable and repeatable measurements with minimal operator intervention. This analyzer is ideal for use in power plants, mining laboratories, metallurgy, and research facilities where reliable sulfur analysis is crucial for quality control and regulatory compliance. It features automatic temperature control, intelligent sample handling, and real-time data processing, providing fast analysis cycles with high resolution.

Specifications:
- Sulfur Measurement Range: 0.01% – 40%
- Measurement Resolution: 0.001%
- Analysis Time: 3 – 6 minutes
- Heating Time: < 30 minutes
- Test Temperature: 1150°C (coal), 920°C (oil)
- Sample Weight: < 100 mg
- Furnace Type: High-temperature furnace
- Max Working Temperature: ≤ 1200°C
- Constant Temperature Zone Length: ≥ 90 mm
- Heating Element: Double-thread silicon carbon tube
- Electrolytic Cell Volume: 400 ml
- Electrode Material: White gold
- Control System: Microcomputer-based automatic control
- Power Supply: AC 220V ±10%, 50Hz
- Power Consumption: < 3.5 kW

Features:
- Fully automatic operation with microcomputer-based control
- High precision measurement with a resolution of up to 0.001%
- Fast analysis time of approximately 3–6 minutes per sample
- Automatic titration endpoint detection
- Intelligent airflow control for stable results
- Non-contact sample delivery system
- Environmental deviation auto-compensation
- Built-in data storage for up to 100 records
- LCD display for real-time monitoring
- Inbuilt printer support for test data
- Supports offline operation

Applications:
- Coal Industry Testing: Determines sulfur content for quality grading and emission control
- Petroleum & Oil Analysis: Measures sulfur in crude oil and fuels for compliance
- Metallurgical & Steel Industry: Analyzes sulfur in ores and steel
- Cement & Building Materials: Monitors sulfur levels in raw materials
- Chemical & Fertilizer Industry: Determines sulfur in compounds and raw materials
- Environmental Monitoring: Supports analysis to meet pollution control norms
- Research & Testing Laboratories: Used for precise sulfur analysis
- Mining & Mineral Processing: Evaluates sulfur content in minerals

Standard Accessories:
- Sample delivery rod
- Thermocouple
- Silicon carbon tube
- Reducing pipe
- Electrolytic cell set
- High-quality silicone tubing
- Quartz and porcelain boats
- Electrolyte
- Experimental tool kit

Catalog excerpts

Sulfur Analyzer LSA-101 www.labotemp.com |

Open the catalog to page 1

Description: Labotemp Sulfur Analyzer LSA-101 is a high-precision sulfur analyzer designed for accurate and automated determination of total sulfur content in coal, coke, fuels, and industrial materials. Built on the principle of coulometric titration, this sulfur analyzer machine ensures stable and repeatable measurements with minimal operator intervention. It is widely used in power plants, mining laboratories, metallurgy, and research facilities where reliable sulfur analysis is essential for quality control and regulatory compliance. Engineered for efficiency and consistency, this laboratory...

Open the catalog to page 2

Automated Analysis Fully automatic operation with microcomputer-based control system. High precision measurement with resolution up to 0.001%. Wide sulfur testing range from 0.01% to 40%. Fast analysis time (approx. 3-6 minutes per sample). Automatic titration endpoint detection ensuring accuracy. Automatic electrolysis switching to prevent over-electrolysis. Intelligent airflow control for stable and reliable results. High-temperature furnace with programmable heating system. Non-contact sample delivery system for safe operation. Environmental deviation auto-compensation for consistent results....

Open the catalog to page 5

Coal Industry Testing – Determines sulfur content in coal for quality grading, combustion efficiency, and emission control in thermal power plants Petroleum & Oil Analysis – Used to measure sulfur in crude oil, diesel, fuel oil, and lubricants to ensure compliance with environmental and refining standards Metallurgical & Steel Industry – Analyzes sulfur in ores, coke, and steel to control material quality and prevent brittleness in metal production Cement & Building Materials – Helps monitor sulfur levels in raw materials and clinker to maintain product quality and process stability Chemical...

Open the catalog to page 6

Quartz boat Porcelain boat Electrolyte Experimental tool kit (spoon + tweezers) Your Partner in Temperature Precision 144 E, Midwest Avenue, Casper WY 82601, USA Website: www.labotemp.com | Email: [email protected]

Open the catalog to page 7
