Labotemp Systems
Thermal Cyclic Chamber LCC-101

Thermal Cyclic Chamber LCC-101

Product catalog summary

Description: The Labotemp Thermal Cyclic Chamber LCC-101 is a high-performance environmental test chamber designed for rapid temperature change and thermal cycling applications. It is suitable for laboratories, electronics manufacturing, automotive testing, aerospace research, and quality control facilities. The chamber is engineered for Environmental Stress Screening (ESS) and provides precise temperature transitions to evaluate material durability, component reliability, and product performance under accelerated environmental conditions. It features a 100L chamber capacity with a temperature range from -70°C to +150°C.

Specifications:

Temperature Performance: Temperature range from -20°C to +150°C (optional ranges available), with a temperature fluctuation of ±0.5°C and a deviation of ±2.0°C. The cooling and heating rates are both 5°C/min.
Power Supply: 380V / 220V 50Hz.
Control and Safety: Features a mechanical compression refrigeration system, a programmable color LCD touchscreen controller with Ethernet connection and PC link, and multiple safety protections including over-temperature, over-current, refrigerant high-pressure, and earth leakage protection.
Dimensions and Shipping: Internal dimensions are 400 × 500 × 500 mm, with an overall dimension of 900 × 1050 × 1620 mm. The interior volume is 100 L, with a net weight of 335 kg and a gross weight of 403 kg.

Features:

Uniform airflow circulation for consistent temperature distribution.
High-quality insulated chamber construction to minimize heat loss.
Large observation window for monitoring samples during testing.
Durable SUS304 stainless steel chamber for corrosion resistance.
Heavy-duty caster wheels with locking mechanism for easy installation.
Modular refrigeration components for simplified maintenance.
Intelligent control system for programmable multi-step thermal cycling profiles.
Robust steel exterior with a protective powder-coated finish.
Integrated safety interlock and protective monitoring functions.

Applications:

Environmental Stress Screening: Identifies early-life failures and improves component reliability.
Electronics Testing: Evaluates electronic assemblies, sensors, and PCBs under repeated temperature transitions.
Automotive & Aerospace: Verifies durability and performance of components exposed to extreme temperature variations.
Material Testing: Assesses thermal expansion, contraction, and fatigue characteristics of engineering materials.
Research & Development: Supports thermal simulation studies, product development, and environmental testing.
Quality Control: Validates product reliability and performance before production and certification.

Catalog excerpts

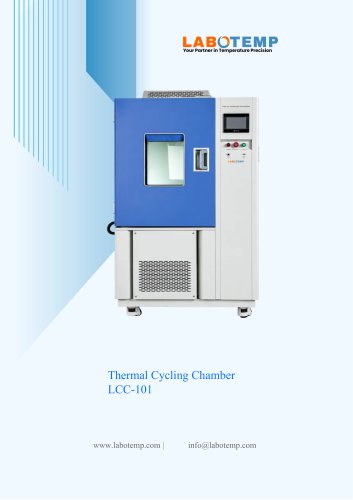

Thermal Cycling Chamber LCC-101

Open the catalog to page 1

Labotemp Thermal Cyclic Chamber LCC-101 is a high-performance environmental test chamber designed for rapid temperature change and thermal cycling applications in laboratories, electronics manufacturing, automotive testing, aerospace research, and quality control facilities. Engineered for Environmental Stress Screening (ESS), this thermal cycling chamber provides precise temperature transitions for evaluating material durability, component reliability, and product performance under accelerated environmental conditions. With a 100L chamber capacity and temperature ranges up to -70°C to +150°C,...

Open the catalog to page 2

Temperature Performance

Open the catalog to page 3

Uniform airflow circulation ensures consistent temperature distribution throughout the test chamber. High-quality insulated chamber construction minimizes heat loss and improves thermal efficiency. Equipped with a large observation window for convenient monitoring of samples during testing without interrupting operation. Durable SUS304 stainless steel chamber offers excellent corrosion resistance and long service life. Heavy-duty caster wheels with locking mechanism enable easy installation and secure positioning. Designed with modular refrigeration components for simplified maintenance and reliable...

Open the catalog to page 4

and uninterrupted testing operations. Applications: Environmental Stress Screening: Performs rapid thermal cycling to identify early-life failures and improve component reliability. Electronics Testing: Evaluates electronic assemblies, sensors, and PCBs under repeated temperature transitions. Automotive & Aerospace: Verifies durability and performance of components exposed to extreme temperature variations. Material Testing: Assesses thermal expansion, contraction, and fatigue characteristics of engineering materials. Research & Development: Supports thermal simulation studies, product development,...

Open the catalog to page 5

Website: www.labotemp.com | Email: [email protected]

Open the catalog to page 6
