Tri-Gas CO₂ Incubator LTG-103

Tri-Gas CO₂ Incubator LTG-103

Product catalog summary

Description: The Labotemp Tri-Gas CO₂ Incubator LTG-103 is a sophisticated incubator designed for precise environmental control in cell culture, tissue engineering, microbiology, pharmaceutical research, and biotechnology. It features a 165 L chamber with adjustable CO₂ (0–20%) and O₂ (1–25%) concentrations, and a temperature range from RT+3°C to 60°C. The incubator ensures excellent temperature uniformity (≤±0.3°C) and stable gas distribution, making it ideal for sensitive biological samples.

Key Features:

Independent CO₂ and O₂ regulation for hypoxic and normoxic environments.
Microprocessor PID controller with a large touchscreen interface.
Imported infrared CO₂ sensor and high-precision O₂ sensor for accurate gas control.
Air-jacket heating system and forced-air circulation for uniform temperature and gas distribution.
UV sterilization, gas filtration, and natural humidification for contamination protection.
Automatic shutdown during door opening to conserve gas and minimize contamination.
Optional accessories include HEPA filtration, high-temperature sterilization, and additional shelves.

Specifications:

Model: LTG-103
Chamber Volume: 165 L
Temperature Range: RT +3°C to 60°C
Temperature Stability: ≤ ±0.2°C
CO₂ Range: 0–20%, Control Accuracy: ±0.1%
O₂ Range: 1–25%, Control Accuracy: ±0.1%
Heating System: Air Jacket
Display: Large Touchscreen LCD
Chamber Material: Polished 316 Stainless Steel
Exterior Material: Powder-Coated Steel
Power Supply: AC220V, 50Hz, Power Rating: 900 W
Safety Features: Automatic gas/heating shutdown, alarms, leakage protection

Applications: Suitable for mammalian cell culture, stem cell research, IVF, microbiology, pharmaceutical and biotechnology research, and clinical diagnostics requiring precise gas and temperature regulation.

Optional Accessories: HEPA filter, high-temperature sterilization system, pressure-reducing regulator valve, additional shelves.

Catalog excerpts

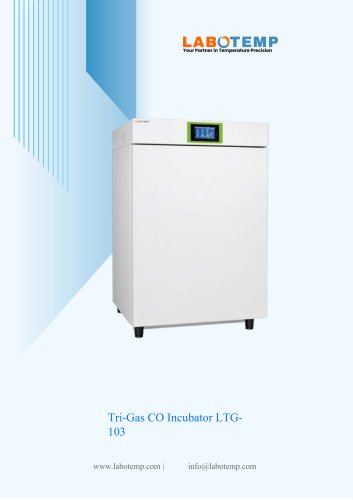

Tri-Gas CO Incubator LTG103 www.labotemp.com |

Open the catalog to page 1

Description: Labotemp Tri-Gas CO₂ Incubator LTG-103 is an advanced CO₂ Incubator with O₂ Control designed to provide a precisely regulated environment for cell culture, tissue engineering, microbiology, pharmaceutical research, and biotechnology applications. Featuring a spacious 165 L chamber, adjustable CO₂ concentration from 0–20%, O₂ control from 1–25%, and a temperature range of RT+3°C to 60°C, it enables researchers to simulate normoxic and hypoxic conditions for demanding laboratory studies. The polished 316 stainless steel chamber, airjacket heating system, and forced-air circulation...

Open the catalog to page 2

automatic gas shutoff, and comprehensive alarm systems enhance sample safety.

Open the catalog to page 3

1–25% O₂ Control Independent CO₂ (0–20%) and O₂ (1–25%) control for hypoxic and normoxic culture environments. Microprocessor PID controller with large touchscreen interface. Imported infrared CO₂ sensor for high-accuracy gas regulation. High-precision O₂ sensor for stable oxygen concentration control. Air-jacket heating system ensures excellent temperature stability and uniformity. Forced-air circulation provides uniform temperature and gas distribution. Polished 316 stainless steel chamber for corrosion resistance and easy cleaning. Powder-coated steel exterior for long-term durability. Automatic...

Open the catalog to page 5

HEPA filter HTS (High Temperature Sterilization) Pressure reducing regulator valve Additional shelves Your Partner in Temperature Precision 144 E, Midwest Avenue, Casper WY 82601, USA Website: www.labotemp.com | Email: [email protected]

Open the catalog to page 6
