Vacuum Freeze Dryer LFD-201

Vacuum Freeze Dryer LFD-201

Product catalog summary

Description: The Labotemp Vacuum Freeze Dryer LFD-201 is a compact laboratory freeze dryer designed for efficient lyophilization of various samples including biological, pharmaceutical, chemical, and food. It features a 0.12 m² drying area, a −60°C cold trap, and an ultimate vacuum of 2 Pa, ensuring rapid moisture removal while preserving the integrity of heat-sensitive materials. The device is equipped with a high-efficiency SECOP compressor and hybrid refrigeration technology, making it suitable for freeze-drying vaccines, proteins, enzymes, microorganisms, plant extracts, and laboratory specimens. The transparent, corrosion-resistant chamber allows for continuous observation without disturbing the samples.

Key Features:

7-inch color touchscreen with intelligent HMI interface for real-time monitoring.
Automatic parameter storage and USB data export for workflow management and traceability.
Stainless steel KF25 vacuum connections, delayed vacuum pump start, vacuum alarm, power-failure protection, and one-touch defrost for enhanced safety and reliability.

Specifications:

Freeze-Drying Capacity: 0.12 m²
Vial Capacity: Ø12 mm - 920, Ø16 mm - 480, Ø22 mm - 260
Tray Configuration: 4 Trays (200 mm Diameter)
Cold Trap Temperature: -60°C
Water Capture Capacity: 4 kg/Batch
Standard Vacuum Degree: ≤5 Pa (No Load)
Ultimate Vacuum Degree: 2 Pa
Power Supply: AC 220 V, 50 Hz
Power Consumption: 680 W
Main Unit Dimensions: 600 × 440 × 480 mm
Shipping Dimensions: 1265 × 840 × 1295 mm
Gross Weight: 108 kg
Ambient Operating Temperature: ≤30°C
Noise Level: ≤55 dB

Applications: The LFD-201 is suitable for freeze-drying biological specimens, vaccines, proteins, enzymes, microorganisms, plant extracts, pharmaceuticals, chemicals, and food samples. It is ideal for pharmaceutical R&D, biotechnology, life science laboratories, universities, clinical research, quality control, and sample preservation workflows.

Standard Accessories: Includes a vacuum pump, 2 KF25 clamps, and 1 KF vacuum hose.

Catalog excerpts

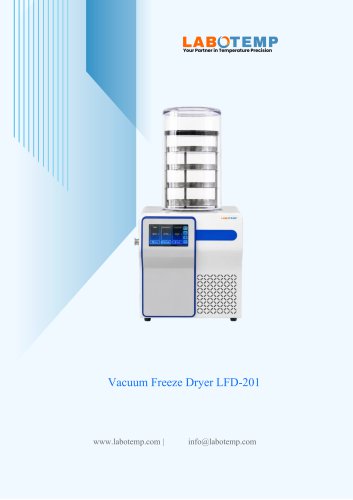

LABOTEMP Your Partner in Temperature Precision Vacuum Freeze Dryer LFD-201 www.labotemp.com | [email protected]

Open the catalog to page 1

Description: Labotemp Vacuum Freeze Dryer LFD-201 is a compact Laboratory Freeze Dryer designed for efficient lyophilization of biological, pharmaceutical, chemical, food, and research samples. This highperformance Benchtop Freeze Dryer features a 0.12 m² drying area, −60°C cold trap, and an ultimate vacuum of 2 Pa, enabling rapid moisture removal while preserving the structure, activity, and stability of heat-sensitive materials. Equipped with a high-efficiency SECOP compressor and hybrid refrigeration technology, this advanced Lyophilizer delivers reliable low-temperature performance for freezedrying...

Open the catalog to page 2

USB data export, and programmable control. □ Reliable Sample Protection: Vacuum alarms, delayed pump start, and power-failure protection enhance operational safety.

Open the catalog to page 3

Dimensions & Weight Automatic data storage with USB export for convenient data management and traceability. Delayed vacuum pump start helps extend the service life of the vacuum pump. Vacuum alarm and power-failure protection enhance operational safety. One-touch defrost function enables quick and easy chamber recovery. Transparent high-strength drying chamber allows continuous sample observation. Corrosion-resistant stainless steel vacuum pipeline improves durability and longterm reliability. Magnetic maintenance panel allows convenient cleaning and servicing. Compact benchtop design saves valuable...

Open the catalog to page 4

enzymes, microorganisms, plant extracts, pharmaceuticals, chemicals, and food samples while preserving structural integrity and bioactivity. Ideal for pharmaceutical R&D, biotechnology, life science laboratories, universities, clinical research, quality control, and sample preservation workflows requiring vacuum drying, process monitoring, and traceable data management. Vacuum Pump KF25 Clamps 2 pcs KF Vacuum Hose 1 pc Your Partner in Temperature Precision 144 E, Midwest Avenue, Casper WY 82601, USA Website: www.labotemp.com | Email: [email protected]

Open the catalog to page 5
