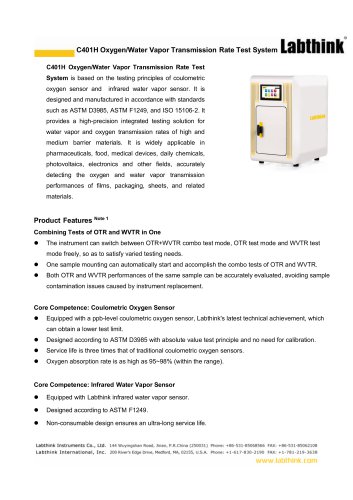

C401H Oxygen/Water Vapor Transmission Rate Test System C401H Oxygen/Water Vapor Transmission Rate Test System is based on the testing principles of coulometric oxygen sensor and infrared water vapor sensor. It is designed and manufactured in accordance with standards such as ASTM D3985, ASTM F1249, and ISO 15106-2. It provides a high-precision integrated testing solution for water vapor and oxygen transmission rates of high and medium barrier materials. It is widely applicable in pharmaceuticals, food, medical devices, daily chemicals, photovoltaics, electronics and other fields, accurately detecting the oxygen and water vapor transmission performances of films, packaging, sheets, and related materials. Combining Tests of OTR and WVTR in One • The instrument can switch between OTR+WVTR combo test mode, OTR test mode and WVTR test mode freely, so as to satisfy varied testing needs. • One sample mounting can automatically start and accomplish the combo tests of OTR and WVTR. • Both OTR and WVTR performances of the same sample can be accurately evaluated, avoiding sample contamination issues caused by instrument replacement. Core Competence: Coulometric Oxygen Sensor • Equipped with a ppb-level coulometric oxygen sensor, Labthink's latest technical achievement, which can obtain a lower test limit. • Designed according to ASTM D3985 with absolute value test principle and no need for calibration. • Service life is three times that of traditional coulometric oxygen sensors. • Oxygen absorption rate is as high as 95~98% (within the range). Core Competence: Infrared Water Vapor Sensor • Equipped with Labthink infrared water vapor sensor. • Designed according to ASTM F1249. • Non-consumable design ensures an ultra-long service life. Labthink Instruments Co,, Ltd. 144 Wuyingshan Rwtd, Jirtin, P.R.China (250031) Phont; + 06-531-85060566 FAXr +06-531-05062100 Labthink International, Inc. 200 Rivers Edge Drive, Nedfcnl, HA, 0215$, u.S.a. Phone: +I-617-S30-2190 RUC: +1-751-II9-3638

• Features over-limit alarm and automatic protection functions. Multi-dimensional Temperature and Humidity Control for Precise Data • 360° airflow circulation constant temperature technology ensures superior temperature stability. • Automated control of carrier gas flow and temperature during testing ensures higher accuracy. • The NIST-standard humidity generation principle is applied for constant humidity. • Equipped with high-precision temperature and humidity sensors and control systems for real-time monitoring and recording of temperature and humidity changes. • The system can achieve higher...

• Complies with GMP requirements for data traceability, meeting the needs of the pharmaceutical industry (optional). • DataShield™ Data Shield System facilitates centralized data management and integration with information system (optional). • Variable frequency control technology is applied to achieve low-power system operation. • Low-energy-consumption components from world-renowned brands ensure stable and reliable performance. • Computer is not a must; the instrument can independently complete the entire testing process. • Without a professional constant temperature laboratory, stable test...

Packaging Caps Solar Backsheet Medical Blisters Sterile Wound Dressings, Medical Plasters Battery Housings Oxygen and water vapor transmission rate tests for sheet materials such as PP sheets, PVC sheets, PVDC sheets, metal foil sheets, rubber sheets, and silicon wafers. Oxygen and water vapor permeability tests of the caps of various packaging. Oxygen and water vapor permeability tests of liquid crystal displays and related films. Oxygen and water vapor permeability tests for solar backsheets and related materials. Oxygen and water vapor permeability tests for PPR pipes and pipes made of various...

Humidity Range ExtendedFunctions °C GP-02 Gas Purification Device DataShield™1 Note 3 GMP Computer System Requirements Table 2: Technical SpecificationsTest Cells One set for film and one set for container Test Area 99.999% high-purity nitrogen (gas source is to be provided by the user) Port Size 1/8” metal pipe Power Supply ^ For users with special needs, our company can provide customized production within our capabilities to meet their needs. Table 3: Product ConfigurationStandard Configuration Optional Parts Note Instrument host, sampler, vacuum grease, 04 GP-02, software, computer, GMP computer...

550 KPa); the air source is to be provided by the user. Note 1: All product specifications shall be subject to the exact markings in the "Technical Parameters" table. Note 2: All parameters in the table were measured by professional operators at Labthink Laboratory in compliance with relevant laboratory environmental standards and conditions. Note 3: The DataShield™ Data Shield System provides secure and reliable data application support. This system can be shared by multiple Labthink products. Please purchase optionally as needed. ^ Labthink is committed to continuously innovating and enhancing...
