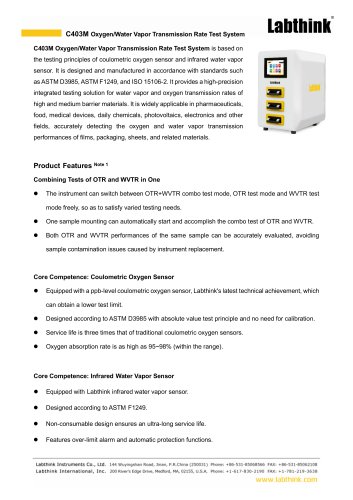

C403M Oxygen/Water Vapor Transmission Rate Test System C403M Oxygen/Water Vapor Transmission Rate Test System is based on the testing principles of coulometric oxygen sensor and infrared water vapor sensor. It is designed and manufactured in accordance with standards such as ASTM D3985, ASTM F1249, and ISO 15106-2. It provides a high-precision integrated testing solution for water vapor and oxygen transmission rates of high and medium barrier materials. It is widely applicable in pharmaceuticals, food, medical devices, daily chemicals, photovoltaics, electronics and other fields, accurately detecting the oxygen and water vapor transmission performances of films, packaging, sheets, and related materials. Combining Tests of OTR and WVTR in One • The instrument can switch between OTR+WVTR combo test mode, OTR test mode and WVTR test mode freely, so as to satisfy varied testing needs. • One sample mounting can automatically start and accomplish the combo test of OTR and WVTR. • Both OTR and WVTR performances of the same sample can be accurately evaluated, avoiding sample contamination issues caused by instrument replacement. Core Competence: Coulometric Oxygen Sensor • Equipped with a ppb-level coulometric oxygen sensor, Labthink's latest technical achievement, which can obtain a lower test limit. • Designed according to ASTM D3985 with absolute value test principle and no need for calibration. • Service life is three times that of traditional coulometric oxygen sensors. • Oxygen absorption rate is as high as 95~98% (within the range). Core Competence: Infrared Water Vapor Sensor • Equipped with Labthink infrared water vapor sensor. • Designed according to ASTM F1249. • Non-consumable design ensures an ultra-long service life. • Features over-limit alarm and automatic protection functions. Labthink Instruments Co,, Ltd. 144 Wnyin(j5har RmiI, Jinan, P.R.China (2500311 Phone; +06-531-85058566 FAX; +06-531-05062100 Labtlh ink InternationalrInc. 200 River's Edge Drive, Medford, MA, 02155, U.S.A. Pfione: +1-617-830-2190 FAX: +1-7&1-219-3638

Multi-dimensional Temperature and Humidity Control for Precise Data • 360° airflow circulation constant temperature technology ensures superior temperature stability. • Automated control of carrier gas flow and temperature during testing ensures higher accuracy. • The NIST-standard humidity generation principle is applied for constant humidity. • Equipped with high-precision temperature and humidity sensors and control systems for real-time monitoring and recording of temperature and humidity changes. • Equipped with Labthink's independently developed gas purification system to remove trace oxygen...

several instrument hosts (optional). • Centralized platform-based management of test data. • Real-time display of transmission rate curves, transmission coefficient curves, temperature curves, and humidity curves. • Professional test mode provides flexible and comprehensive control functions to satisfy scientific research needs. • Complies with GMP requirements for data traceability, meeting the needs of the pharmaceutical industry (optional). • DataShield™ Data Shield System facilitates centralized data management and integration with information system (optional). Low-carbon and Energy-saving,...

Applications Packaging Packaging Caps Solar Backsheet Labthink Extended Medical Blisters Vehicle Fuel Tank Battery Housings Oxygen and water vapor transmission rate tests of various plastic films, plastic composite films, paper-plastic composite films, coextruded films, metalized films, aluminum foil composite films, glass fiber aluminum foil paper composite films, and other film materials. Oxygen and water vapor transmission rate tests of bottles, pouches, cans, boxes, and barrels made of plastic, rubber, paper, paper-plastic composite, glass, and metal, including pharmaceutical packaging, wine...

Test Range Resolution Repeatability Temp. Range Temp. Fluctuation Humidity Range cc/(m2-day) 0.0001 GP-02 Gas Purification Device Optional Extended DataShield™ Data Shield Note 3 Optional Functions GMP Computer System Requirements Optional ^ For users with special requirements, our company can provide customized production within our capabilities to meet their needs. Test Cells Sample Size Test Area Gas Specification 99.999% nitrogen and 99.5% oxygen (gas source is to be provided by the user) Port Size Power Source Labthink Instruments Co., Ltd. 144 Wnyin(j5Fiar Road, Jinan, P.R.China (2500311...

Table 3: Product Configuration Standard Instrument host, sampler, vacuum grease, 04 mm polyurethane tube GP-02, software, computer, GMP computer system requirements, CFR 21 Part 11, Optional Parts air compressor, DataShield™ Data Shield Note 3 The compressed air inlet of this instrument is a $4 mm polyurethane pipe (pressure > 79.7 PSI / 550 KPa); the air source is to be provided by the user. Note 1: All product specifications shall be subject to the exact markings in the "Technical Parameters" table. Note 2: All parameters in the table were measured by professional operators at Labthink Laboratory...
