- MGE-DPD33 Multifunction Electric Obstetric Gynecological Table
MGE-DPD33 Multifunction Electric Obstetric Gynecological Table
MGE-DPD33 Multifunction Electric Obstetric Gynecological Table
- Foot-Controlled Electric Adjustment: Allows for motor-driven height, backrest, and seat-section movements.
- Removable Auxiliary Platform: Provides adaptability for different clinical setups.
- Stainless-Steel Waste Basin: Standard for fluid collection.
- Height Range: 610–860 mm, with ±20 mm per endpoint.
- Backrest Adjustment: 75° up / 5° down, with ±2° each direction.
- Seat Adjustment: 15° up / 0° down, with ±2° up.
- Standard Foot Controller: For hands-free electric adjustment.
- Stirrup-Style Leg Supports: For clinical positioning.
- Seamless Molded Mattress: One-piece design for easier cleaning.
- Standard Configuration: Includes main table, auxiliary platform, arm boards, leg supports, waste basin, hand grips, foot controller, power cord, and documents.
- Optional Configuration: Handheld controller and other accessories available upon confirmation.
- Operating Conditions: Ambient temperature 10–40°C, relative humidity 10–90%, atmospheric pressure 50–106 kPa.
- Packaging: Shipped in a wooden case with dimensions 1.53 × 0.93 × 0.98 m, total gross weight 206 kg.
- Overall Length: 1900 ± 20 mm.
- Tabletop Width: 700 ± 20 mm.
- Height Adjustment: 250 ± 20 mm, electric.
- Power Supply: AC 100–240 V, 50/60 Hz.
- Control System: Foot control standard, handheld optional.
Catalog excerpts

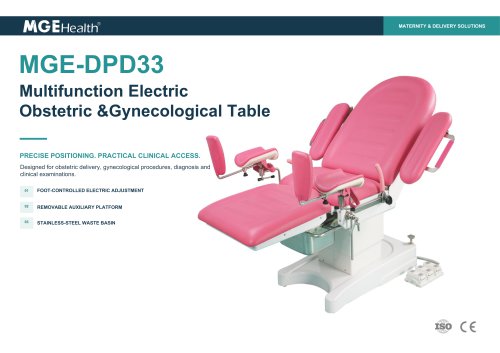

MG E Health* MATERNITY & DELIVERY SOLUTIONS MG E Health* MATERNITY & DELIVERY SOLUTIONS MGE-DPD33Multifunction Electric Obstetric &Gynecological TablePRECISE POSITIONING. PRACTICAL CLINICAL ACCESS. Designed for obstetric delivery, gynecological procedures, diagnosis and clinical examinations. 01 FOOT-CONTROLLED ELECTRIC ADJUSTMENT 02 REMOVABLE AUXILIARY PLATFORM 03 STAINLESS-STEEL WASTE BASIN
Open the catalog to page 1
CLINICAL DESIGN & FUNCTIONALITY Designed for obstetric and gynecological workflows A versatile table integrating powered positioning, practical support sections and accessible controls. Electric positioning Hands-free control Motor-driven height, backrest and seat-section movements. Foot control is standard; a handheld controller is optional. OBSTETRIC / GYNECOLOGICAL CONFIGURATION Adaptable auxiliary platform Integrated patient supports Plug-in removable platform for different clinical setups. Stirrup-style leg supports, paired arm boards and a waste basin. A compact platform for delivery, examination...
Open the catalog to page 2
POSITIONING & ELECTRIC CONTROL Controlled electric adjustments Powered height, backrest and seat movements operated through the supplied foot controller. ELECTRIC BACKREST ADJUSTMENT FLAT / EXAMINATION CONFIGURATION HEIGHT RANGE HEIGHT TRAVEL Electrically adjustable FOOT CONTROLLER INCLUDED MEDIGE INTERNATIONAL INDUSTRIES CO., LTD. Electric height lift • Backrest elevation/lowering • Seat-section adjustment
Open the catalog to page 3
COMPONENT DETAILS Functional components & construction details Real product photographs of standard supplied components and materials. Stainless-Steel Waste Basin Standard Foot Controller Manual-Brake Base Standard basin for fluid collection Hands-free electric adjustment Stable positioning with manual brake Seamless Molded Mattress Paired supports for clinical positioning One-piece design for easier cleaning Left and right boards supplied MEDIGE INTERNATIONAL INDUSTRIES CO., LTD.
Open the catalog to page 4
CONFIGURATION & PROCUREMENT Standard configuration & project information Equipment supplied as standard, optional controls, operating environment and packaging details. STANDARD CONFIGURATION OPERATING & STORAGE CONDITIONS Main Table Plug-in Auxiliary Platform Stainless-Steel Waste Basin Hand Grips / Locking Bases Foot Controller Power Cord / Documents PARAMETER OPERATING STORAGE Humidity: non-condensing. For indoor clinical use; protect from impact, rain and moisture in transport/storage. PACKAGING & SHIPPING OPTIONAL CONFIGURATION Handheld controller; other project-specific accessories after...
Open the catalog to page 5
TECHNICAL SPECIFICATIONS Technical specifications — dimensions & movements Specification values and tolerances follow MGE-DPD33 Technical Specification V1.0. DIMENSIONS & BACKREST SEAT, ELECTRICAL & CONTROL Overall Length Tabletop Width Seat Section — Down Table Height Range Electric Movements Height / backrest / seat Height Adjustment Drive System Electric actuator / motor Auxiliary Platform Size Power Supply Power Plug Backrest — Down Control System Foot; handheld optional PRODUCT DESIGN Metal column with powder-coated finish • High-strength ABS anti-glare base cover • One-piece seamless mattress...
